Navigation Antenna Replacement

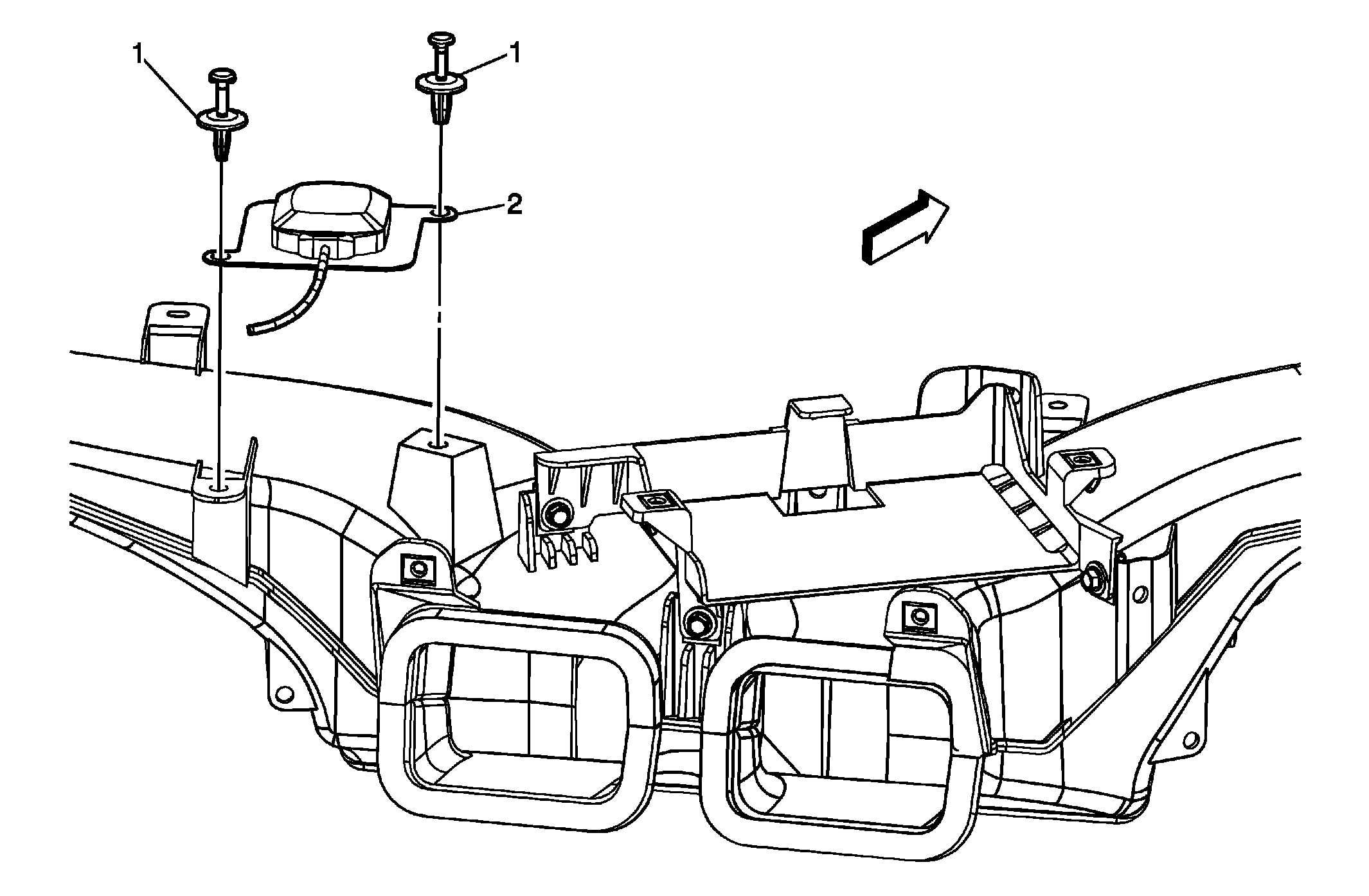

Fig 1: View Of Navigation Antenna
GM1674664Courtesy of GENERAL MOTORS COMPANY
Navigation Antenna Replacement

Callout Component Name
Preliminary Procedure
Remove the air distribution duct. Refer to Air Distributor Duct Replacement .
1 Remove Navigational/Mobile Telephone Antenna Fasteners
TIP:  Use a flat-bladed tool to release center locking pin.
2 Navigational/Mobile Telephone Antenna
