Removal Procedure

  1. Position the foldable top in the down position.
  2. Position the tonneau cover in the up position.

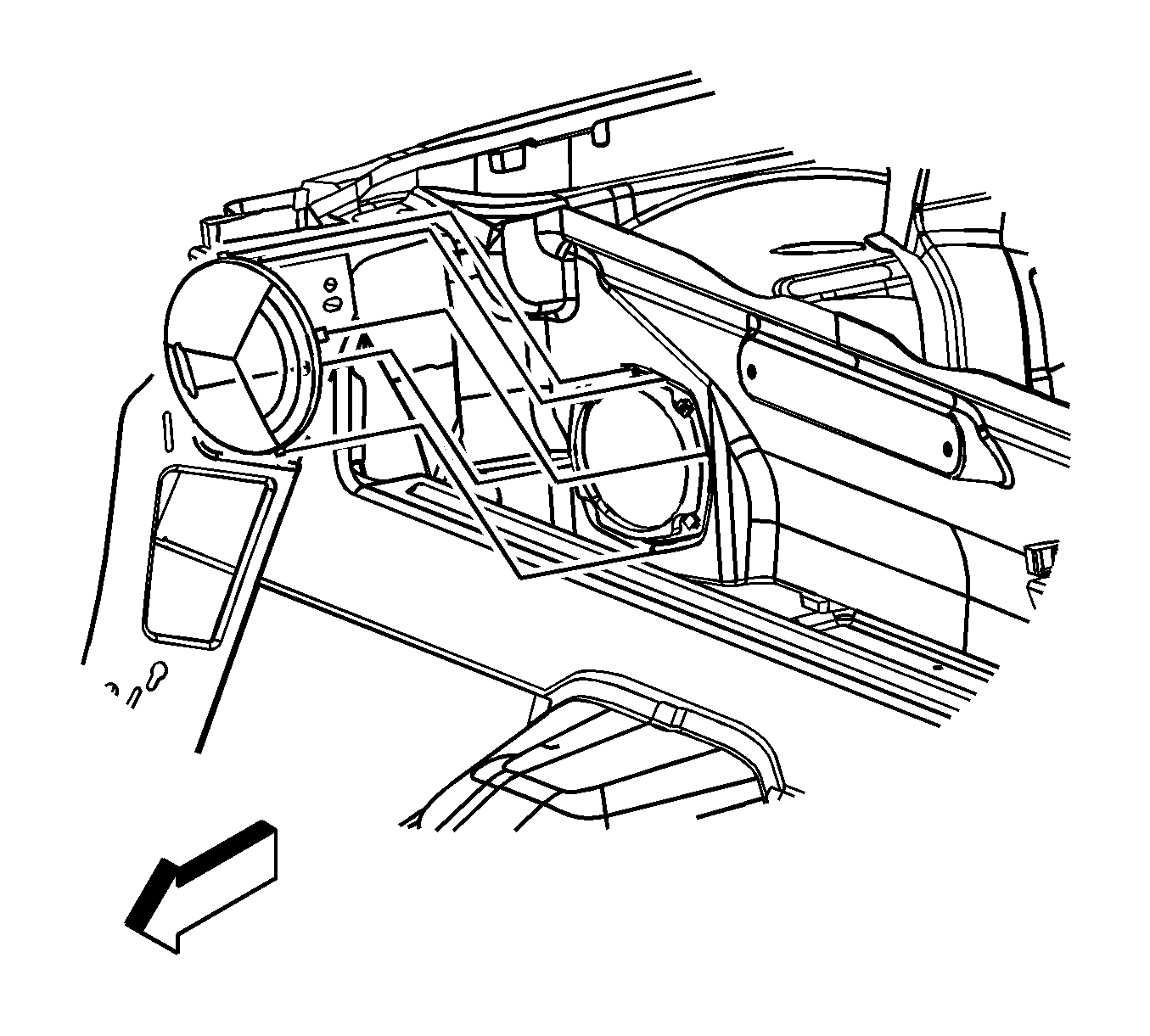

    3. Fig 1: Locating Speaker Cover
    GM1517924Courtesy of GENERAL MOTORS COMPANY
  3. Grasp the speaker cover and firmly pull outward removing the speaker grill from the trim panel.

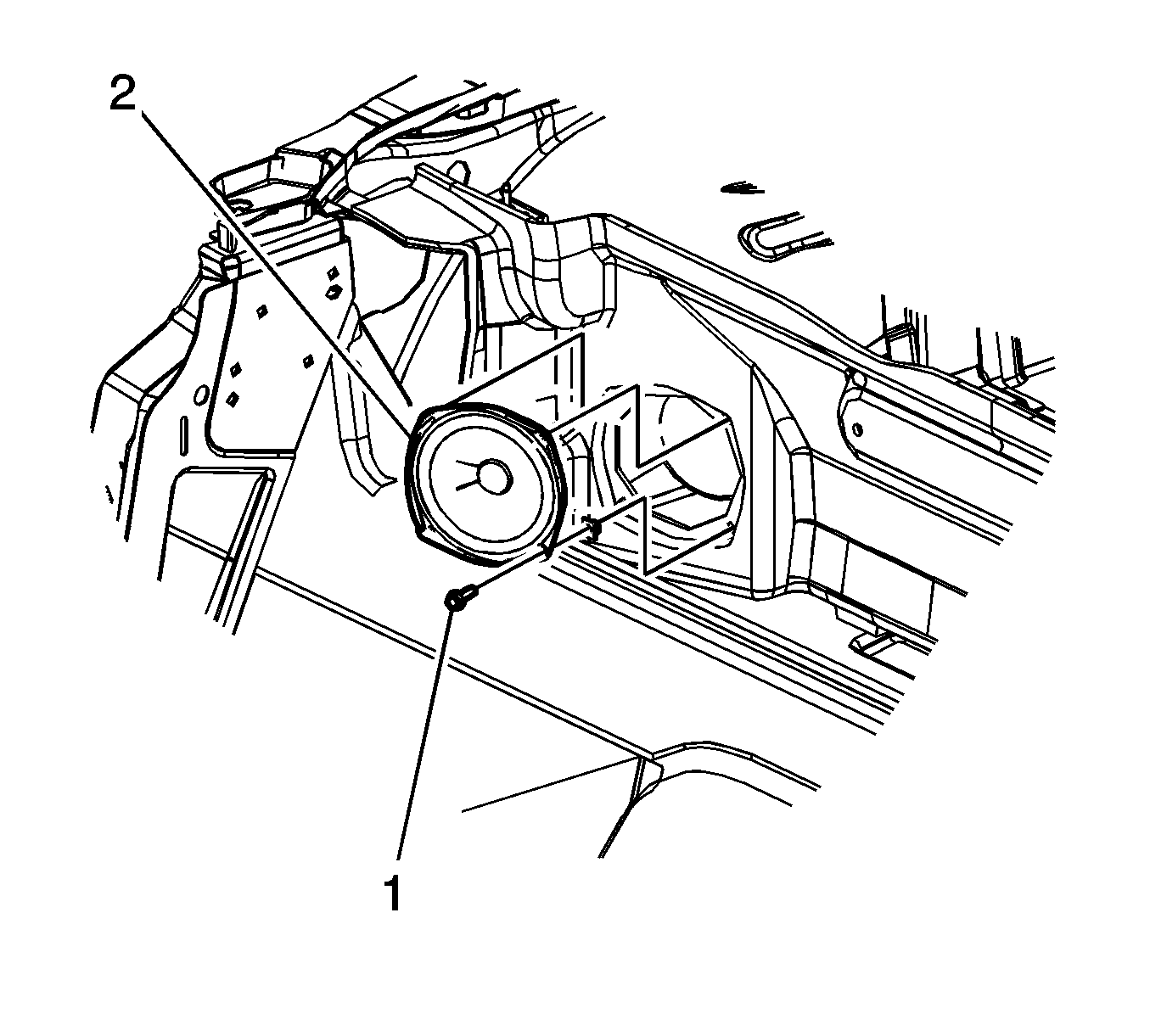

    4. Fig 2: View Of Speaker
    GM1504009Courtesy of GENERAL MOTORS COMPANY
  4. Remove the screws (1) securing the speaker to the trim panel.
  5. Disconnect the electrical connector from the speaker.
  6. Remove the speaker (2) from the car.
