Antennas (except U2K)

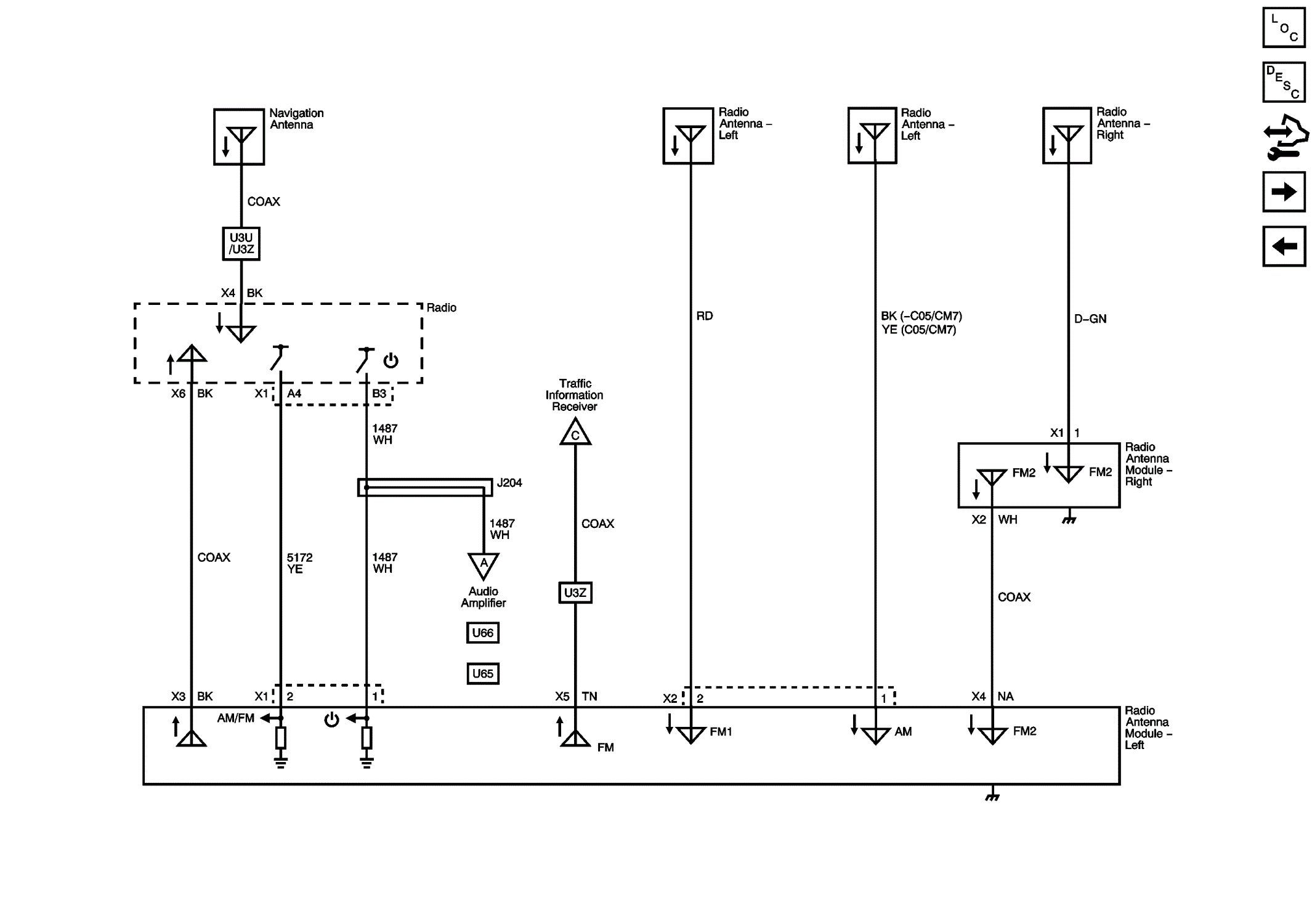

Fig 1: Antennas Wiring Schematic (except U2K)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
