Satellite Radio (U2K)

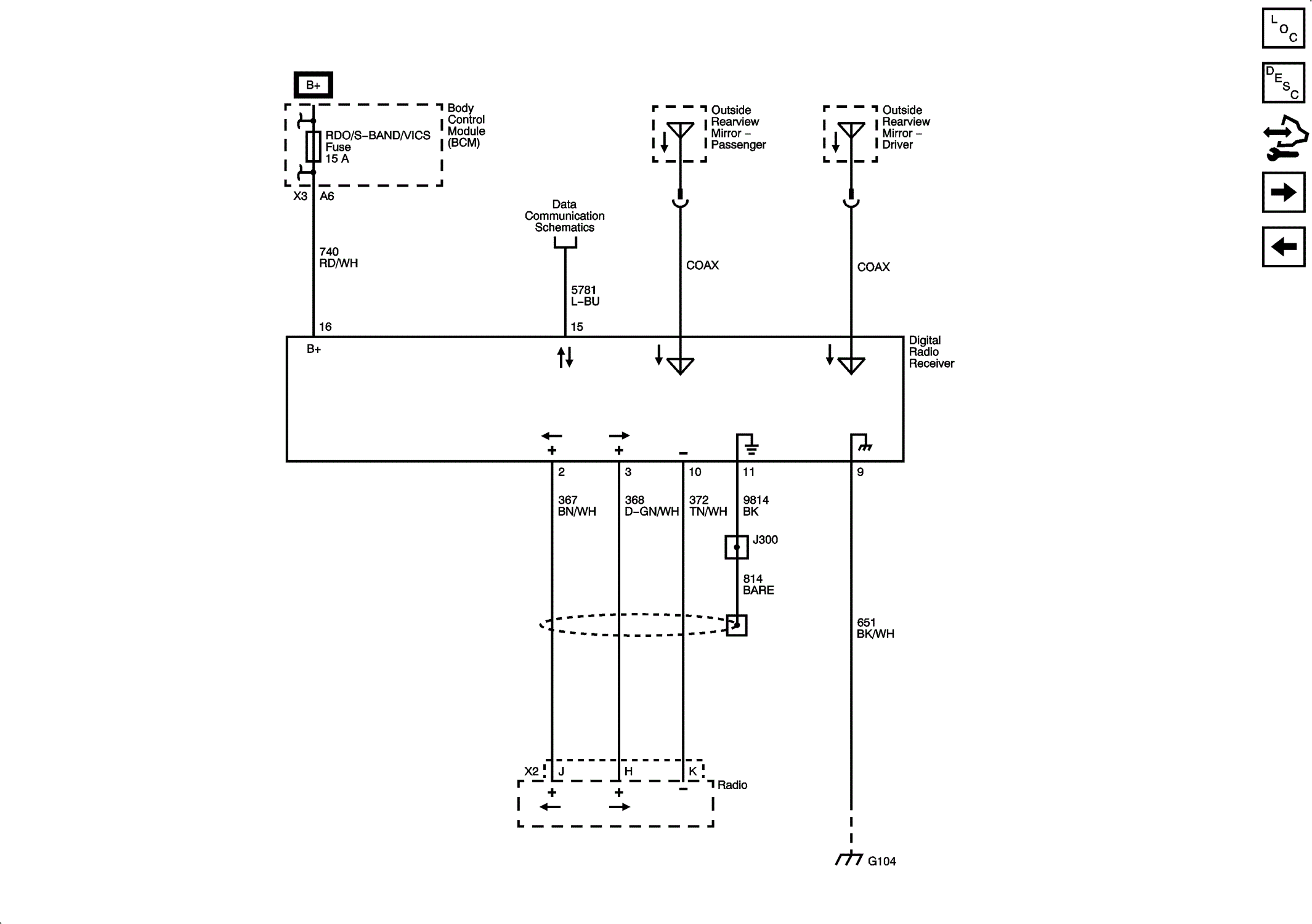

Fig 1: Satellite Radio Wiring Schematic (U2K)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
