Windshield Washer Solvent Level Switch Replacement

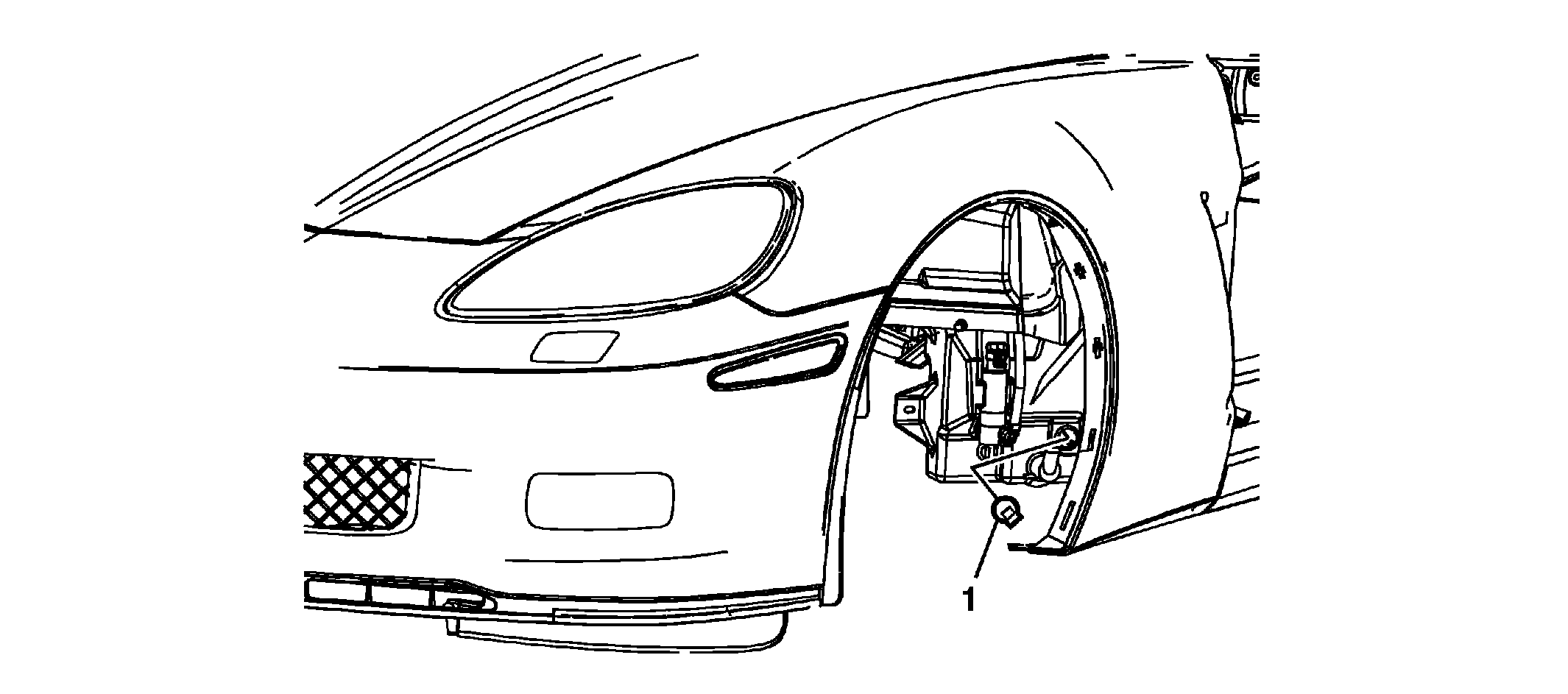

Fig 1: Washer Solvent Container Level Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the rear portion of the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Rear Liner) , Front Wheelhouse Liner Replacement (Front Liner) . Drain the washer solvent into a suitable container. Disconnect the electrical connector from the level sensor indicator. Using two flat-bladed tools, gently pry the level sensor indicator from the washer container. Discard the grommet.
1	Windshield Washer Level Sensor Indicator TIP: Replace and lubricate the new grommet with pure windshield washer solvent fluid prior to installing the new level indicator into the container.

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the rear portion of the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Rear Liner) , Front Wheelhouse Liner Replacement (Front Liner) .
Drain the washer solvent into a suitable container.
Disconnect the electrical connector from the level sensor indicator.
Using two flat-bladed tools, gently pry the level sensor indicator from the washer container.
Discard the grommet.

Windshield Washer Level Sensor Indicator
TIP: Replace and lubricate the new grommet with pure windshield washer solvent fluid prior to installing the new level indicator into the container.
