Windshield Wiper Arm Replacement
Windshield Wiper Arm Replacement

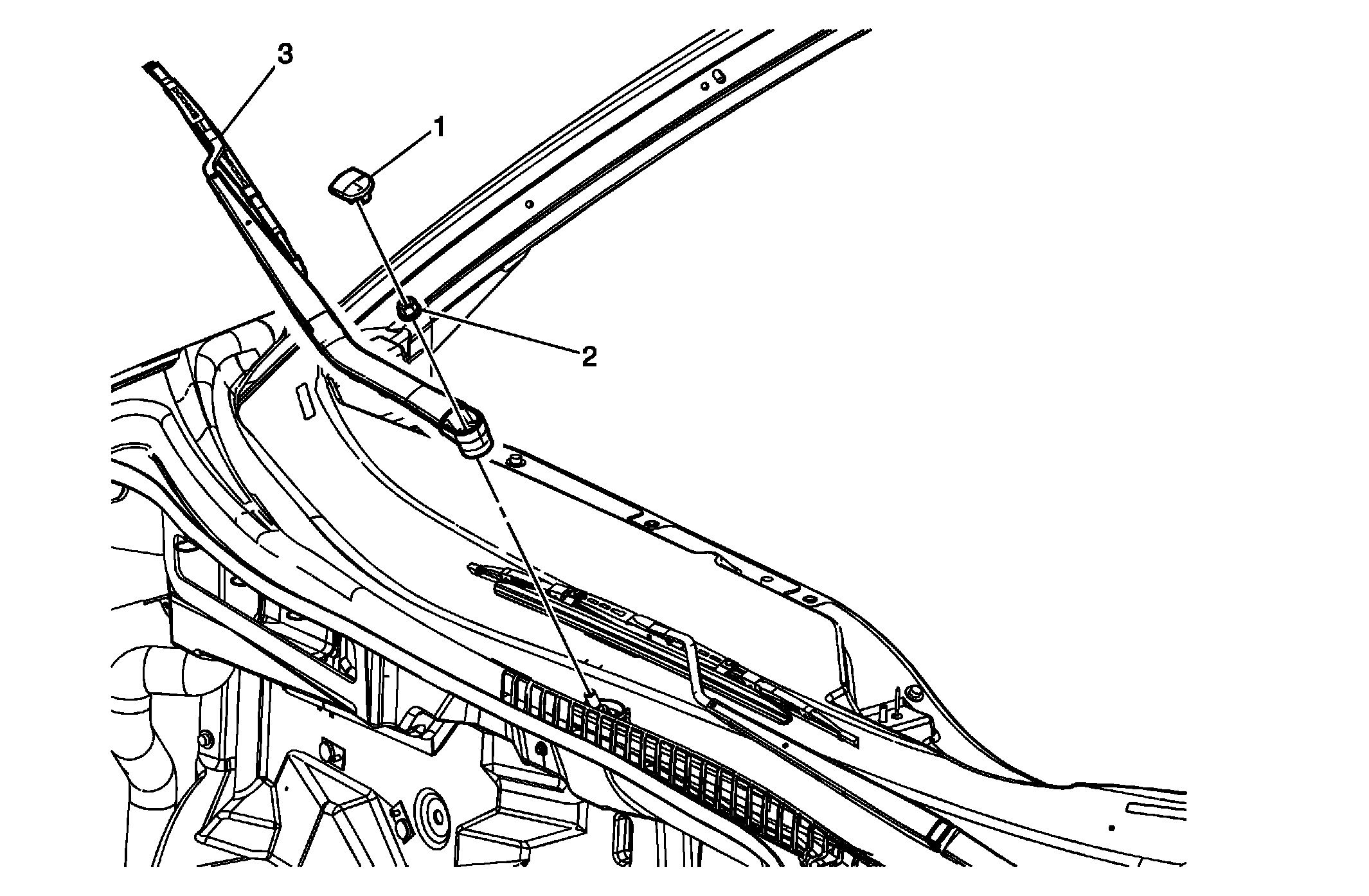

| Callout | Component Name |
|---|---|
| Preliminary Procedure Open the hood in order to access and service the windshield wiper arms. |
|
| 1 | Windshield Wiper Transmission Nut Cap |
| 2 | Windshield Wiper Arm Nut
CAUTION:
Refer to Fastener Caution . TIP: Hold the wiper blade tip to the alignment marks on the windshield while torquing the wiper arm nut to specification. Tighten 24 N.m (18 lb in) |
| 3 | Windshield Wiper Arm Assembly TIP: Remove the wiper arm blade. Refer to Windshield Wiper Blade Replacement . |
