Ignition and Start Switch Replacement

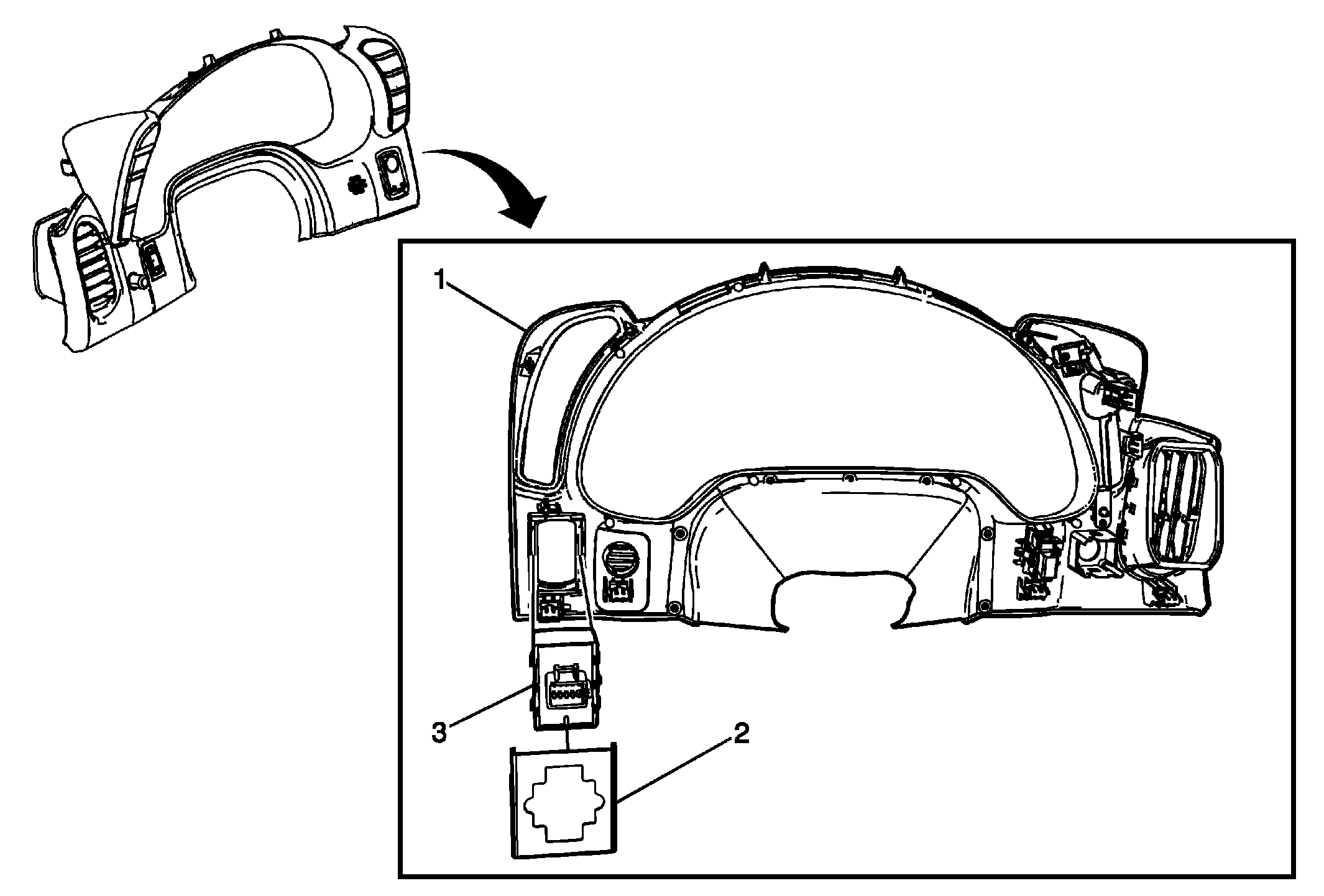

Fig 1: View Of Instrument Panel Cluster Trim Plate, Trim Plate Clip & Ignition & Start Switch
GM2033914Courtesy of GENERAL MOTORS COMPANY
Ignition and Start Switch Replacement

Callout Component Name
1 Instrument Panel Cluster Trim Plate
Refer to Instrument Cluster Trim Panel Replacement .
2 Instrument Panel Cluster Trim Plate Clip
3 Ignition and Start Switch
TIP:  Use a flat-bladed tool in order to release the switch from the trim plate.
