Generator Replacement (LS9)

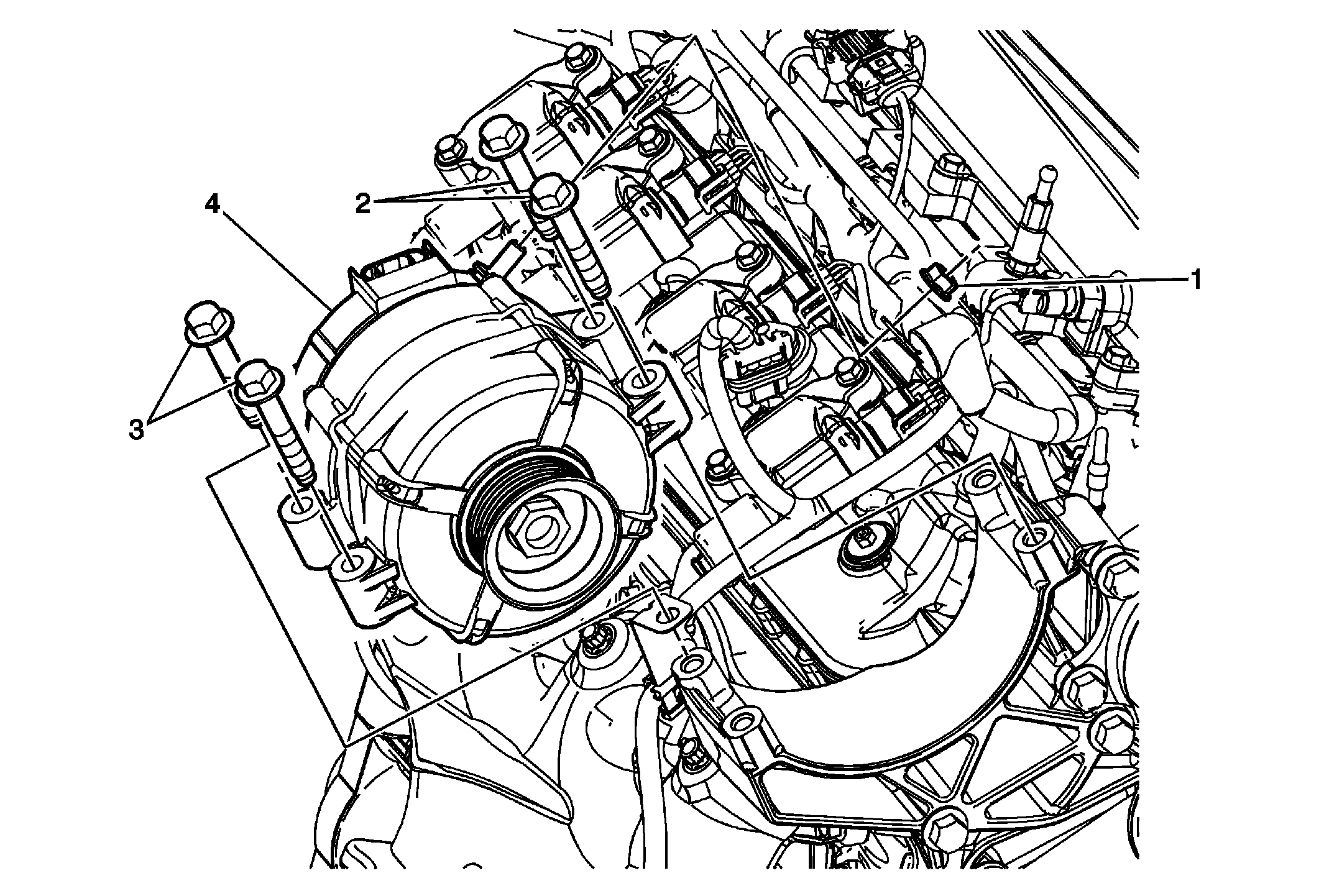

Fig 1: Identifying Generator & Mounting Components

Courtesy of GENERAL MOTORS COMPANY

Culotte	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (LS7 or LS9) , Battery Negative Cable Disconnection and Connection (LS3) . Remove the drive belt. Refer to Drive Belt Replacement - Accessory (LS9) , Drive Belt Replacement - Accessory (w/o LS9) .
1	Nut CAUTION: Refer to Fastener Caution . Tighten 13 N.m (115 lb in)
2	Bolt (Qty: 2) Tighten 50 N.m (37 lb ft)
3	Bolt (Qty: 2) Tighten 50 N.m (37 lb ft) TIP: Align the generator harness bracket with the rear bolt hole on the generator prior to bolt installation.
4	Generator Procedure Disconnect the generator field harness connector.
