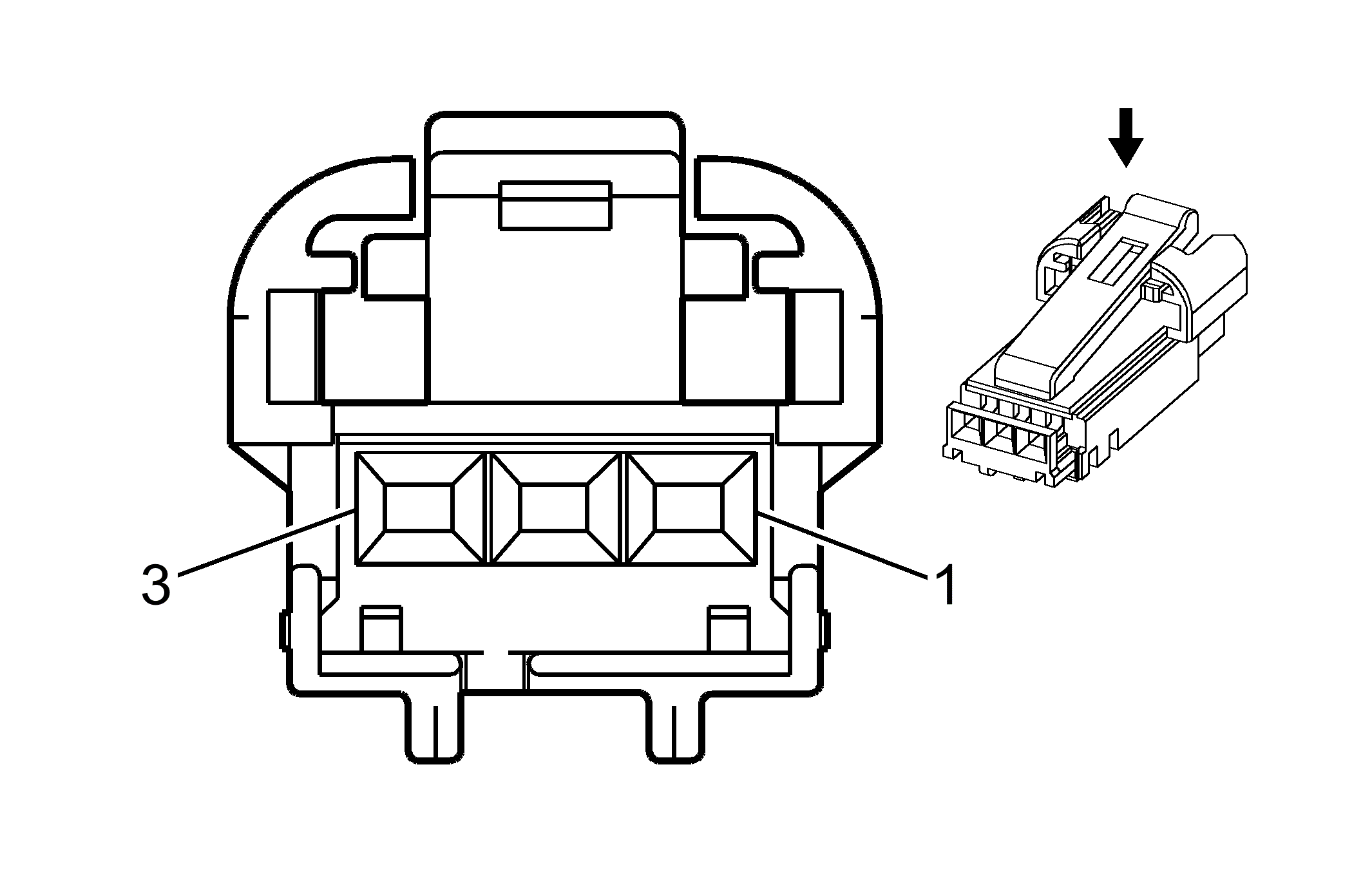

Automatic Transmission Manual Shift Switch - Right (MYC)

Courtesy of GENERAL MOTORS COMPANY

Connector Part Information Harness Type: Steering Wheel OEM Connector: 31067-1012 Service Connector: Service by Harness- See Part Catalog Description: 3-Way F H-DAC 64 Series (BN)

Terminal Part Information Terminated Lead: Service by Harness- See Part Catalog Release Tool: Pending Diagnostic Test Probe: Pending Terminal/Tray: Not Available Core/Insulation Crimp: Not Available

Automatic Transmission Manual Shift Switch - Right (MYC)

Pin	Wire	Circuit	Function
1	0.35 TN	2664	Tap Down Switch Output
2	0.35 PK	1039	Run/Crank Ignition 1 Voltage
3	0.35 PU	2663	Tap UP Switch Output
