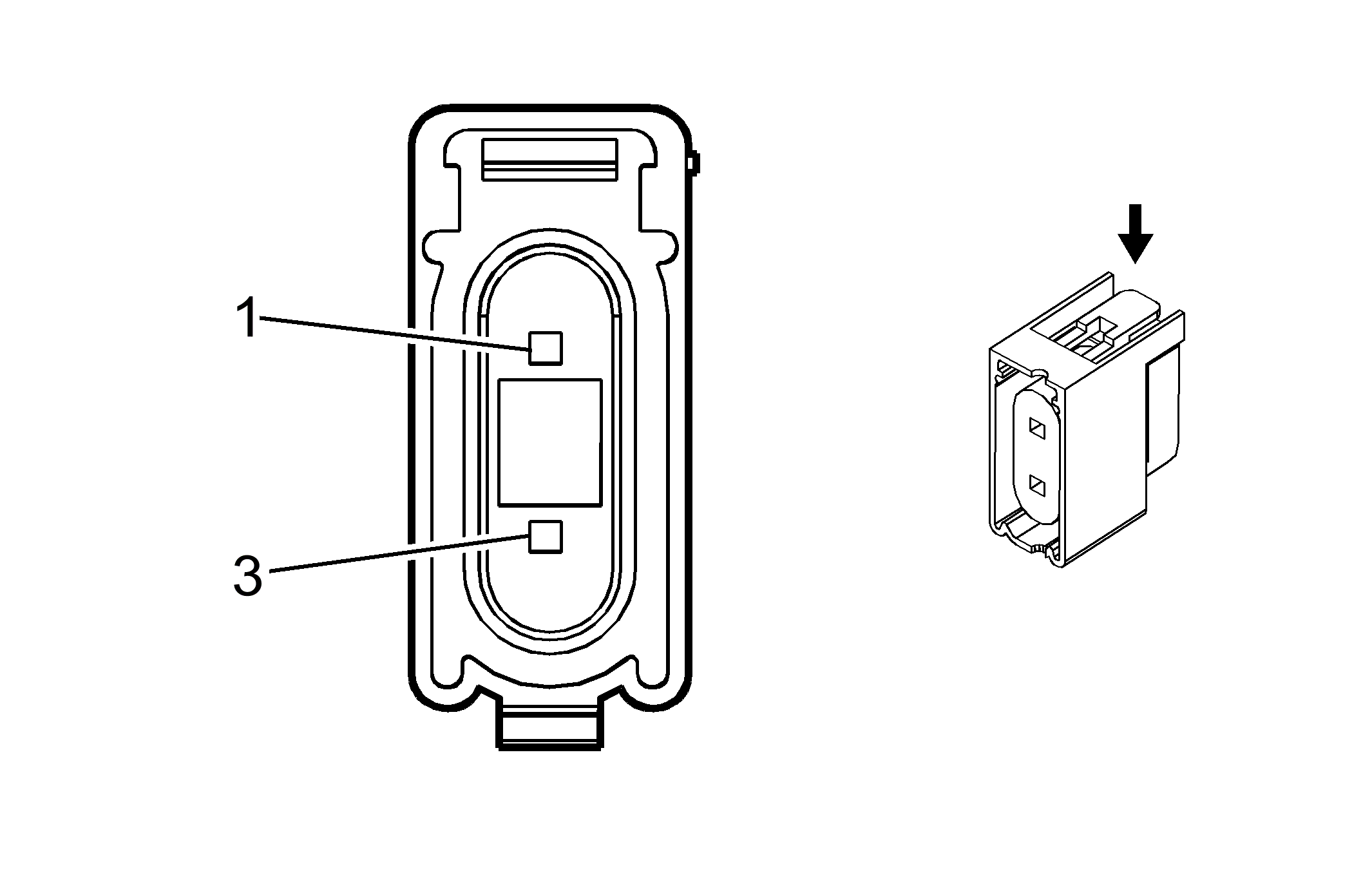

Backup Lamp - Left

GM1635370Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Rear Body
  • OEM Connector: ZFJ-00702-UA
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 3-Way F Axial 2-Wire Connector Assembly (GN)
Terminal Part Information
  • Terminated Lead: Service by Harness - See Part Catalog
  • Release Tool: J-38125-11A
  • Diagnostic Test Probe: J-35616-2A (GY)
  • Terminal/Tray: 7116-4102-08/9
  • Core/Insulation Crimp: E/1
Backup Lamp - Left

Pin Wire Circuit Function
1 0.5 BK 750 Ground
2 - - Not Available
3 0.5 L-GN 24 Backup Lamp Supply Voltage
