Backup Lamp Switch (MN6)

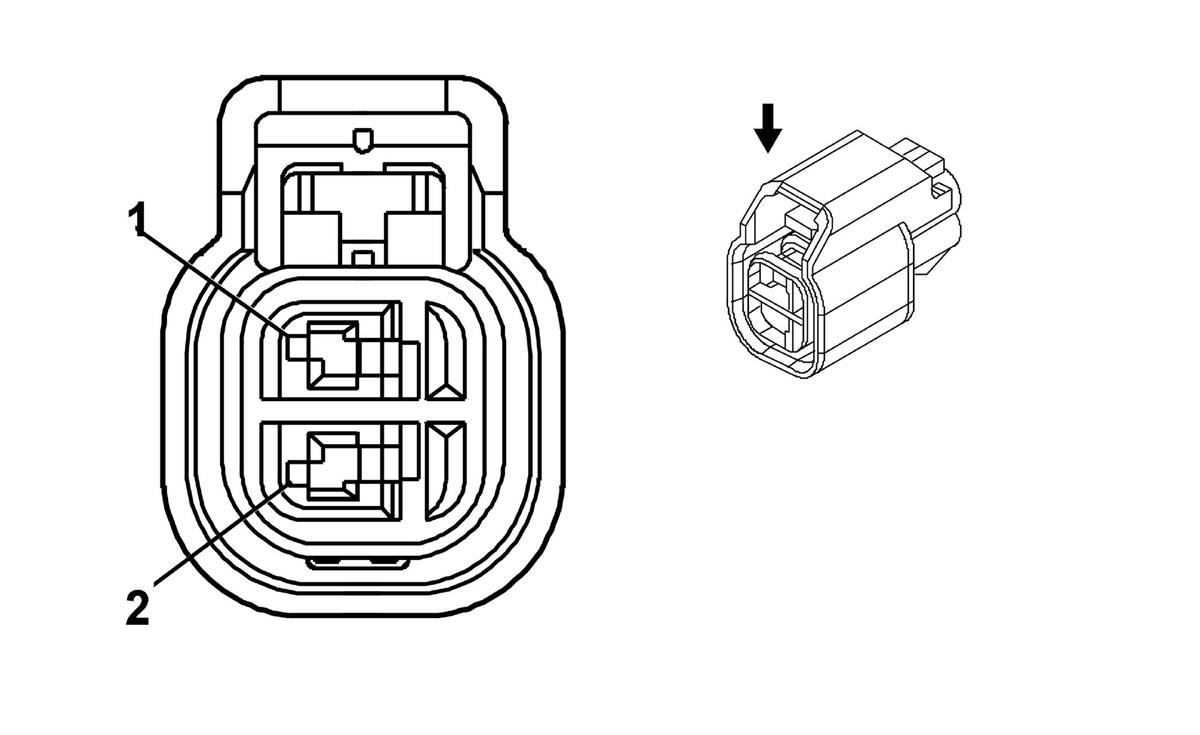

GM1283850Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Transmission
  • OEM Connector: E-3550-000
  • Service Connector: 89046838
  • Description: 2-Way F 1.5 Series, Sealed (BK)
Terminal Part Information
  • Terminated Lead: Service by Connector Assembly - 89046838
  • Release Tool: J-38125-11A
  • Diagnostic Test Probe: J-35616-2A (GY)
  • Terminal/Tray: 7116-4102-08/9
  • Core/Insulation Crimp: E/1
Backup Lamp Switch (MN6)

Pin Wire Circuit Function
1 0.35 L-GN 5007 Backup Lamp Switch Signal (T79)
0.35 L-BU 2182 Reverse Lamp Relay Control
2 0.35 D-BU 75 Reverse Switch Control
