Hazard Warning Switch

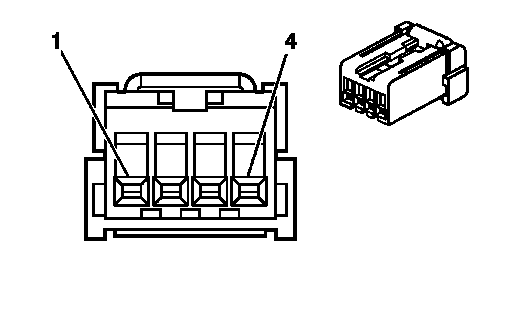

GM814536Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 174966-2
  • Service Connector: 88953314
  • Description: 4-Way F 040 Multilock Series (BK)
Terminal Part Information
  • Terminated Lead: 13580049
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-16 (L-GN)
  • Terminal/Tray: 173681-2/17
  • Core/Insulation Crimp: E/4
Hazard Warning Switch

Pin Wire Circuit Function
1 0.35 TN 2144 Hazard Switch Signal
2 0.35 BK 1450 Ground
3 0.35 GY/BK 1458 Instrument Panel Lamp Supply Voltage
4 0.35 BN 27 Hazard Flasher Signal
