Fuel Injector Replacement
Fuel Injector Replacement

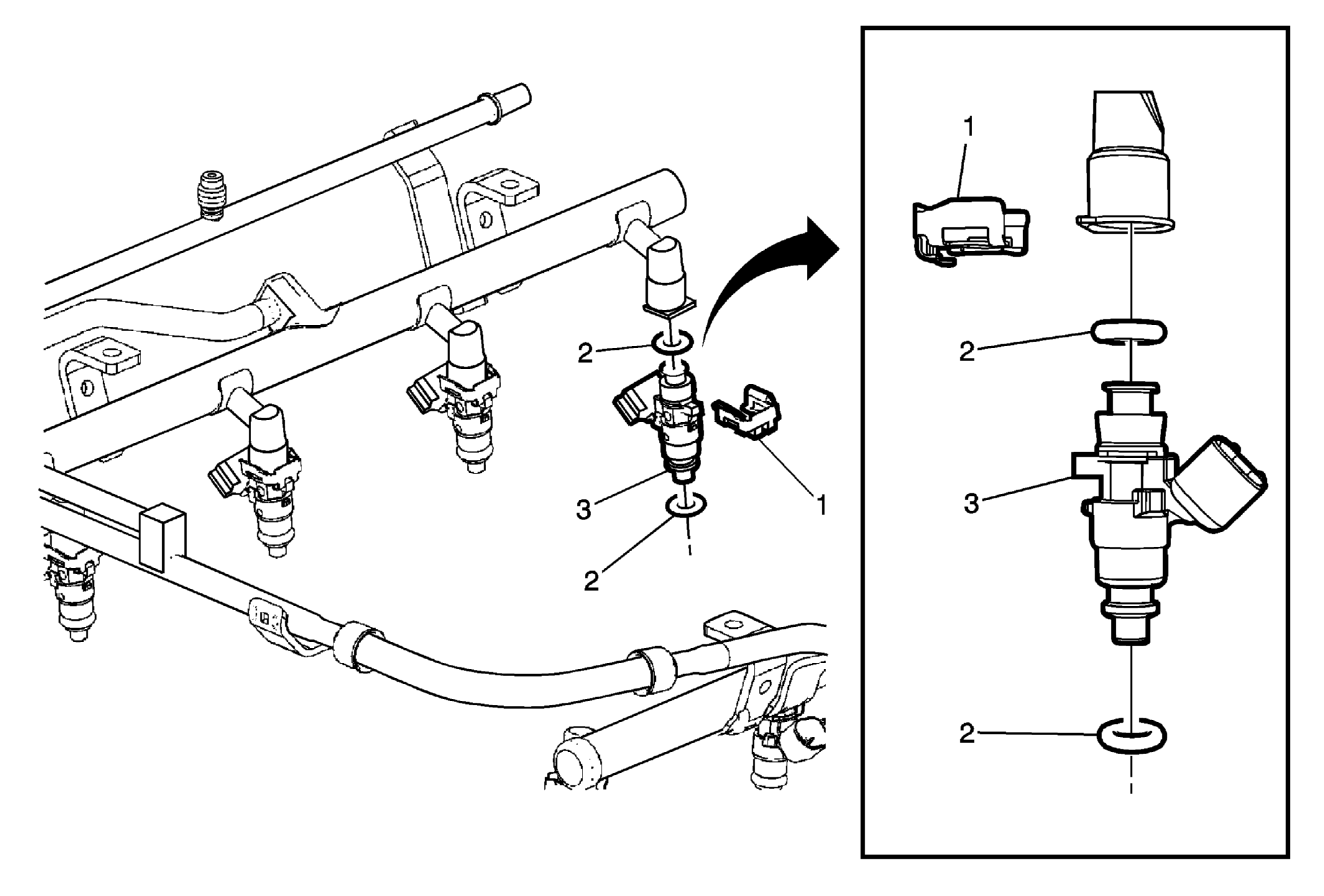

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the fuel rail. Refer to Fuel Injection Fuel Rail Assembly Replacement (LS9) , Fuel Injection Fuel Rail Assembly Replacement (Without LS9) . |
|
| 1 | Fuel Injector Retainer
NOTE:
A flat bladed tool can be used to release the retainer. |
| 2 | Fuel Injector Seals Remove and replace the injector O ring seals whenever the injector is removed. |
| 3 | Fuel Injector
NOTE:
Do not use tools on the body of the injector as it may cause damage to the injector. Be sure to also keep injector tips clear of debris. |
