High Speed GMLAN - Automatic Transmission

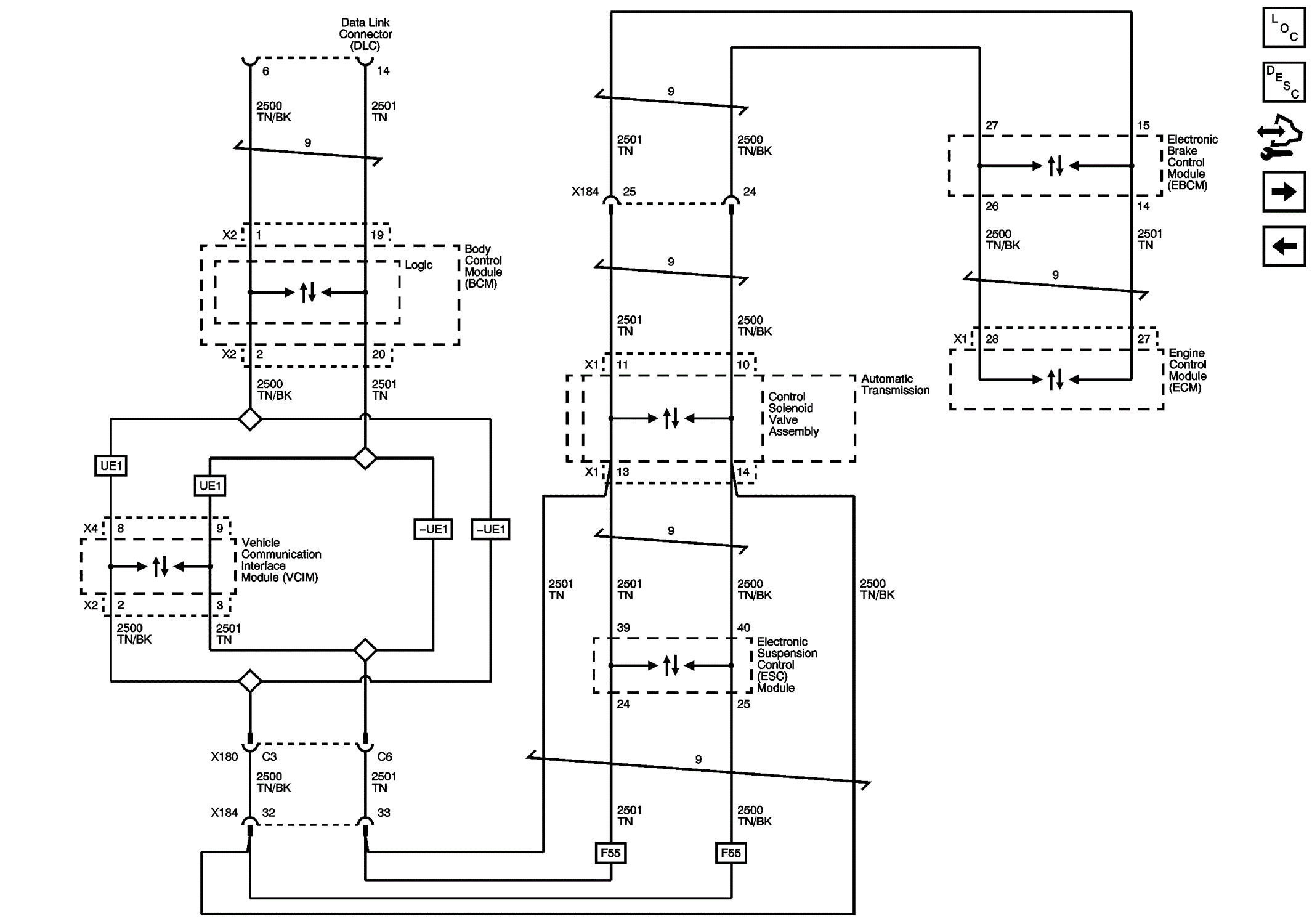

Fig 1: High Speed GMLAN Wiring Schematic - Automatic Transmission
GM2756213Courtesy of GENERAL MOTORS COMPANY
