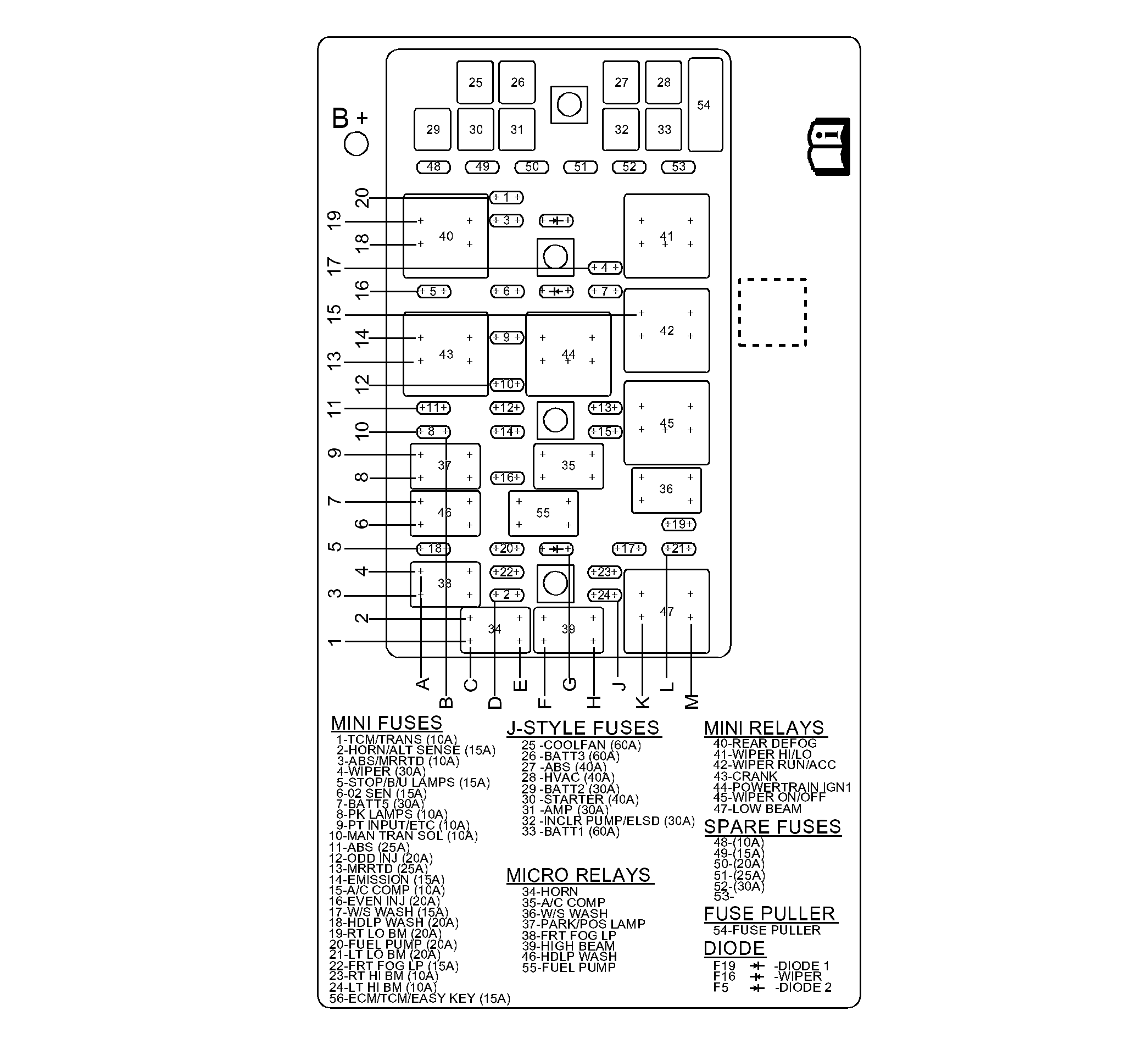

Fuse Block - Underhood Label
FUSE BLOCK - UNDERHOOD FUSE AND RELAY IDENTIFICATION LEGEND
| No. | Fuse And Relay Description | Rating | Circuits |
|---|---|---|---|
| 1 | TCM/TRANS | 10A | Automatic Transmission and Transmission Control Module (TCM) (MYC) |
| 2 | HORN/ALT SENSE Fuse | 15A | Generator and HORN Relay 34 |
| 3 | ABS/MRRTD Fuse | 10A | Electronic Brake Control Module (EBCM) and Electronic Suspension Control (ESC) Module |
| 4 | WIPER Fuse | 30A | WIPER ON/OFF Relay 45 and WIPER RUN/ACC Relay 42 |
| 5 | STOP/B/U LAMPS Fuse | 15A | Body Control Module (BCM) STOP LAMP Relay |
| 6 | 02 SEN Fuse | 15A | Heated Oxygen Sensors (HO2S) |
| 7 | BATT5 Fuse | 30A | Body Control Module (BCM) TELE SW/MEM SEAT MOD, DRIV DR SW, IGN SW/INTR SENS, ONSTAR, and TPA Fuses |
| 8 | PK LAMPS Fuse | 10A | PARK LAMP Relay 37 |
| 9 | PT INPUT/ETC Fuse | 10A | Engine Control Module (ECM) |
| 10 | MAN TRAN SOL Fuse | 10A | Skip Shift Solenoid (M/T with JL5) |
| 11 | ABS Fuse | 25A | Electronic Brake Control Module (EBCM) |
| 12 | ODD INJ Fuse | 20A | Odd Fuel Injectors and Ignition Coils |
| 13 | MRRTD Fuse | 25A | Evaporative Emission (EVAP) Canister Vent Solenoid Valve and Electronic Suspension Control (ESC) Module |
| 14 | EMISSION Fuse | 15A | Evaporative Emission (EVAP) Canister Purge Solenoid Valve |
| 15 | A/C COMP Fuse | 10A | A/C COMP Relay 35 |
| 16 | EVEN INJ Fuse | 20A | Even Fuel Injectors and Ignition Coils |
| 17 | W/S WASH Fuse | 15A | W/S WASH Relay 36 |
| 18 | HDLP WASH Fuse | 20A | HDLP WASH Relay 46 |
| 19 | RT LO BM Fuse | 20A | Headlamp Ballast - Right |
| 20 | FUEL PUMP Fuse | 20A | FUEL PUMP Relay 55 |
| 21 | LT LO BM Fuse | 20A | Headlamp Ballast - Left |
| 22 | FRT FOG LP Fuse | 15A | FOG LP Relay 38 |
| 23 | RT HI BM Fuse | 10A | Headlamp - Right High Beam |
| 24 | LT HI BM Fuse | 10A | Headlamp - Left High Beam |
| 25 | COOLFAN | 60A | Fan Control Module |
| 26 | BATT3 Fuse | 60A | Body Control Module (BCM) A.C. LATCH/PK BRK B, BTSI SOL/COL LOCK, CLUSTER, DOOR LOCKS, HVAC/PWR SND, INTERIOR LIGHTS, PWR FLDG MIR-EXT/RET, RADIO/ANT/VICS, REAR FOG/ALDL TOP SW Fuses, and RUN/CRANK Relay 2 |
| 27 | ABS Fuse | 40A | Electronic Brake Control Module (EBCM) |
| 28 | HVAC Fuse | 40A | Blower Motor Control Module |
| 29 | BATT2 Fuse | 30A | Folding Top Control Module and REAR DEFOG Relay 4 |
| 30 | STARTER Fuse | 40A | CRANK Relay 43 |
| 31 | AMP Fuse | 30A | Audio Amplifier |
| 32 | INCLR PUMP/ELSD Fuse | 30A | INCLR PUMP/ELSD RELAY, Charge Air Cooler (CAC) Coolant Pump |
| 33 | BATT1 Fuse | 60A | I/P Fuse Block DOOR CONTROLS and POWER SEATS Circuit Breakers, HEATED SEAT LH, HEATED SEAT RH, and POWER LUMBAR LH/RH Fuses |
| 34 | HORN Relay | - | Horns |
| 35 | A/C COMP Relay | - | A/C Compressor Clutch |
| 36 | W/S WASH Relay | - | Windshield Washer Fluid Pump |
| 37 | PARK/POS LAMP Relay | - | Park Lamp - Left Front, Park Lamp Right Front |
| 38 | FRT FOG LP Relay | - | Fog Lamp - Left Front and Fog Lamp - Right Front |
| 39 | HIGH BEAM Relay | - | Headlamp - Left High Beam, Headlamp - Right High Beam |
| 40 | REAR DEFOG Relay | - | Rear Window Defogger |
| 41 | WIPER HI/LO Relay | - | Wiper/Washer System |
| 42 | WIPER RUN/ACC Relay | - | Wiper/Washer System |
| 43 | CRANK Starter Relay | - | Starter Motor |
| 44 | POWERTRAIN IGN1 Relay | - | EMISSION, EVEN INJ, ETC, FUEL, O2, and ODD INJ Fuses and A/C COMP Relay 35 |
| 45 | WIPER ON/OFF Relay | - | Wiper/Washer System |
| 46 | HDLP WASH Relay | - | Headlamp Washer Fluid Pump |
| 47 | LOW BEAM Relay | - | Headlamp - Left Low Beam, Headlamp - Right Low Beam |
| 48 | SPARE FUSE | 10A | Spare Fuse |
| 49 | SPARE FUSE | 15A | Spare Fuse |
| 50 | SPARE FUSE | 20A | Spare Fuse |
| 51 | SPARE FUSE | 25A | Spare Fuse |
| 52 | SPARE FUSE | 30A | Spare Fuse |
| 53 | EMPTY | - | Not Used |
| 54 | FUSE PULLER | - | Fuse Puller |
| 55 | FUEL PUMP Relay | - | Fuel Pump and Sender Assembly |
| 56 | ECM/TCM/EASY KEY | 15A | Engine Control Module (ECM), Remote Control Door Lock Receiver (RCDLR), and Transmission Control Module (TCM) (MYC) |
| F5 | DIODE 2 | - | Wiper/Washer System |
| F16 | WIPER Diode | - | Wiper/Washer System |
| F19 | DIODE 1 | - | Wiper/Washer System |
