Installation Procedure

  1. Maneuver the power steering cooler hose as needed and position it to the vehicle.

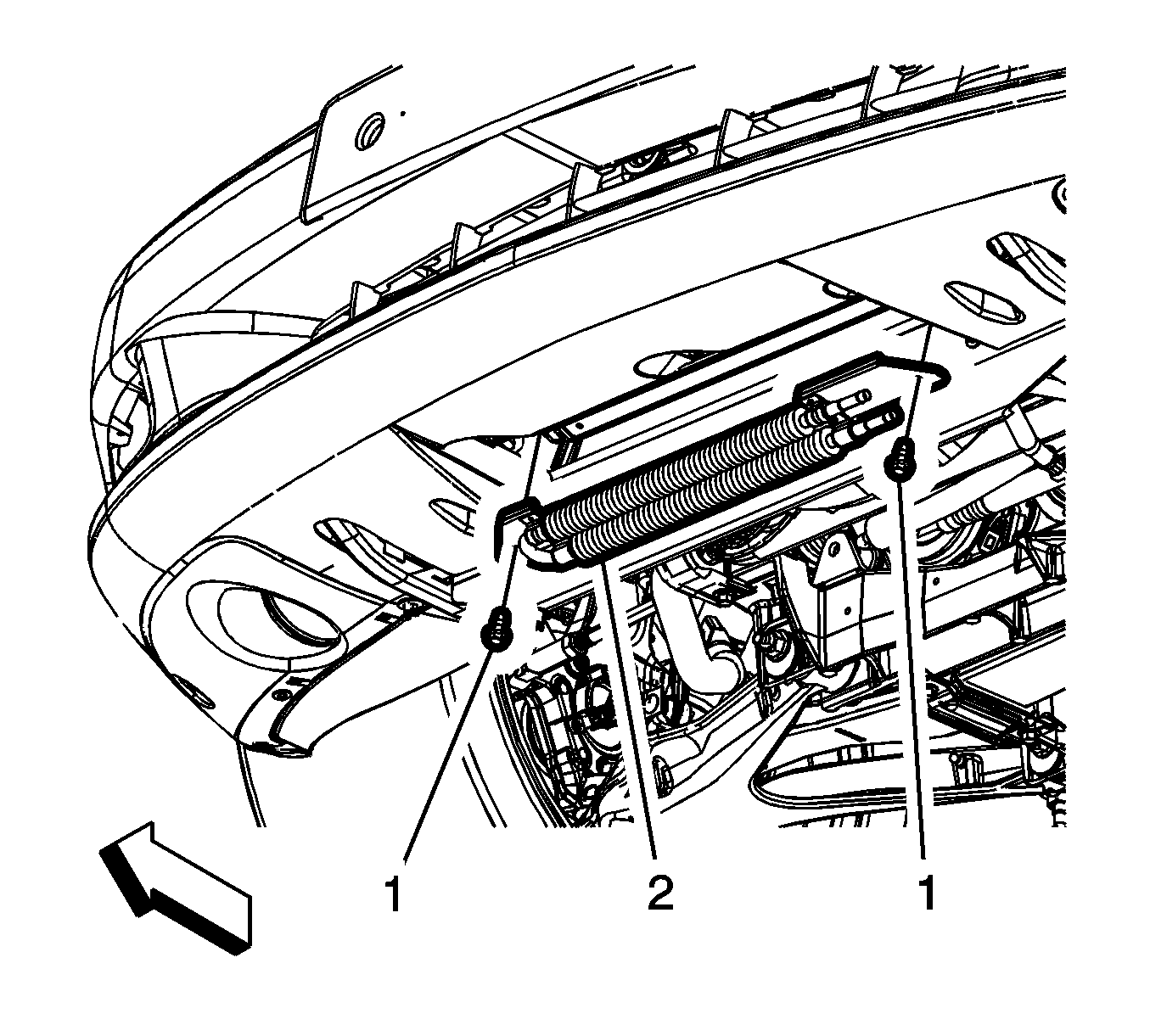

    2. Fig 1: Power Steering Cooler Hose Bolts And Power Steering Cooler
    GM2736521Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the power steering cooler (2) and the power steering cooler hose bolts (1) and tighten to 11 N.m (97 lb in).

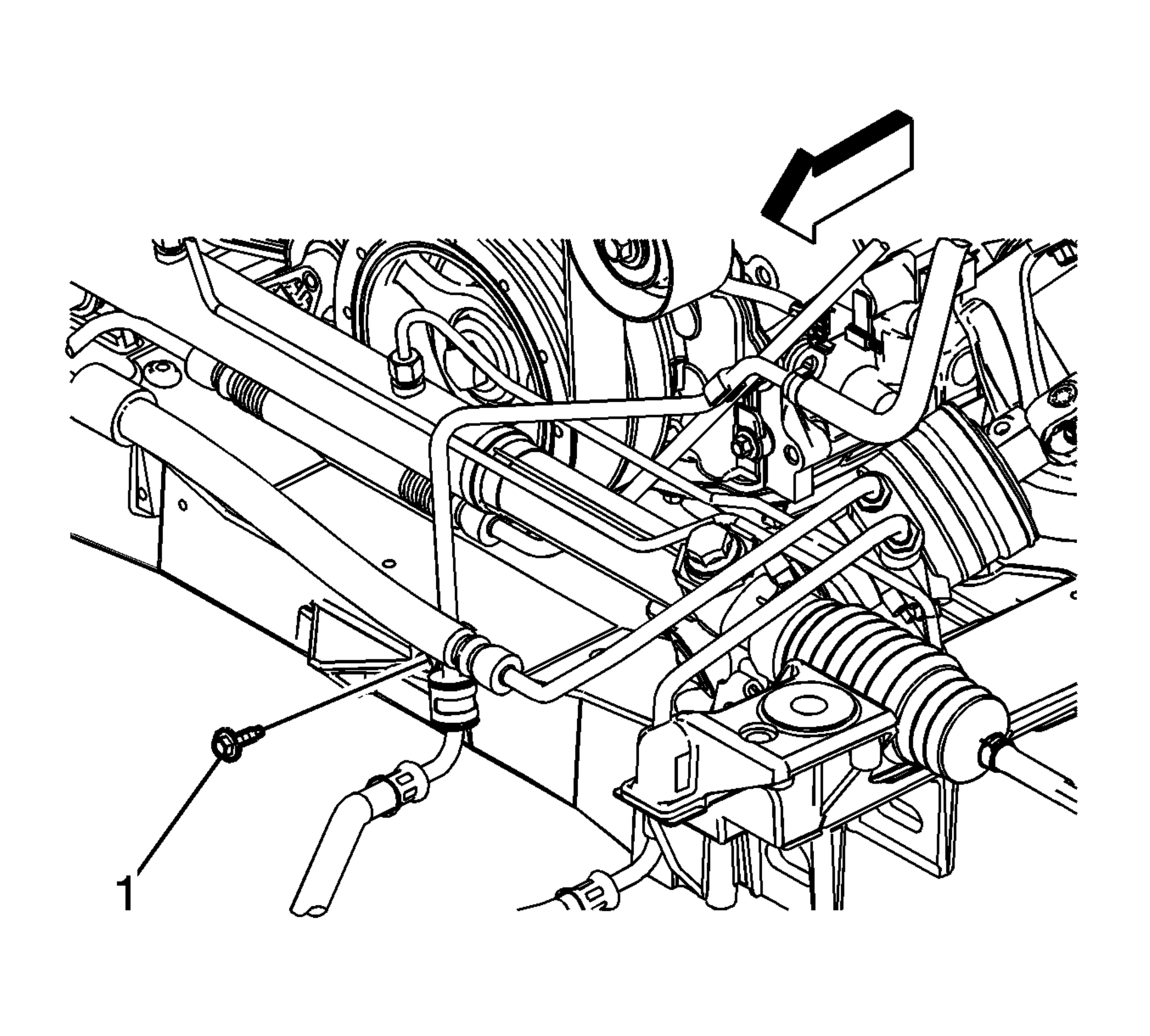

    3. Fig 2: View Of Power Steering Cooler Hose Bracket Bolt
    GM2139700Courtesy of GENERAL MOTORS COMPANY
  3. Install the power steering cooler hose bracket bolt (1) and tighten to 10 N.m (89 lb in).

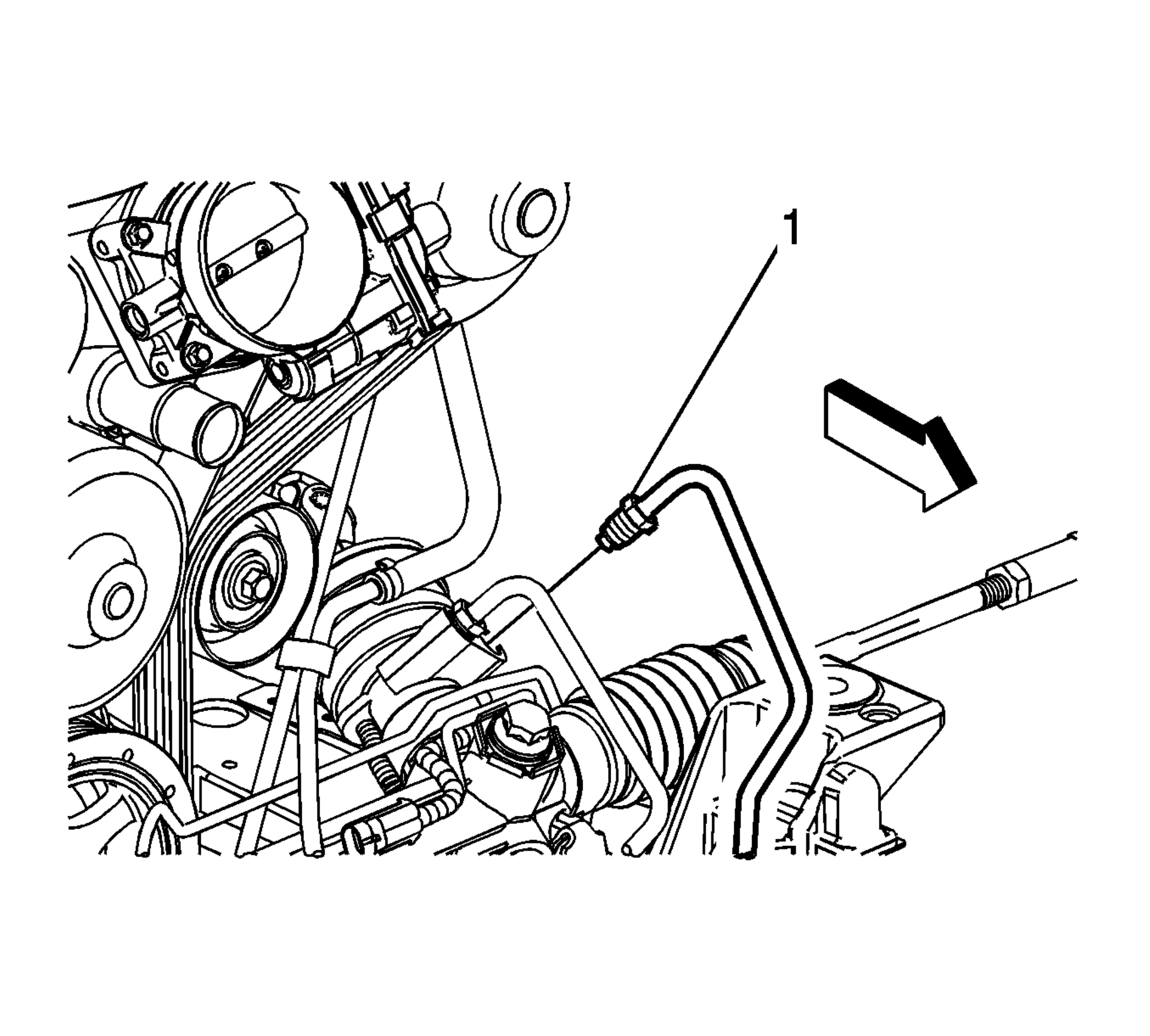

    4. Fig 3: View Of Power Steering Cooler Hose
    GM2139386Courtesy of GENERAL MOTORS COMPANY
  4. Connect the power steering cooler hose (1) to the steering gear and tighten to 34 N.m (25 lb ft).

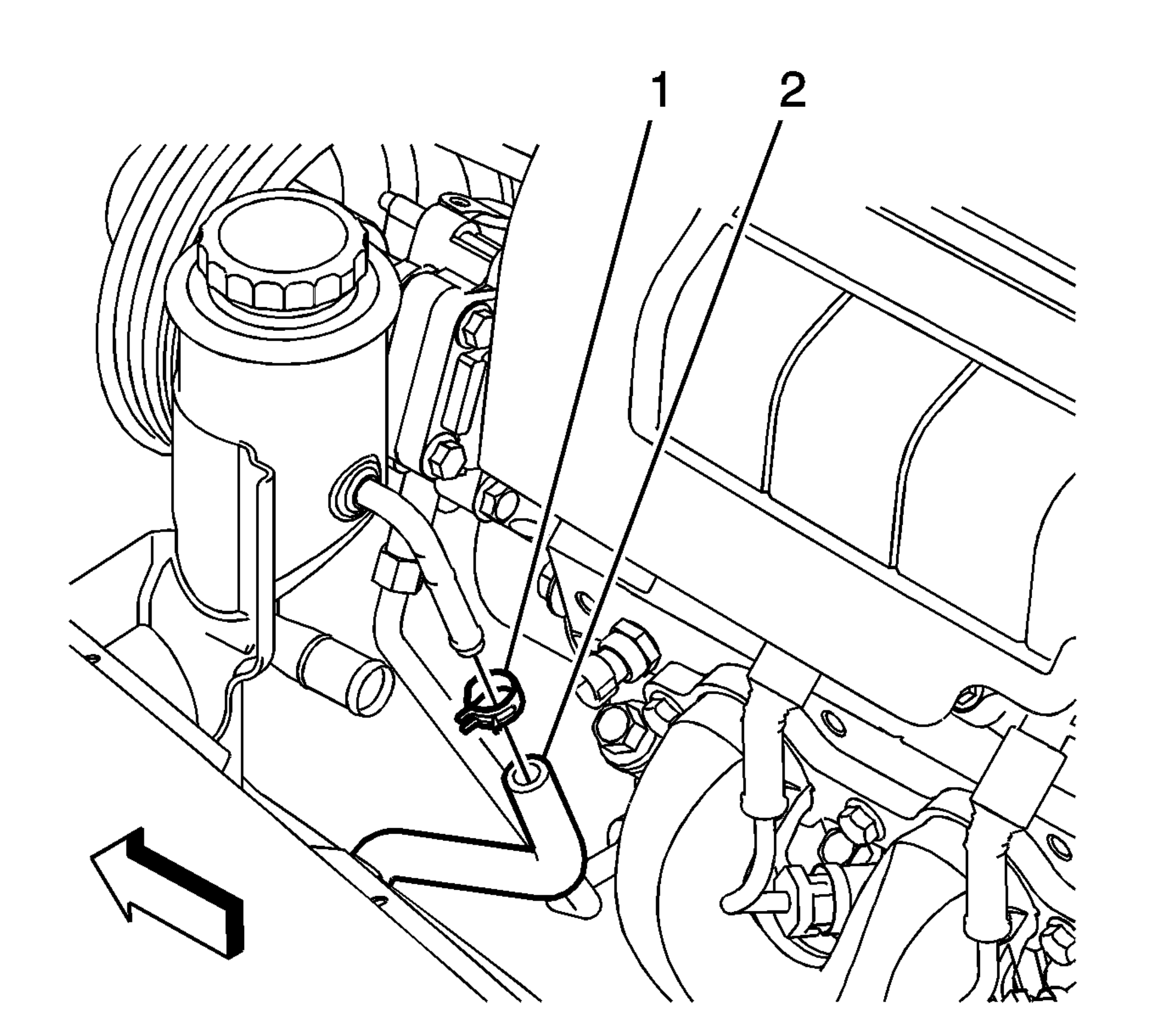

    5. Fig 4: Identifying Power Steering Fluid Cooler Hose & Clamp
    GM2132666Courtesy of GENERAL MOTORS COMPANY
  5. Connect the power steering cooler hose (2) to the remote power steering fluid reservoir.
  6. Clean any excess power steering fluid from the vehicle and remove the drain pans.
  7. Fill and bleed the power steering system. Refer to Power Steering System Bleeding .
