Oil Temperature Sensor/Switch, Engine

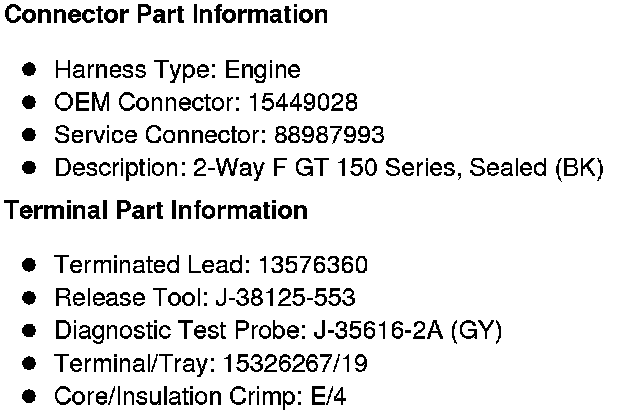

Component Connector End Views

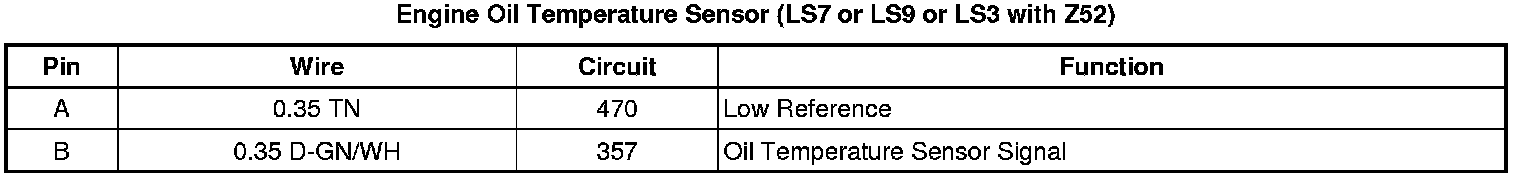

Engine Oil Temperature Sensor (LS7 or LS9 or LS3 with Z52)
