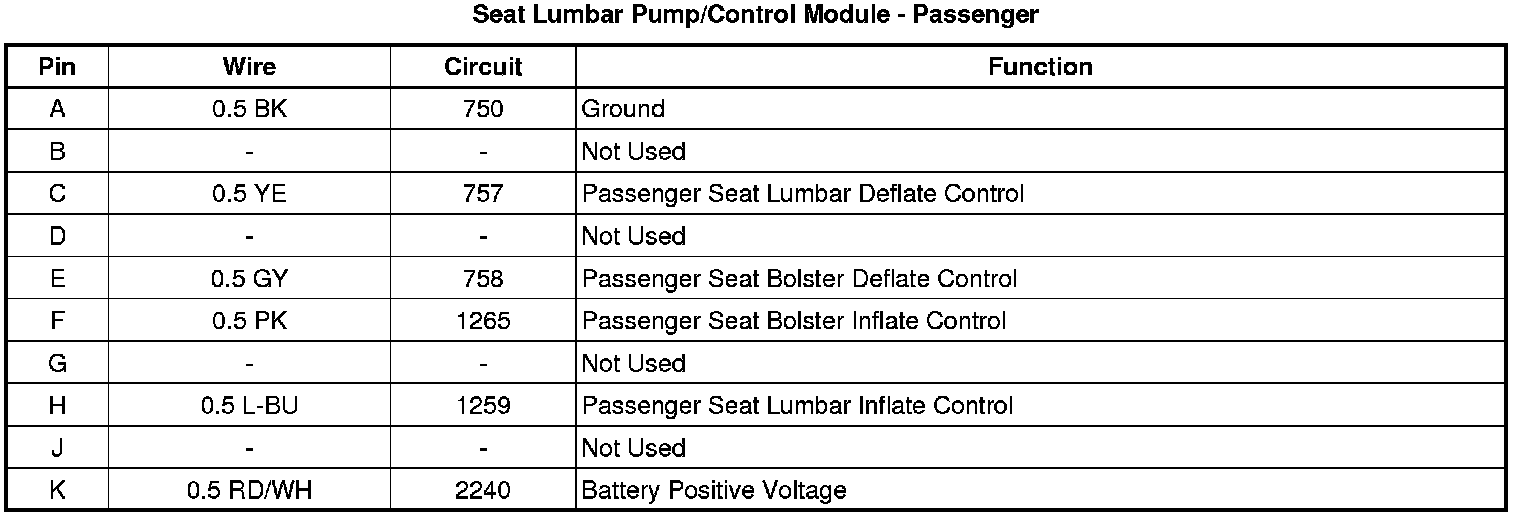

Seat Lumbar Pump/Control Module - Passenger

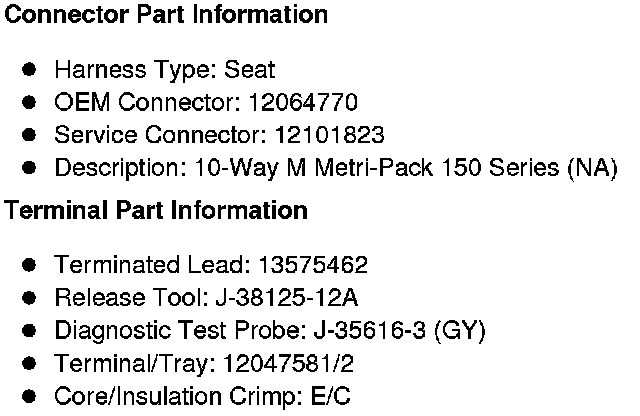

Component Connector End Views
Seat Lumbar Pump/
Control Module
- Passenger
