Power, Ground, Serial Data, Antenna, and Display Wiring Schematics

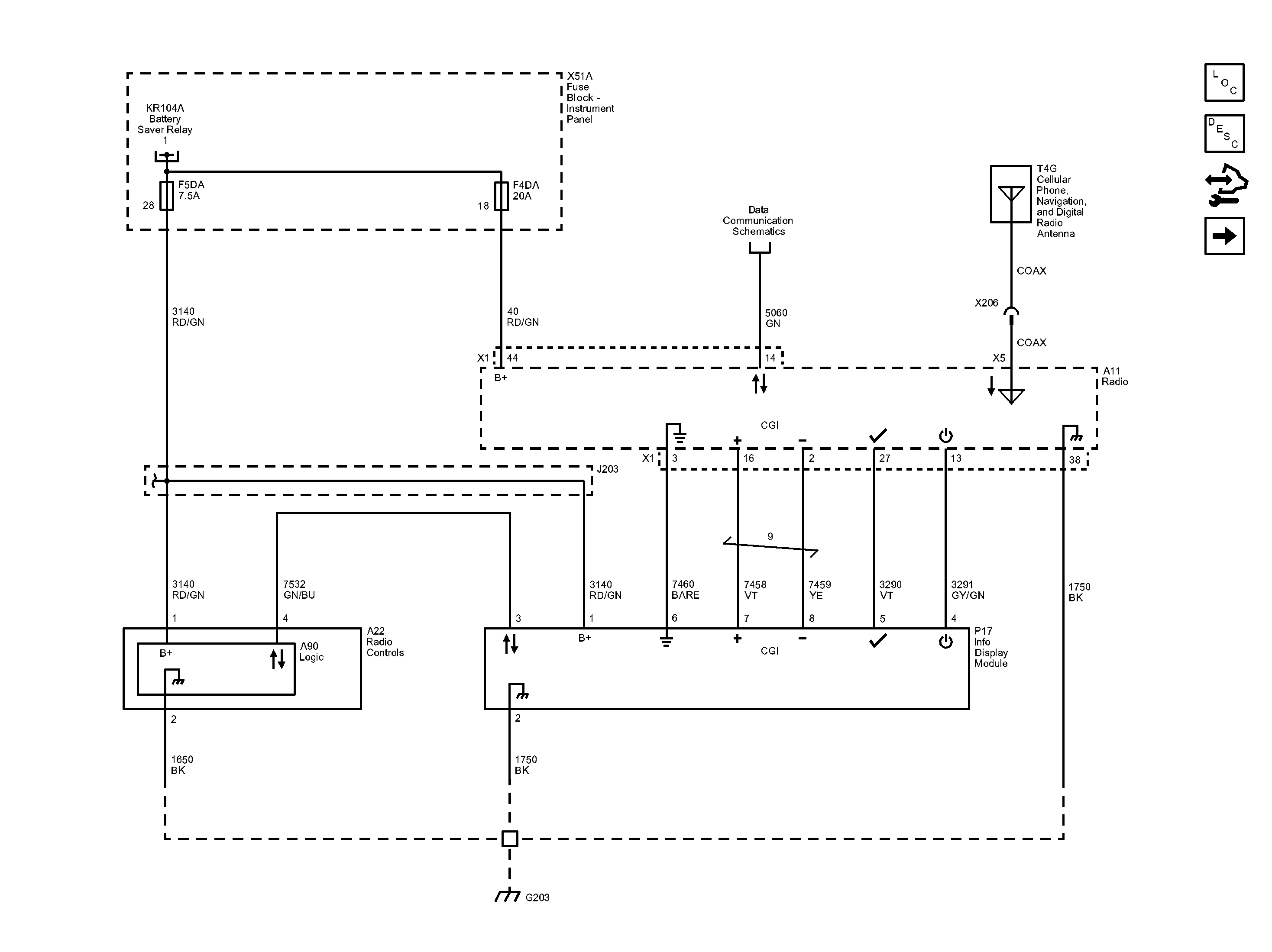

Fig 1: Power, Ground, Serial Data, Antenna, and Display Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
