Oil Pressure Sensor: Locations

Powertrain Component Views

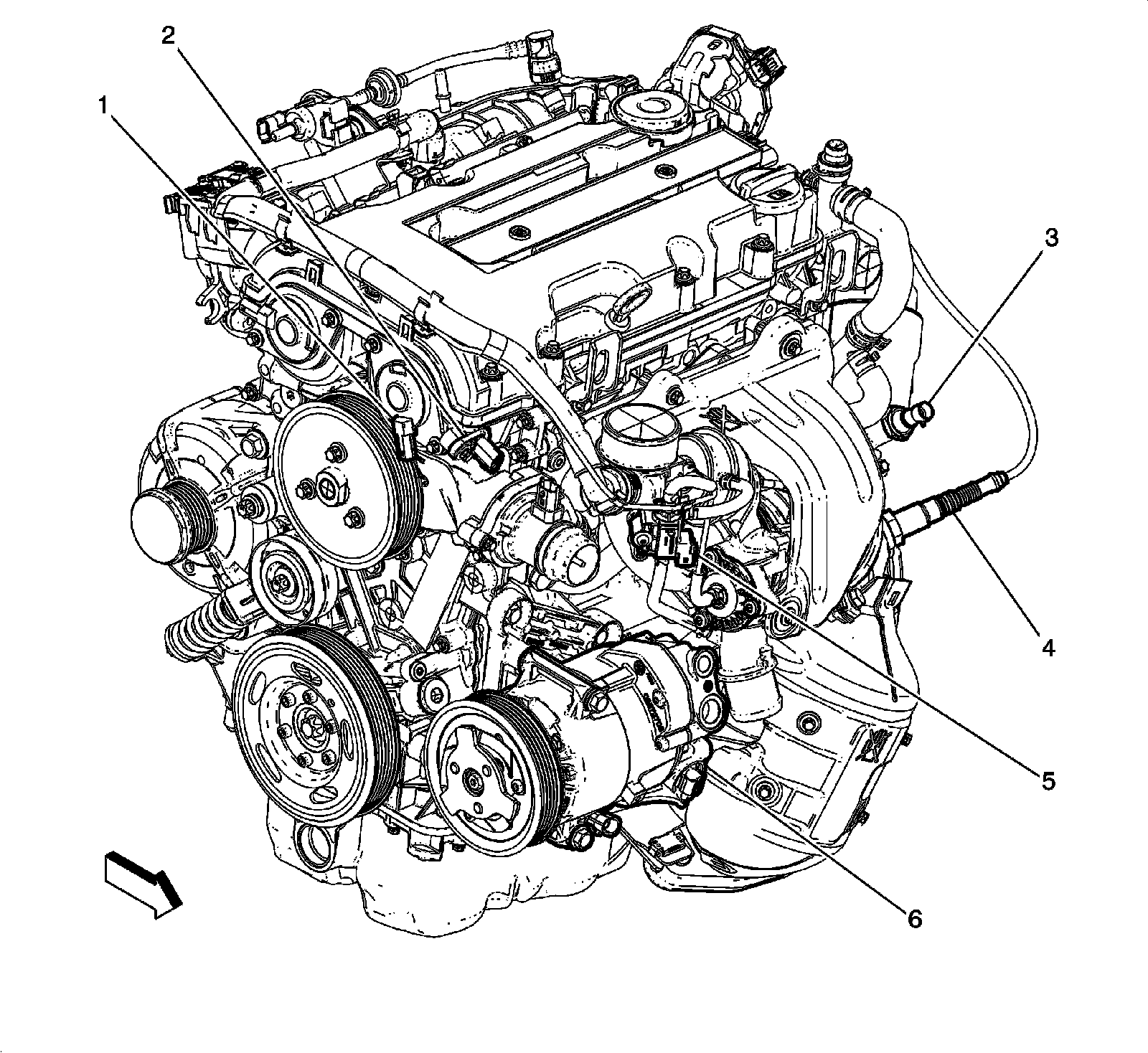

Right Front of the Engine Components (LUJ)

1 - Q6E Camshaft Position Actuator Solenoid Valve - Exhaust

2 - B23E Camshaft Position Sensor - Exhaust

3 - B37 Engine Oil Pressure Switch

4 - B52A Heated Oxygen Sensor 1

5 - Q42 Turbocharger Wastegate Solenoid Valve

6 - Q46 A/C Compressor Solenoid Valve
