Electronic Brake Control Module




Component Connector End Views

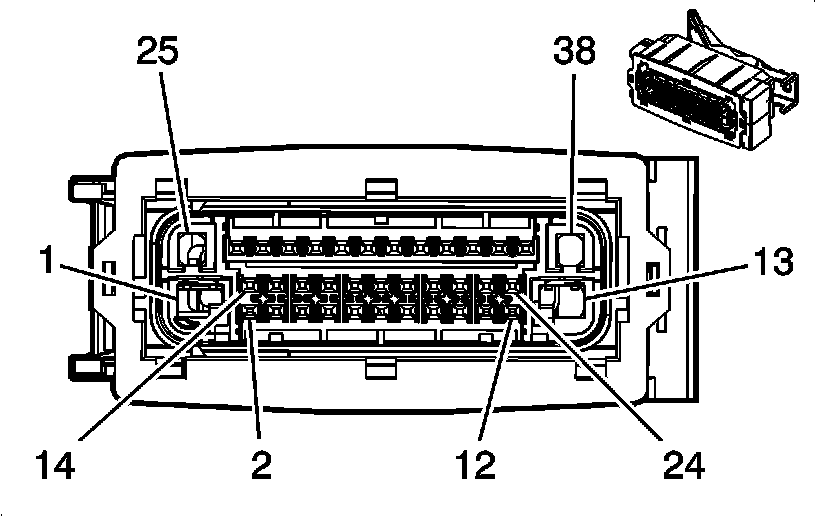

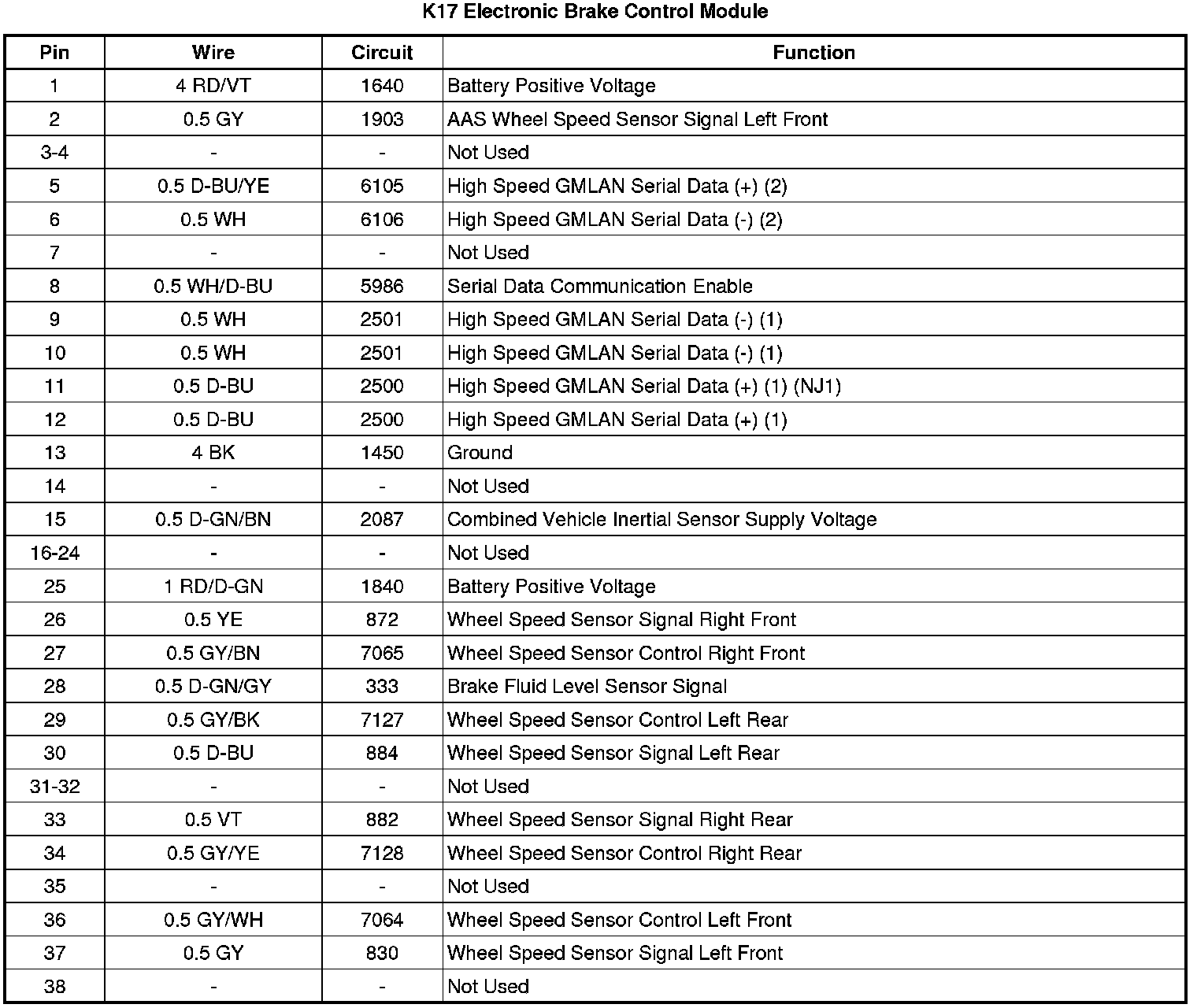

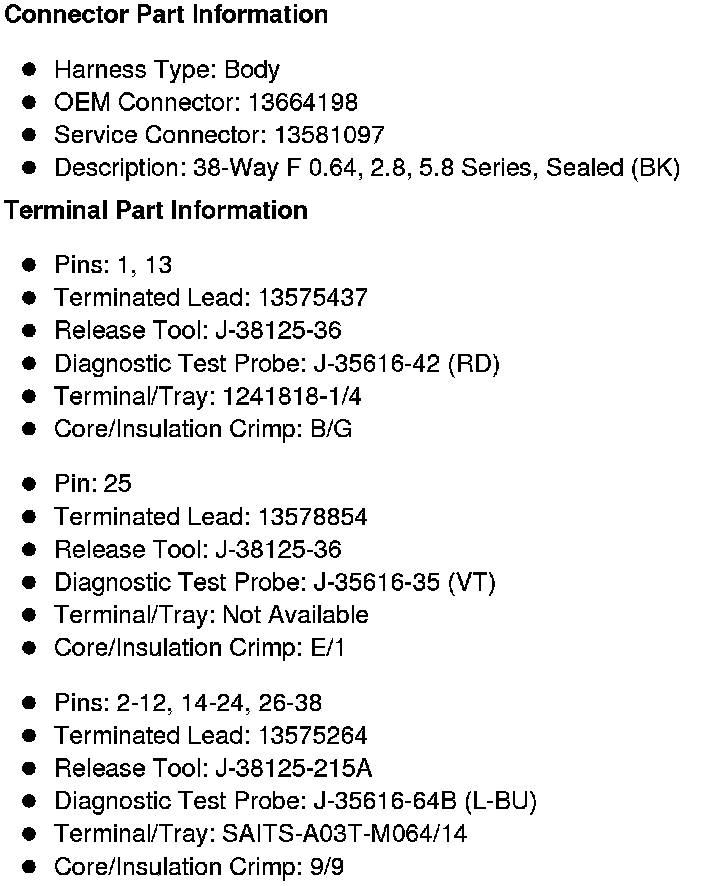

K17 Electronic Brake Control Module
