Blower Motor Control Module

Instrument Panel/Center Console Component Views

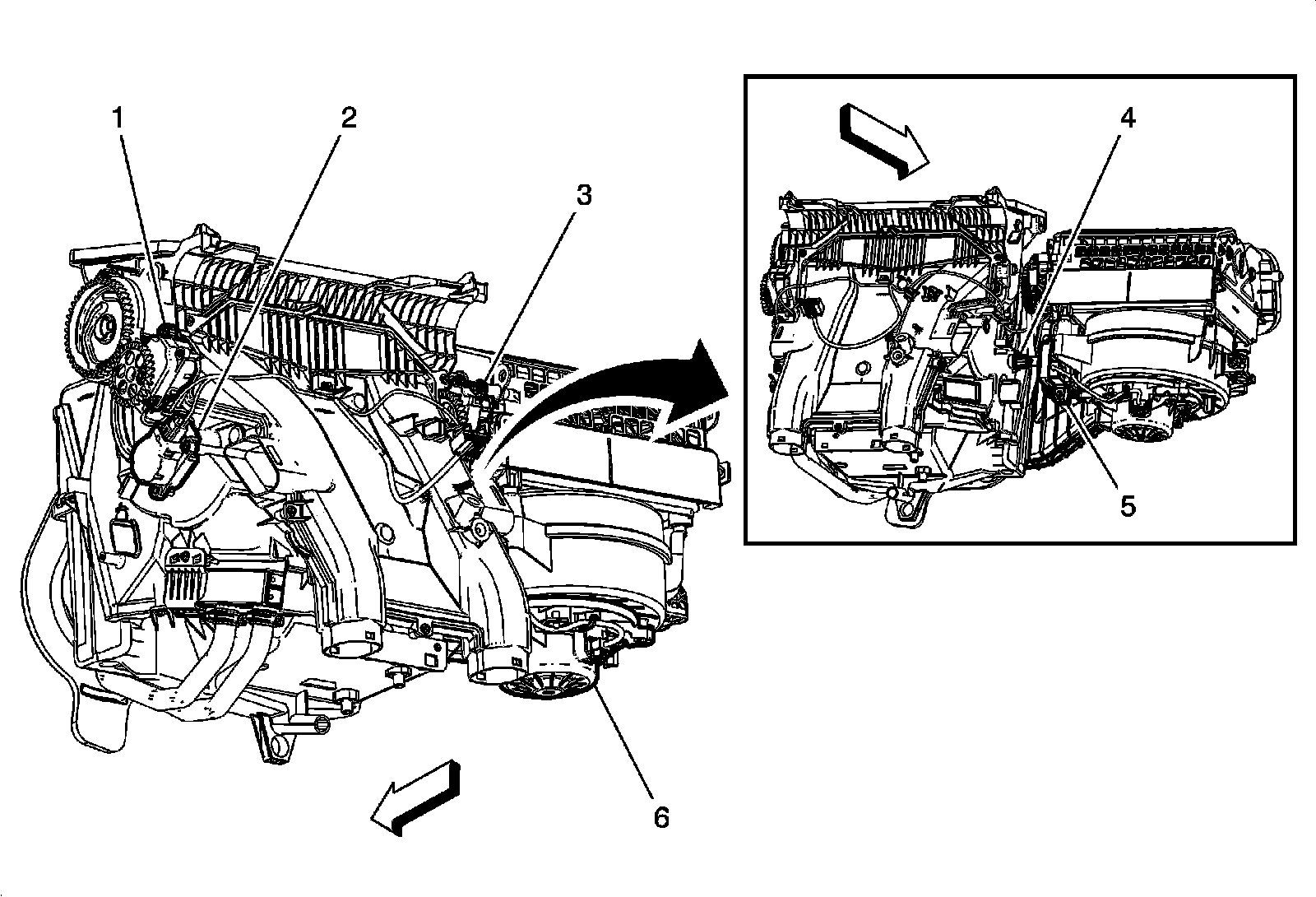

Interior HVAC Components





1 - M37 Mode Door Actuator

2 - M6 Air Temperature Door Actuator

3 - M46 Air Recirculation Door Actuator

4 - B39 A/C Evaporator Temperature Sensor

5 - K8 Blower Motor Control Module

6 - M8 Blower Motor
