Battery Current Sensor: Locations

Front of Vehicle/Engine Compartment Component Views

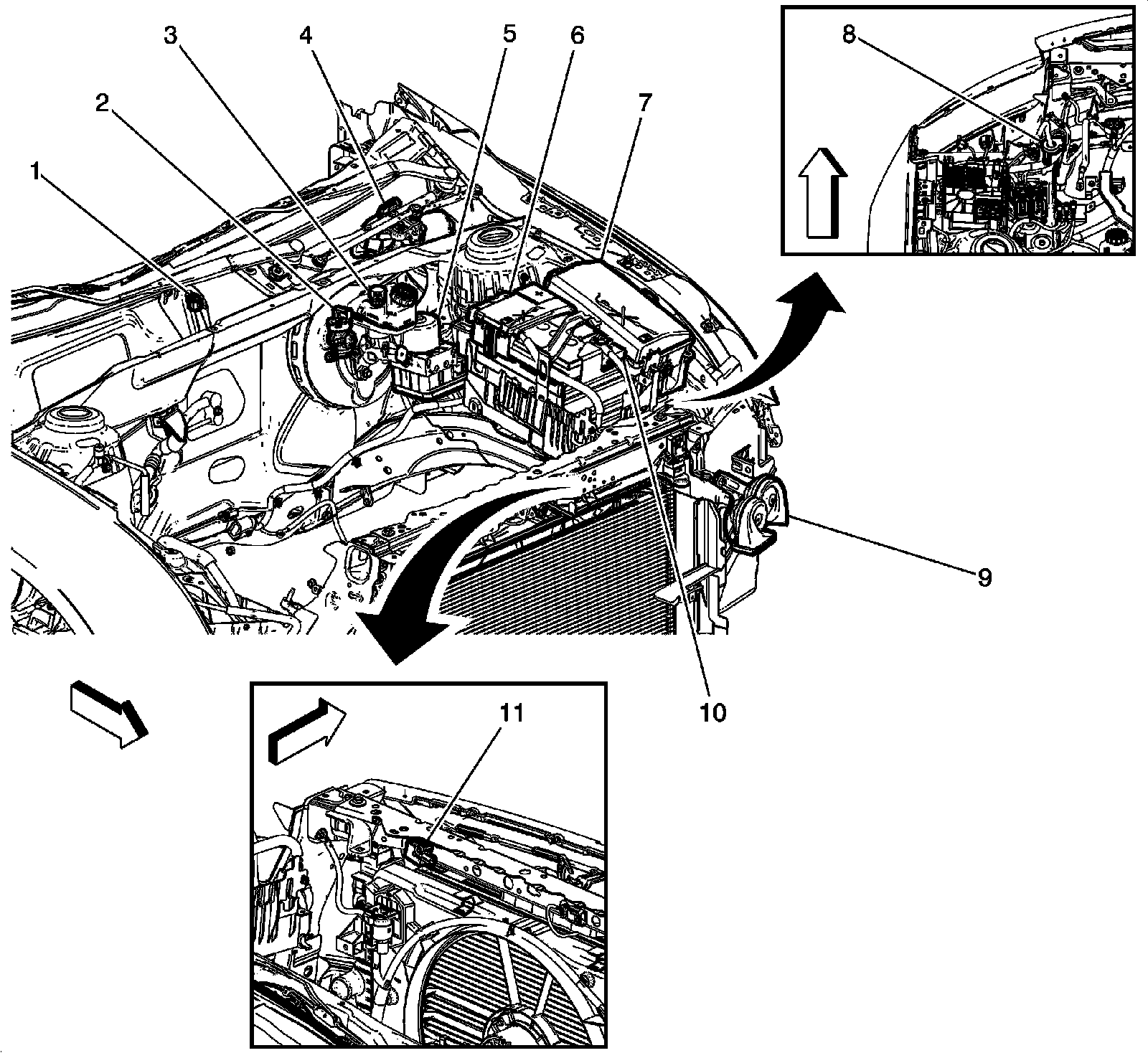

Left Side of Engine Compartment Components





1 - B108 Air Quality Sensor (C68)

2 - B19C Brake Booster Vacuum Switch

3 - B20 Brake Fluid Level Switch

4 - M75 Windshield Wiper Motor

5 - K17 Electronic Brake Control Module

6 - X50D Fuse Block - Battery

7 - X50A Fuse Block - Underhood

8 - B18 Battery Current Sensor

9 - P12 Horn

10 - C1 Battery

11 - B59L Front Impact Sensor - Left
