Module Power, Grounds, and Subsystem References Wiring Schematics (1 of 4)

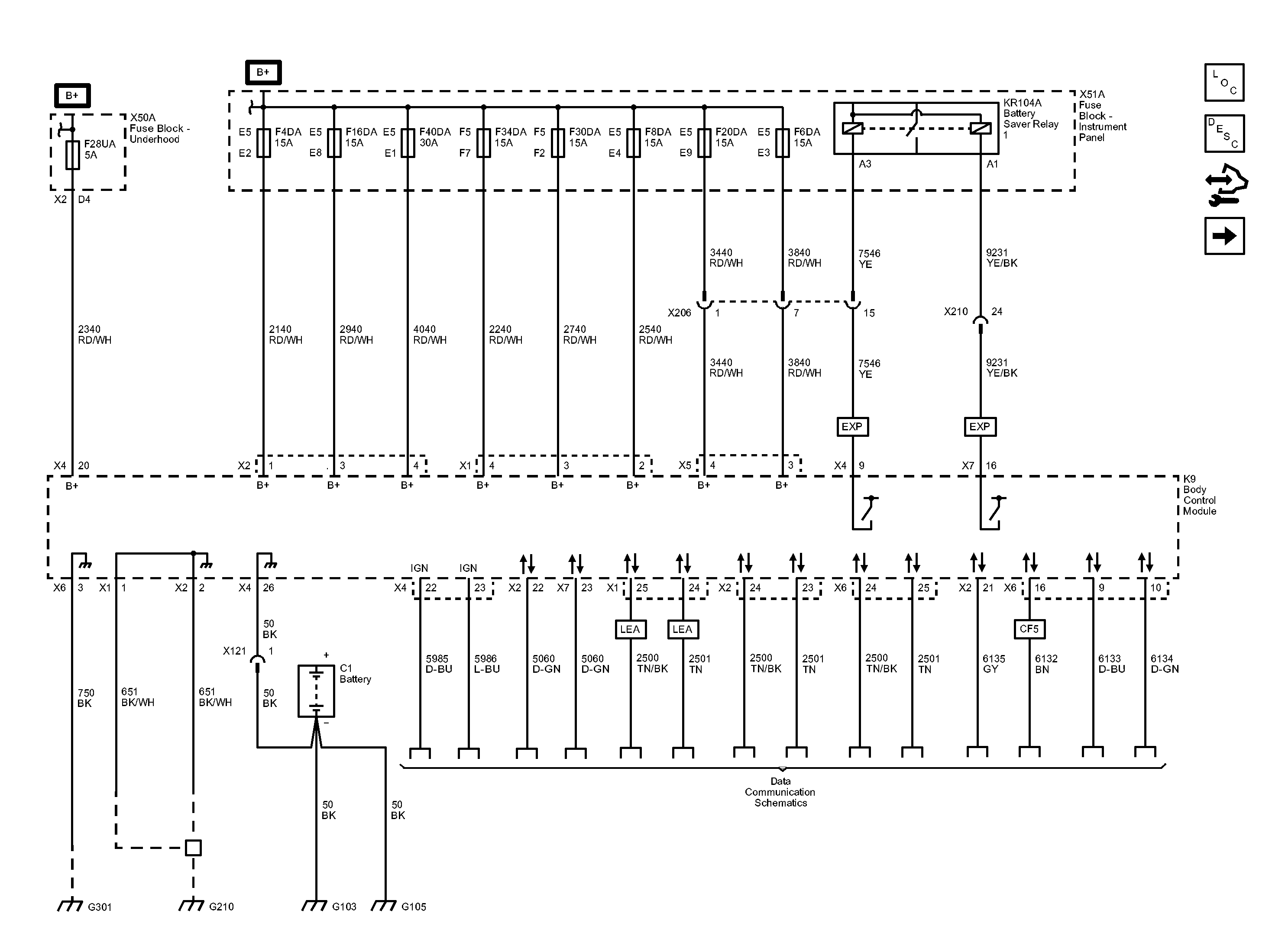

Fig 1: Module Power, Grounds, and Subsystem References Wiring Schematics (1 of 4)
GM2816065Courtesy of GENERAL MOTORS COMPANY
