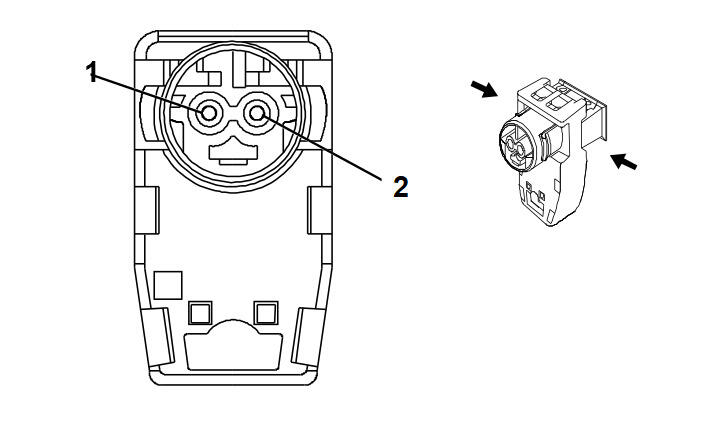

Inflatable Restraint Roof Rail Module - Right
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13806185
- Service Connector: 19118723
- Description: 2-Way F 0.64 GET Series (BK w/ YE cover)
|
Terminal Part Information
- Terminated Lead: Service by Connector Assembly - 19118723
- Release Tool: Not Available
- Diagnostic Test Probe: Not Available
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
|
Inflatable Restraint Roof Rail Module - Right
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 YE/BK |
5021 |
Right Front Head Curtain Module High Control |
| 2 |
0.5 WH/BK |
5022 |
Right Front Head Curtain Module Low Control |
