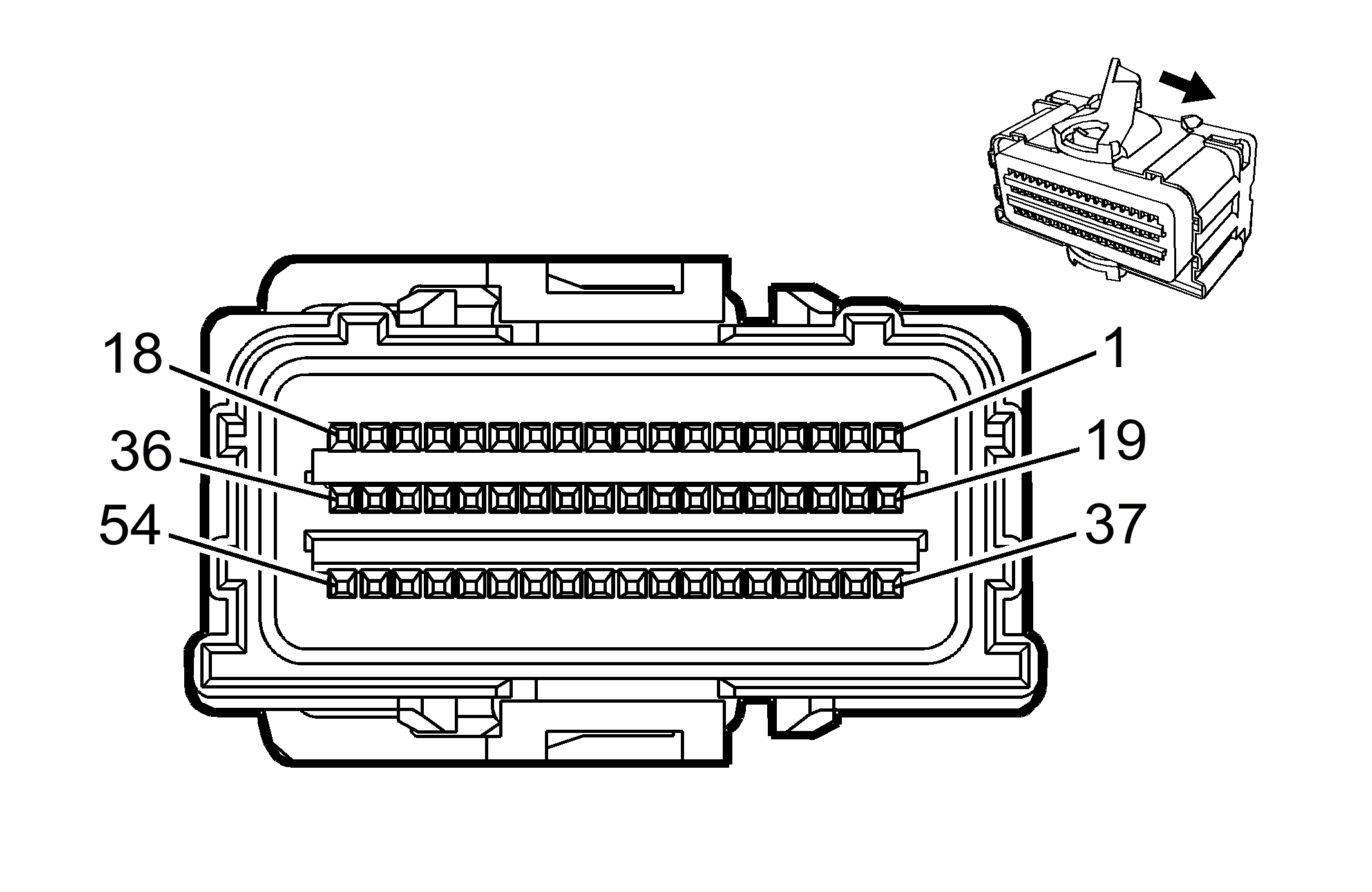

Inflatable Restraint Sensing and Diagnostic Module (SDM) X2

GM2180250Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness: Body
  • OEM: 13715984
  • Service: 13580845
  • Description: 54-Way F 0.64 Series, Sealed (YE)
Terminal Part Information
  • Terminated Lead: 13580076
  • Release Tool: J-38125-215A
  • Diagnostic Test Probe: J-35616-64B (L-BU)
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
Inflatable Restraint Sensing and Diagnostic Module (SDM) X2

Pin Wire Circuit Function
1-8 - - Not Available
9 0.35 WH 3064 Driver Seat Belt Buckle Pretensioner High Control
10 0.35 YE 3065 Driver Seat Belt Buckle Pretensioner Low Control
11 0.35 L-BU/BK 3063 Passenger Seat Belt Buckle Pretensioner Low Control
12 0.35 TN 3062 Passenger Seat Belt Buckle Pretensioner High Control
13 0.35 BN 2137 Left Front Side Impact Module High Control
14 0.35 YE/BK 2138 Left Front Side Impact Module Low Control
15 0.35 L-GN 2136 Right Front Side Impact Module Low Control
16 0.35 TN/WH 2135 Right Front Side Impact Module High Control
17 0.5 PU/WH 5019 Left Front Head Curtain Module High Control
18 0.5 PK 5020 Left Front Head Curtain Module Low Control
19 0.35 YE 2131 Left Front Side Impact Sensing Module Supply Voltage
20 0.35 WH 2132 Left Front Side Impact Sensing Module Signal
21 0.35 D-GN 2134 Right Front Side Impact Sensing Module Signal
22 0.35 TN 2133 Right Front Side Impact Sensing Module Supply Voltage
23 0.35 YE 354 Left Front Discriminating Sensor Signal
24 0.35 TN/OG 5045 Left Front Discriminating Sensor Low Reference
25 0.35 GY 5600 Right Front Side Impact Sensing Module Signal
26 0.35 D-GN 1409 Right Front Side Impact Sensing Module Signal
27-36 - - Not Available
37 0.35 TN/WH 2118 Driver Seat Belt Pretensioner High Control
38 0.35 OG/BK 2119 Driver Seat Belt Pretensioner Low Control
39 0.35 OG 2117 Passenger Seat Belt Pretensioner Low Control
40 0.35 L-GN 2116 Passenger Seat Belt Pretensioner High Control
41 0.35 D-GN 5016 Driver Seat Belt Switch Signal
42 - - Not Available
43 0.35 PK 5057 Seat Position Switch Low Reference
44 - - Not Available
45 0.35 OG 1362 Seat Belt Switch Signal
46-52 - - Not Available
53 0.5 YE/BK 5021 Right Front Head Curtain Module High Control
54 0.5 WH/BK 5022 Right Front Head Curtain Module Low Control
