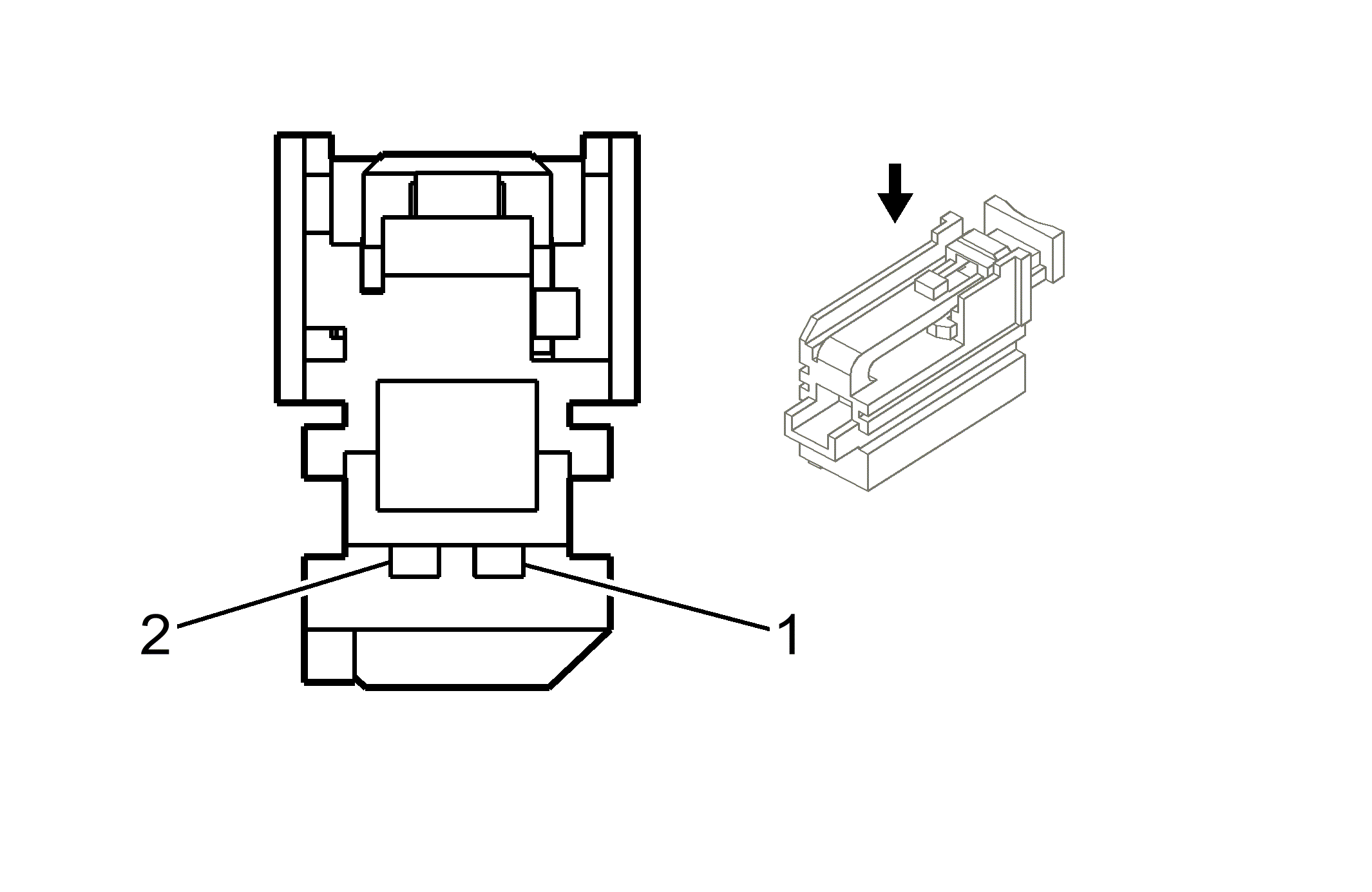

Inflatable Restraint Side Impact Module - Left
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Left Front Seat
- OEM Connector: 13647550
- Service Connector: 19208396
- Description: 2-Way F 0.64 Series Unsealed (YE)
|
Terminal Part Information
- Terminated Lead: 13575867
- Release Tool: J-38125-215A
- Diagnostic Test Probe: J-35616-64B (L-BU)
- Terminal/Tray: SAIT-A03T-M064/14
- Core/Insulation Crimp: P/P
|
Inflatable Restraint Side Impact Module - Left
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 YE/BK |
2138 |
Left Front Side Impact Module- Low Control |
| 2 |
0.5 BN |
2137 |
Left Front Side Impact Module- High Control |
