Steering Angle Sensor

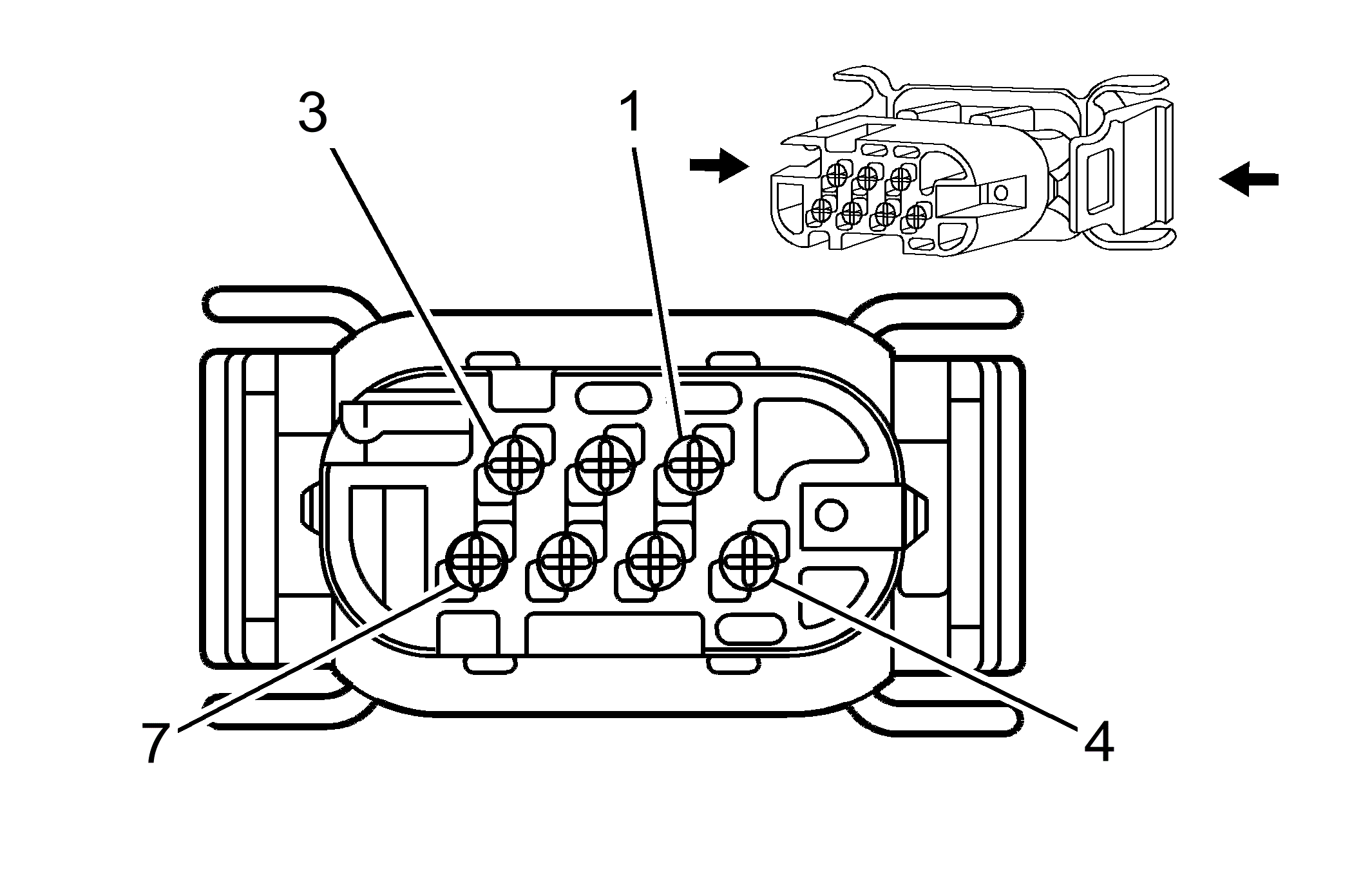

GM1243680Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 15324351
  • Service Connector: 88987967
  • Description: 7-Way F 0.6 Series (BK)
Terminal Part Information
  • Terminal/Tray: 1928498014/17
  • Core/Insulation Crimp: N/N
  • Release Tool/Test Probe: J-38125-560/J-35616-64B (L-BU)
Steering Angle Sensor

Pin Wire Circuit Function
1 0.35 BK/WH 1551 Ground
2 0.35 WH 1056 Steering Wheel Position Sensor 12V Reference Voltage
3 0.35 TN 6433 CAN Bus High Serial Data
4 0.35 L-GN 6432 CAN Bus Low Serial Data
5-7 - - Not Used
