Power Mirror Replacement

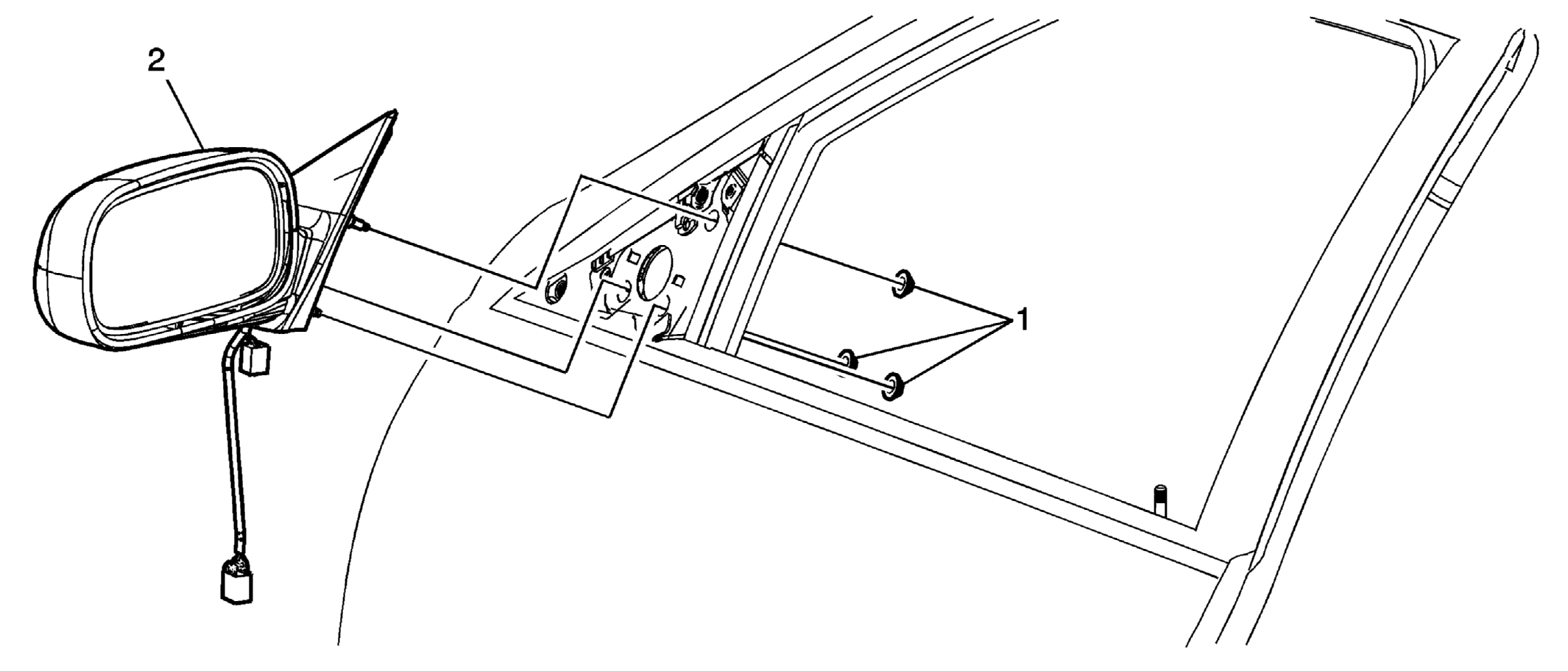

Fig 1: Identifying Power Mirror & Nuts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front door trim panel. Refer to Front Side Door Trim Panel Replacement
1	Outside Rearview Mirror Nut (Qty: 3) CAUTION: Refer to Fastener Caution . TIP: Disconnect the mirror electrical connector. Tighten 10 N.m (89 lb in)
2	Outside Rearview Mirror Assembly
