Ground Views: G101

G101

Component Name Callout
X120 1
X141 2
G101 3
X122 (9C1 or 9C3 without 6J7) 4
J124 5
G101 6
X142 7

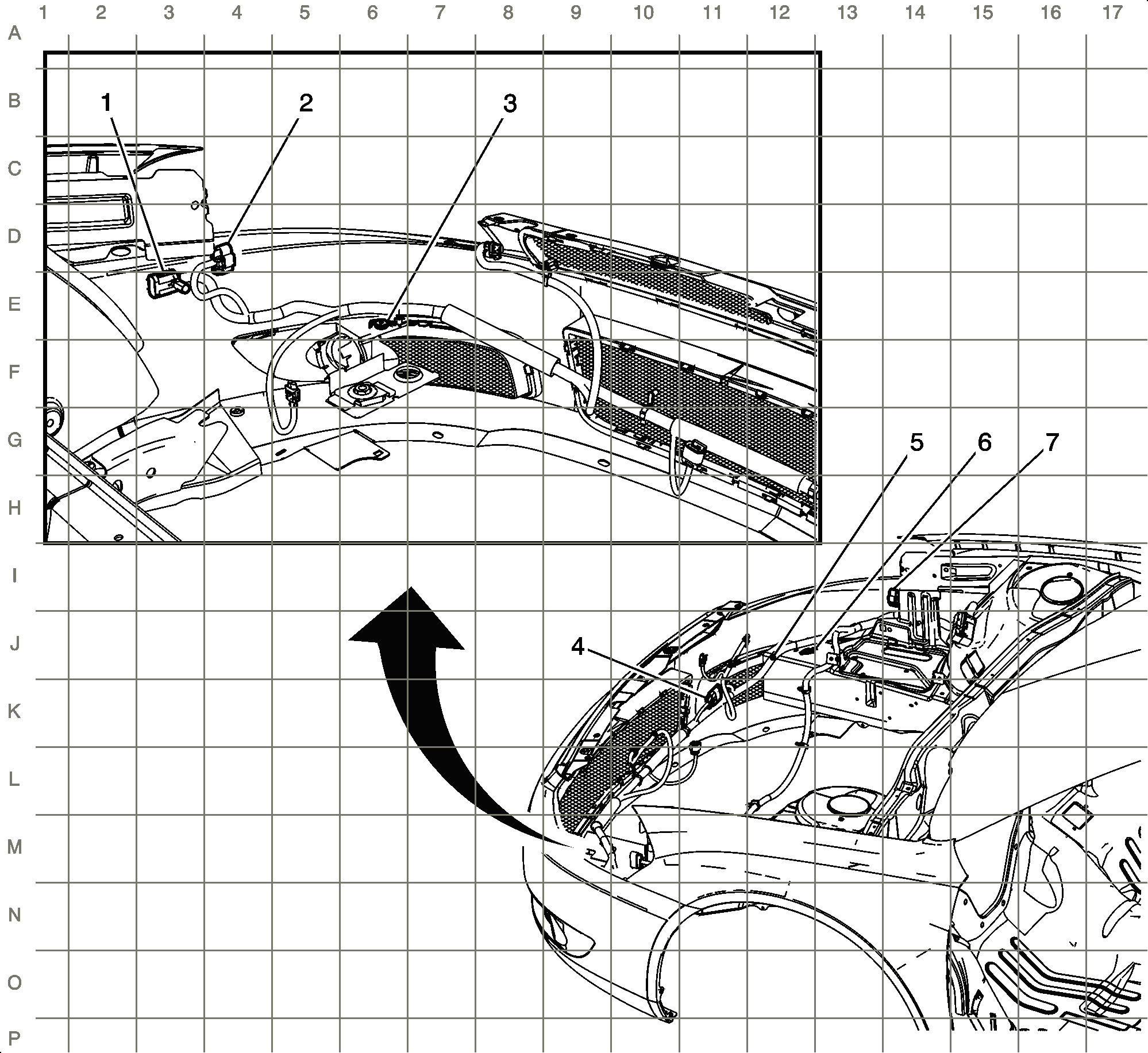

Fig 1: Forward Lamp Harness Ground View
GM1913217Courtesy of GENERAL MOTORS COMPANY
