Ground Views: G302

G302

Component Name Callout
X302 1
X360 (9C1 or 9C3) 2
G302 3
X356 4
X313 5

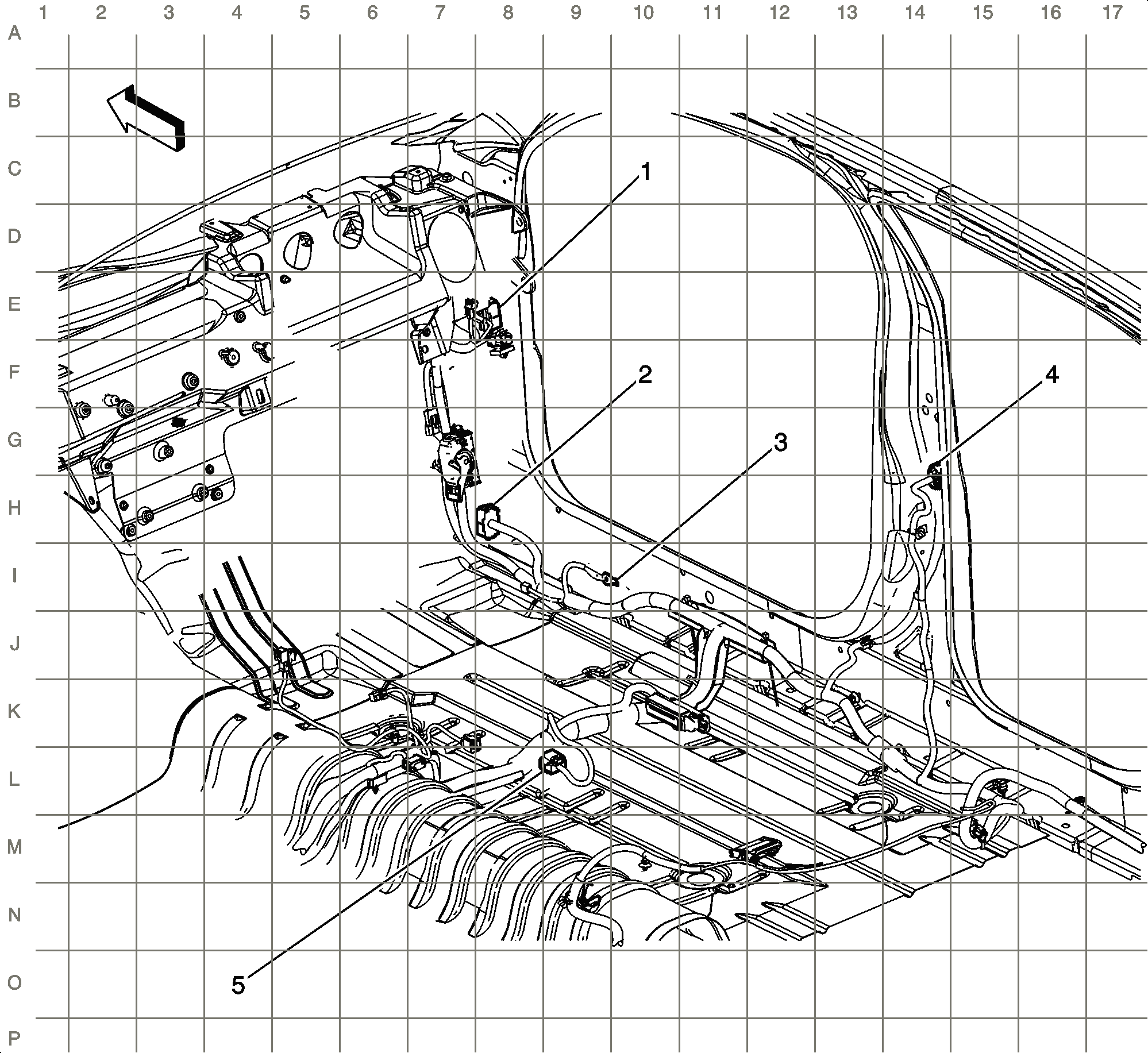

Fig 1: Body Harness Ground View - Right Front Passenger Compartment
GM1912934Courtesy of GENERAL MOTORS COMPANY
