Telematics Communication Interface Control Module X1

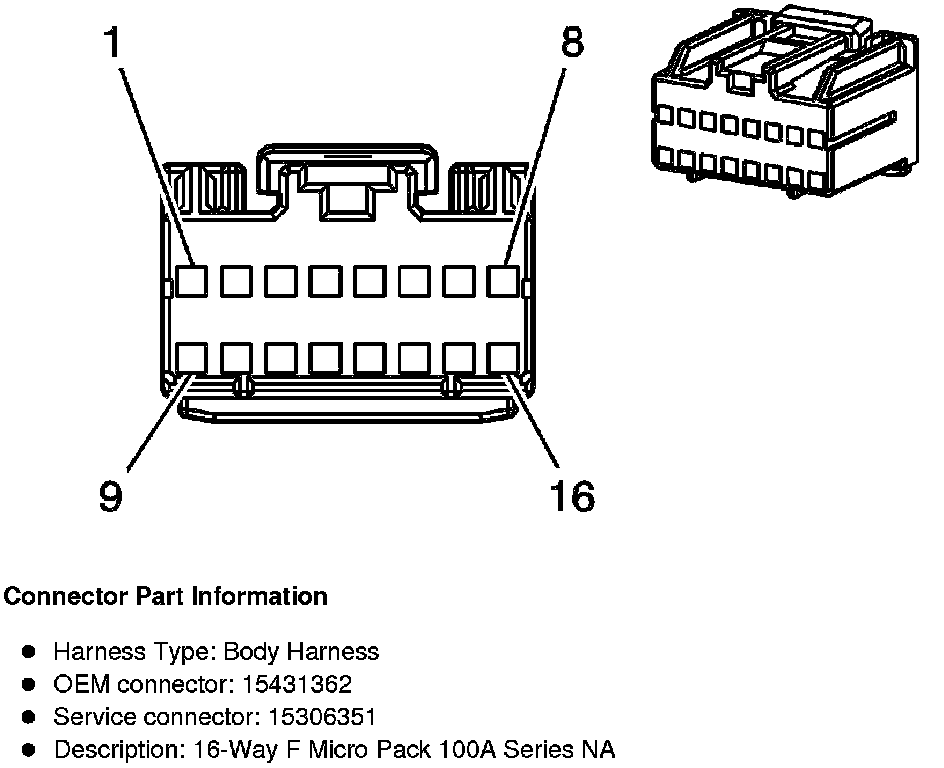

Component Connector End Views

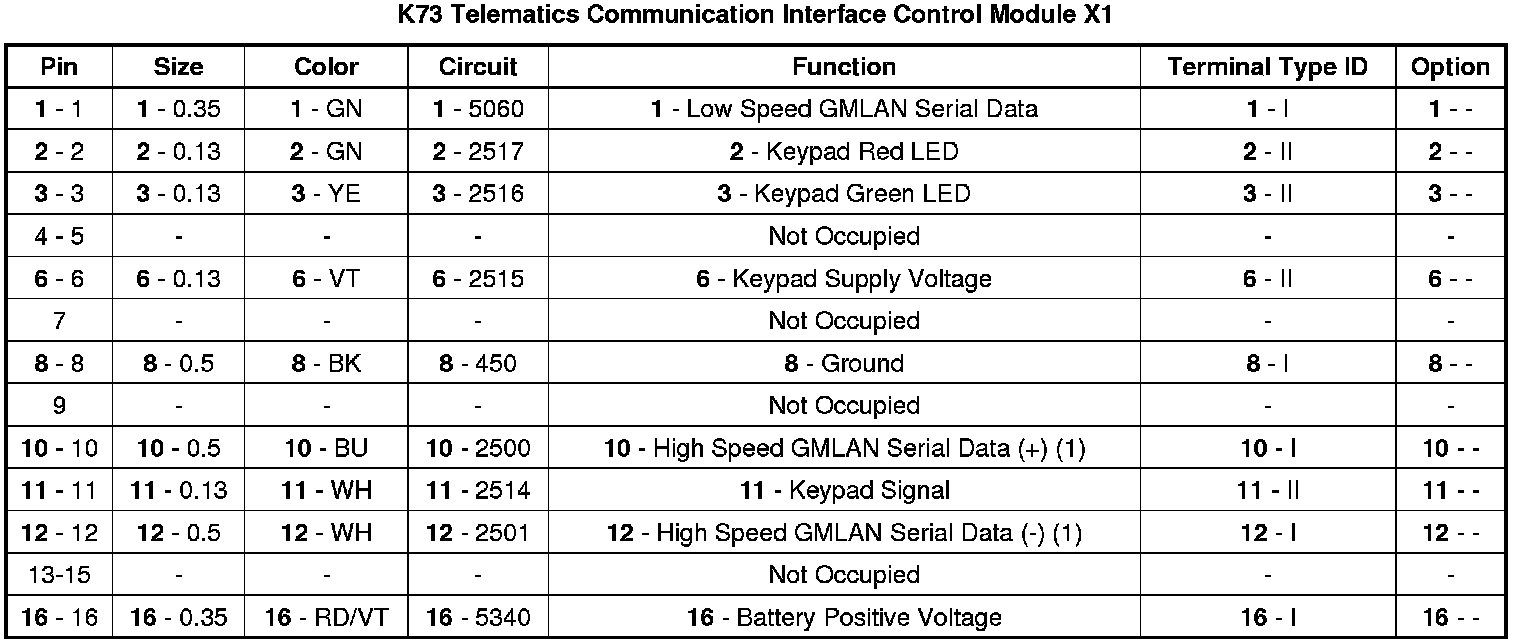

K73 Telematics Communication Interface Control Module X1
