Fuel Pump Driver Control Module

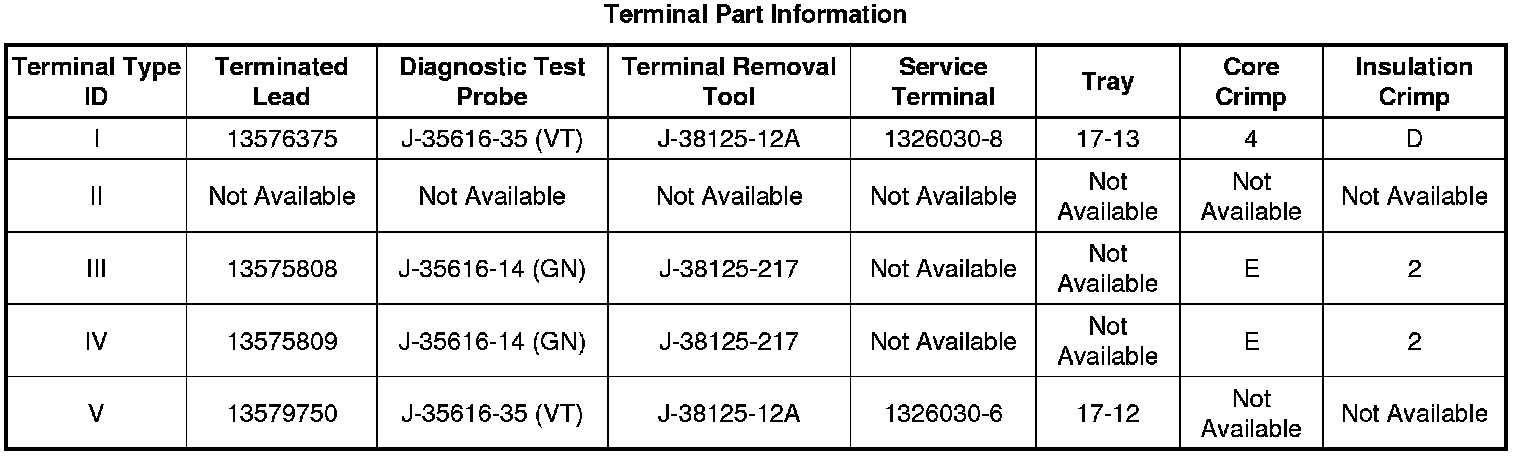

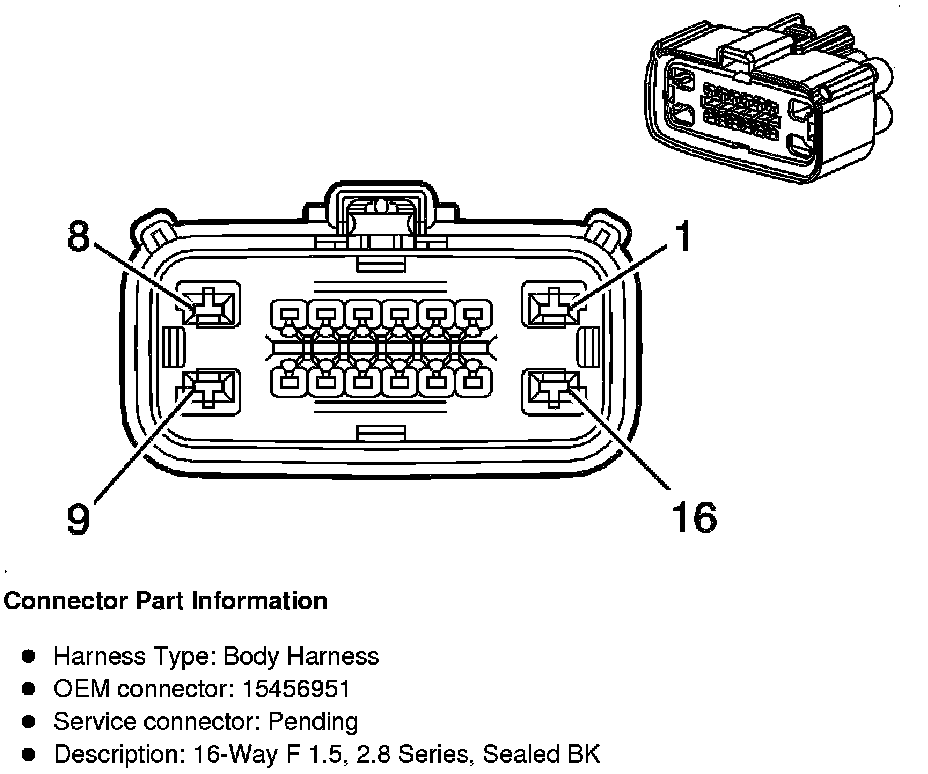

Component Connector End Views

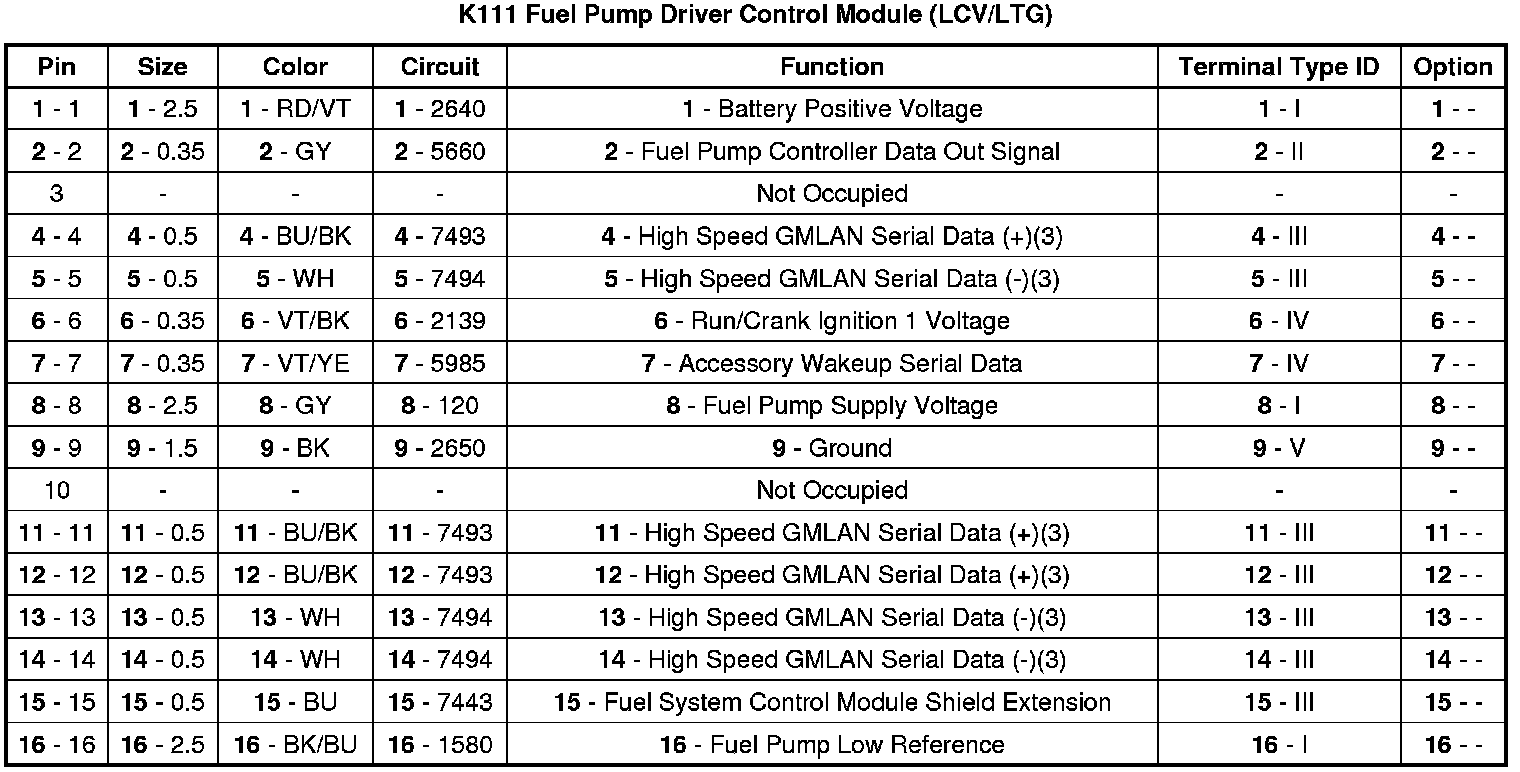

K111 Fuel Pump Driver
Control Module
(LCV/LTG)
