Seat Memory Control Module X4 (KA1 with A45)

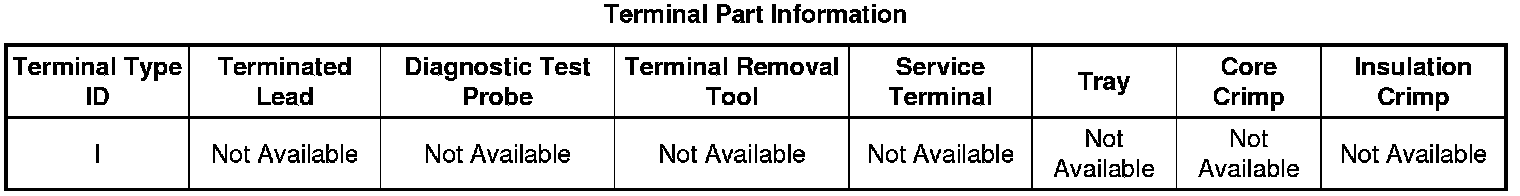

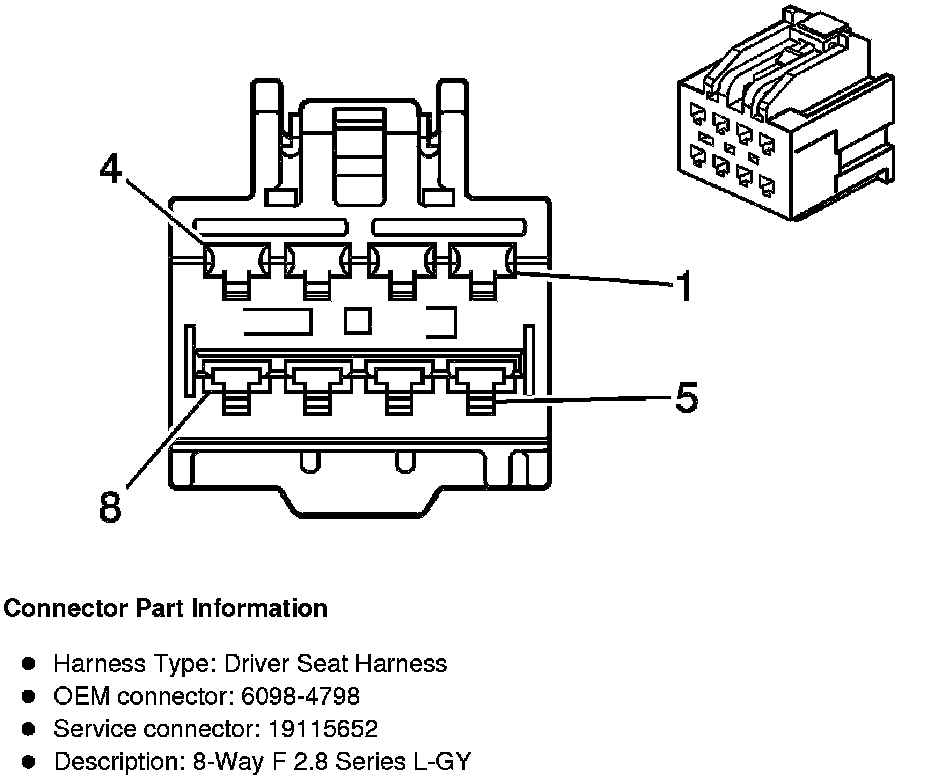

Component Connector End Views

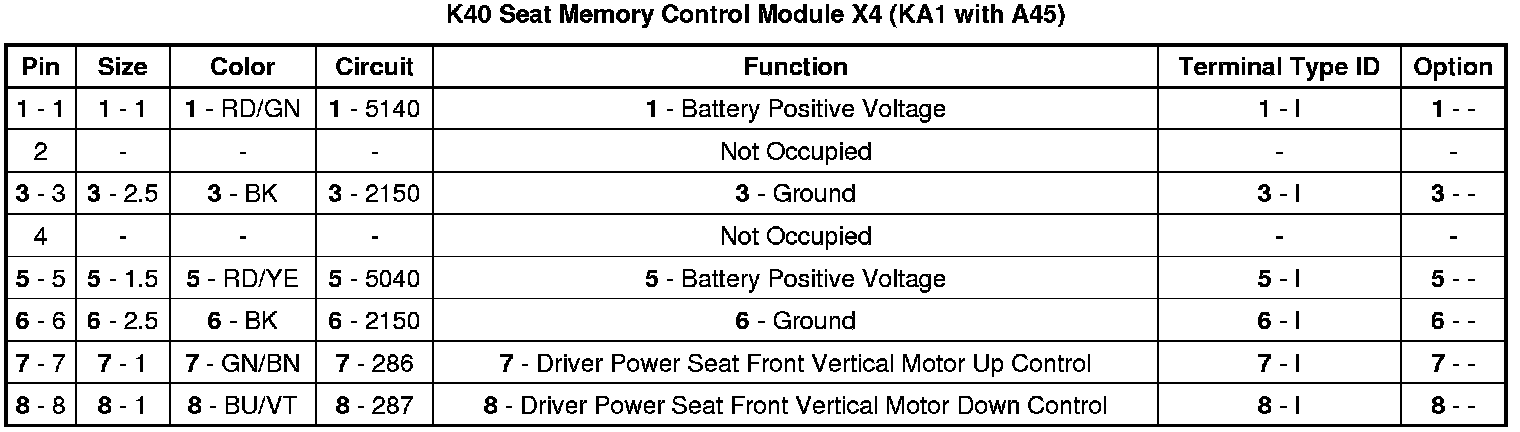

K40 Seat Memory
Control Module
X4 (KA1 with A45)
