Left Rear of Engine Compartment Components

Left Rear of Engine Compartment Components

Items
1:  B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch
2:  M75 Windshield Wiper Motor M75 Windshield Wiper Motor
3:  K17 Electronic Brake Control Module K17 Electronic Brake Control Module
4:  X50D Fuse Block - Battery X50D Fuse Block - Battery X1X50D Fuse Block - Battery X2X50D Fuse Block - Battery X5X50D Fuse Block - Battery X6X50D Fuse Block - Battery X7
5:  X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1X50A Fuse Block - Underhood X2X50A Fuse Block - Underhood X3X50A Fuse Block - Underhood X4X50A Fuse Block - Underhood X5X50A Fuse Block - Underhood X6
6:  C1 Battery
7:  B18 Battery Current Sensor B18 Battery Current Sensor
8:  K20 Engine Control Module K20 Engine Control Module X1K20 Engine Control Module X2 (LCV)K20 Engine Control Module X2 (LTG, LUK)K20 Engine Control Module X3 (LCV, LTG)K20 Engine Control Module X3 (LUK)
9:  B19B Brake Booster Vacuum Sensor (FX3) B19B Brake Booster Vacuum Sensor

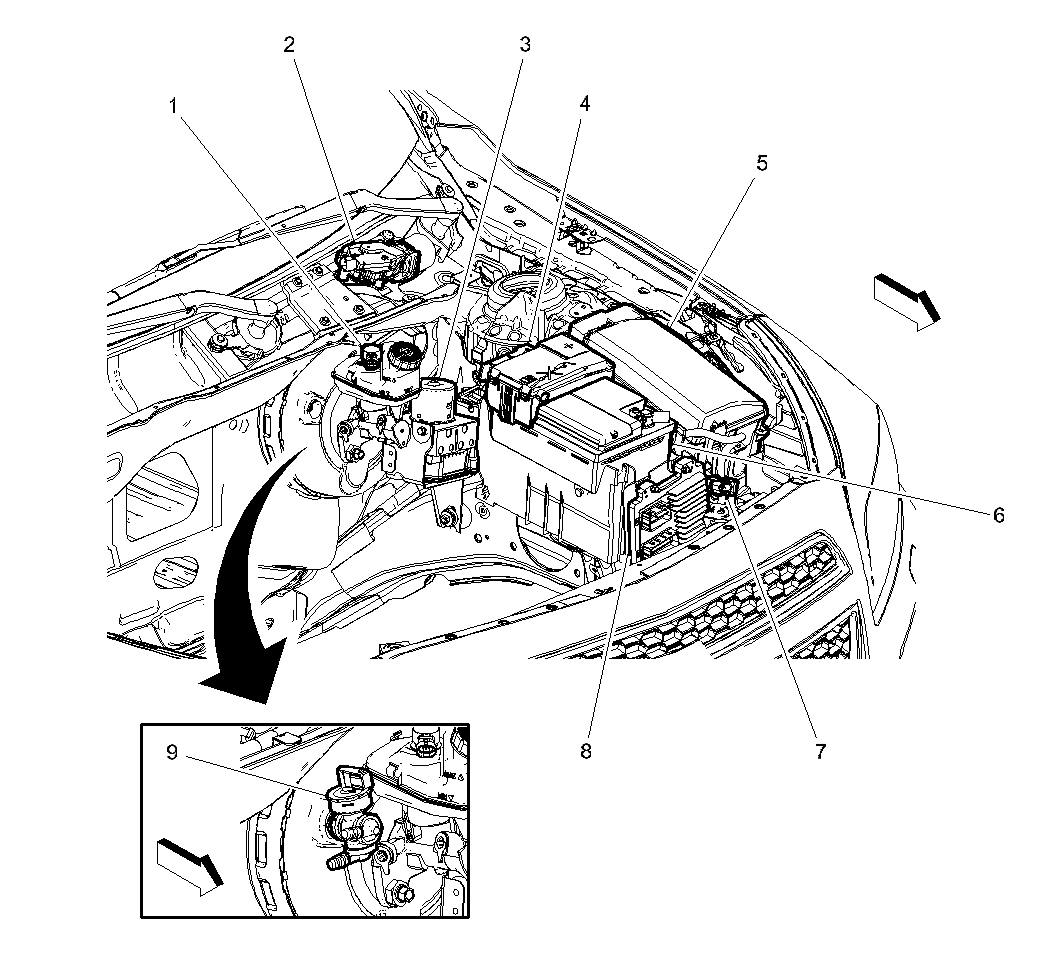

Fig 1: Left Rear of Engine Compartment Components
GM3271135Courtesy of GENERAL MOTORS COMPANY
