Right Side of Engine Compartment Components

Right Side of Engine Compartment Components

Items
1:  B75B Mass Air Flow/Intake Air Temperature Sensor (LUK) B75B Mass Air Flow/Intake Air Temperature Sensor (LUK)
2:  KR14 Brake Booster Pump Motor Relay (HP6) KR14 Brake Booster Pump Motor Relay X1KR14 Brake Booster Pump Motor Relay X2
3:  M9 Brake Booster Pump Motor (HP6)

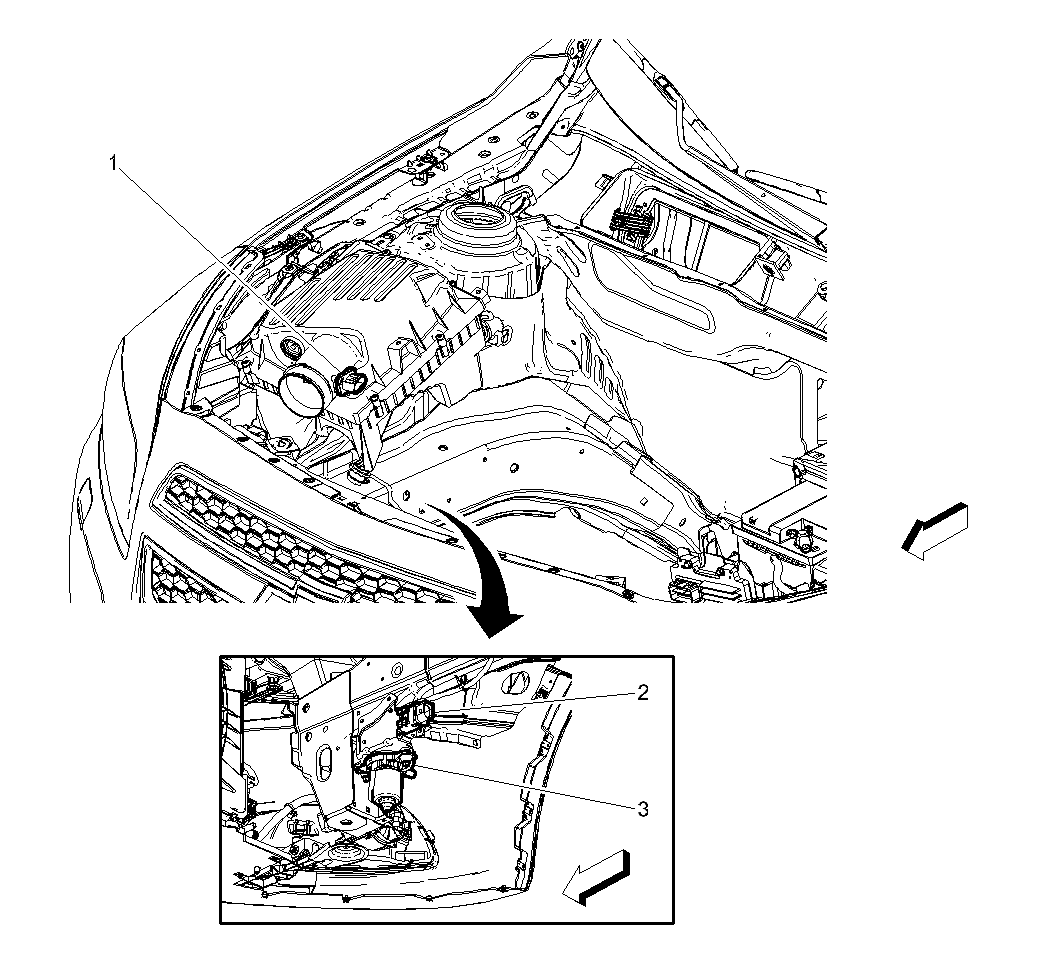

Fig 1: Right Side of Engine Compartment Components
GM2668681Courtesy of GENERAL MOTORS COMPANY
