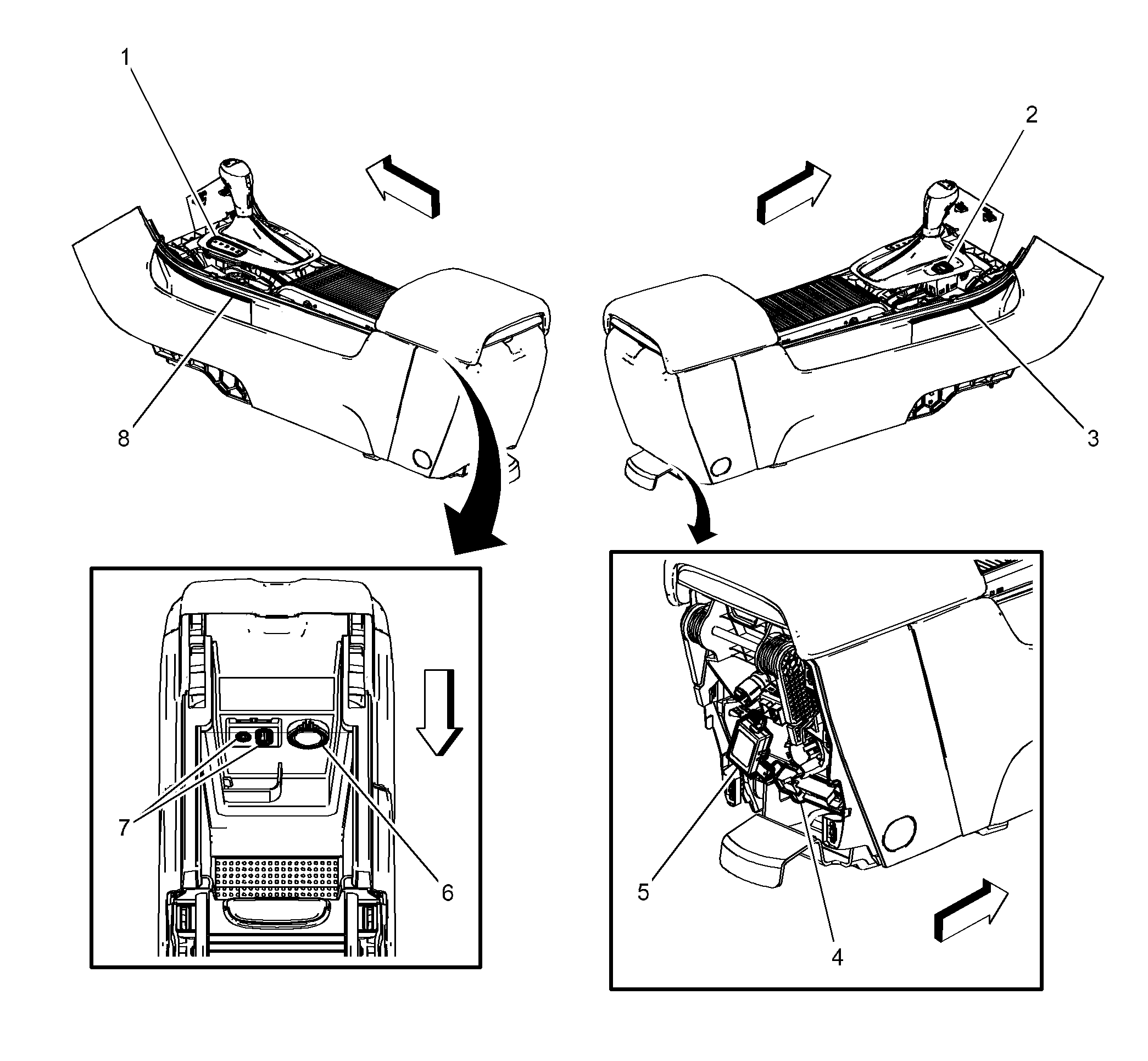

Floor Console Components
Floor Console Components
| Items |
|---|
| 1: P2 Transmission Shift Lever Position Indicator (MDK or MH8) P2 Transmission Shift Lever Position Indicator |
| 2: S91 Park Brake Control Switch S91 Park Brake Control Switch |
| 3: E1Y Accent Lamp - Center Console Right E1Y Accent Lamp - Center Console Right |
| 4: K89 Immobilizer Control Module K89 Immobilizer Control Module |
| 5: T10K Keyless Entry Antenna - Center Console Rear (BTM) T10K Keyless Entry Antenna - Center Console Rear |
| 6: X80H Accessory Power Receptacle - Center Console (KPA) X80H Accessory Power Receptacle (KPA) |
| 7: X83 Auxiliary Audio Input (USR) X83 Auxiliary Audio Input |
| 8: E1X Accent Lamp - Center Console Left E1X Accent Lamp - Center Console Left |
