Front of Instrument Panel Components

Items
1: E1G Accent Lamp - Left Instrument Panel E1G Accent Lamp - Left Instrument Panel
2: P16 Instrument Cluster P16 Instrument Cluster
3: E1W Accent Lamp - Instrument Panel E1GA Accent Lamp - Left Middle Instrument Panel E1H Accent Lamp - Right Instrument Panel
4: P17 Info Display Module P17 Info Display Module X1 (UEW, UFU or UHQ)P17 Info Display Module X2 (UEW, UFU or UHQ)
5: E1W Accent Lamp - Instrument Panel E1GA Accent Lamp - Left Middle Instrument Panel E1H Accent Lamp - Right Instrument Panel
6: X80G Accessory Power Receptacle - Instrument Panel X80G Accessory Power Receptacle - Instrument Panel
7: S48D Multifunction Switch 2 - Instrument Panel S48D Multifunction Switch 2 - Instrument Panel
8: S48C Multifunction Switch 1 - Instrument Panel S48C Multifunction Switch 1 - Instrument Panel
9: A26 HVAC Controls A26 HVAC Controls
10: A20 Radio/HVAC Controls A22 Radio Controls
11: S38 Ignition Mode Switch (BTM) S38 Ignition Mode Switch
12: X84 Data Link Connector X84 Data Link Connector
13: S30 Headlamp Switch S30 Headlamp Switch

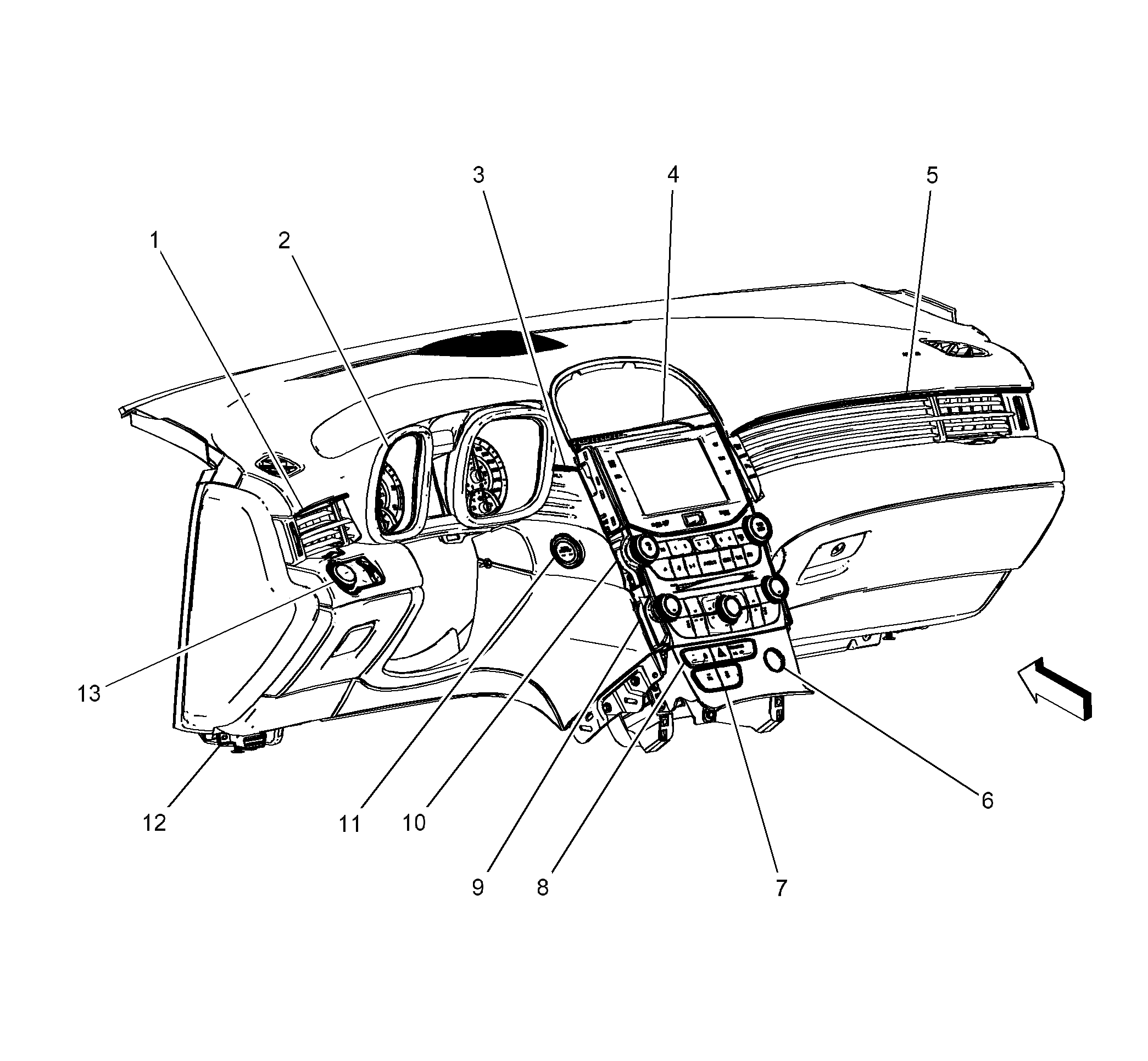

Fig 1: Front of Instrument Panel Components

Courtesy of GENERAL MOTORS COMPANY
