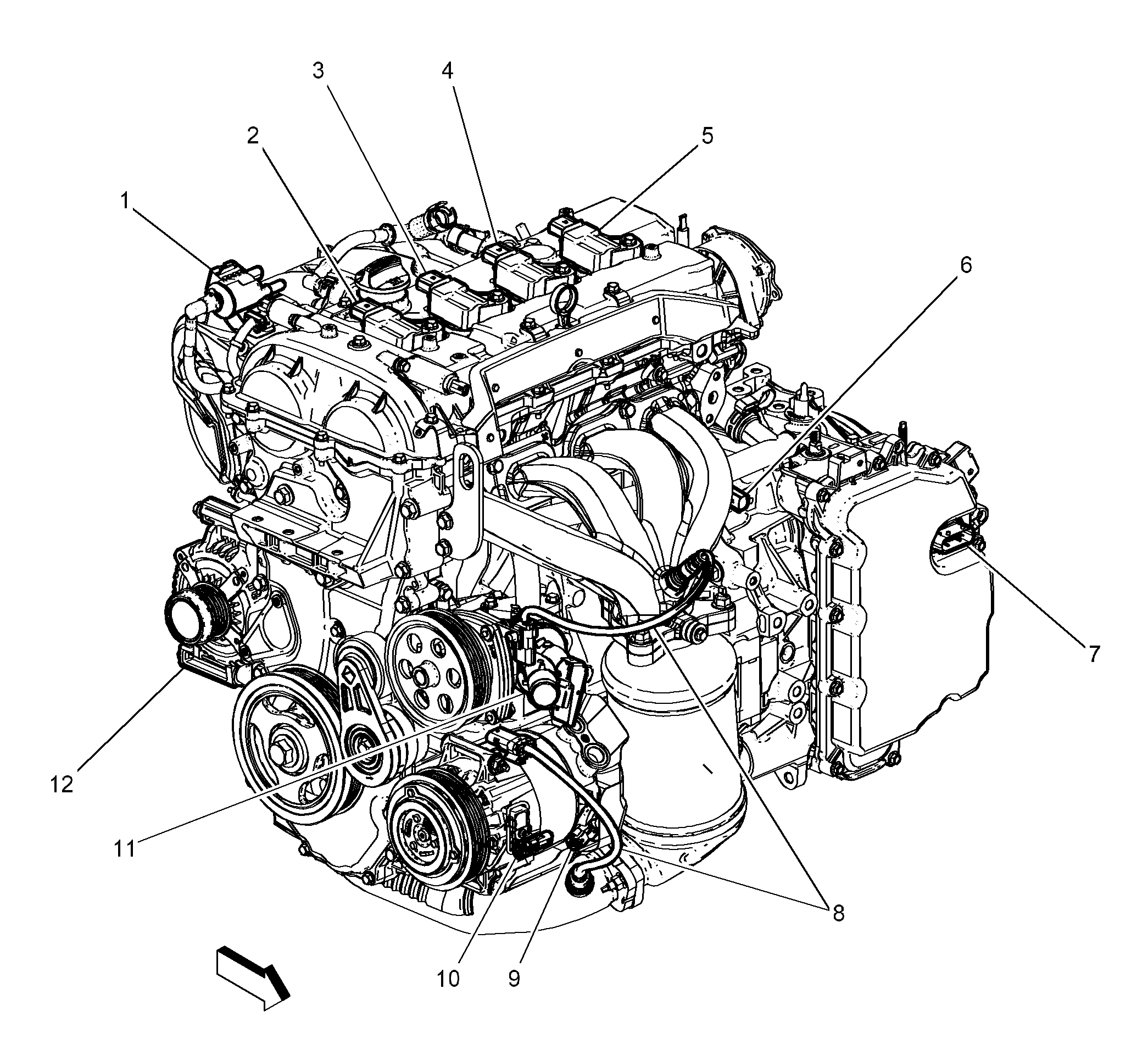

Right Front of Engine Components (LCV)
Right Front of Engine Components (LCV)
| Items |
| 1:
Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve (LCV, LTG)Q12 Evaporative Emission Purge Solenoid Valve (LUK) |
| 2:
T8A Ignition Coil 1 T8A Ignition Coil 1 (LCV, LTG)T8A Ignition Coil 1 (LUK) |
| 3:
T8B Ignition Coil 2 T8B Ignition Coil 2 (LCV, LTG)T8B Ignition Coil 2 (LUK) |
| 4:
T8C Ignition Coil 3 T8C Ignition Coil 3 (LCV, LTG)T8C Ignition Coil 3 (LUK) |
| 5:
T8D Ignition Coil 4 T8D Ignition Coil 4 (LCV, LTG)T8D Ignition Coil 4 (LUK) |
| 6:
Q44 Engine Oil Pressure Control Solenoid Valve (LCV or LTG) Q44 Engine Oil Pressure Control Solenoid Valve (LTG) |
| 7:
Q8 Control Solenoid Valve Assembly Q8 Control Solenoid Valve Assembly X1 (M7W)Q8 Control Solenoid Valve Assembly X1 (MHH, MH8)Q8 Control Solenoid Valve Assembly X2 (M7W)Q8 Control Solenoid Valve Assembly X2 (MHH, MH8)Q8 Control Solenoid Valve Assembly X3 (M7W)Q8 Control Solenoid Valve Assembly X3 (MHH, MH8)Q8 Control Solenoid Valve Assembly X4 (M7W)Q8 Control Solenoid Valve Assembly X4 (MHH, MH8) |
| 8:
B52A Heated Oxygen Sensor 1 B52A Heated Oxygen Sensor 1 (LCV, LTG)B52A Heated Oxygen Sensor 1 (LUK) |
| 9:
Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve |
| 10:
Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch |
| 11:
E41 Engine Coolant Thermostat Heater (LCV, LTG) E41 Engine Coolant Thermostat Heater (LCV/LTG) |
| 12:
G13 Generator G13 Generator X1G13 Generator X2 |
Courtesy of GENERAL MOTORS COMPANY
