Audio Disc Player, USB, Auxiliary In and Memory Card Receptacle Replacement

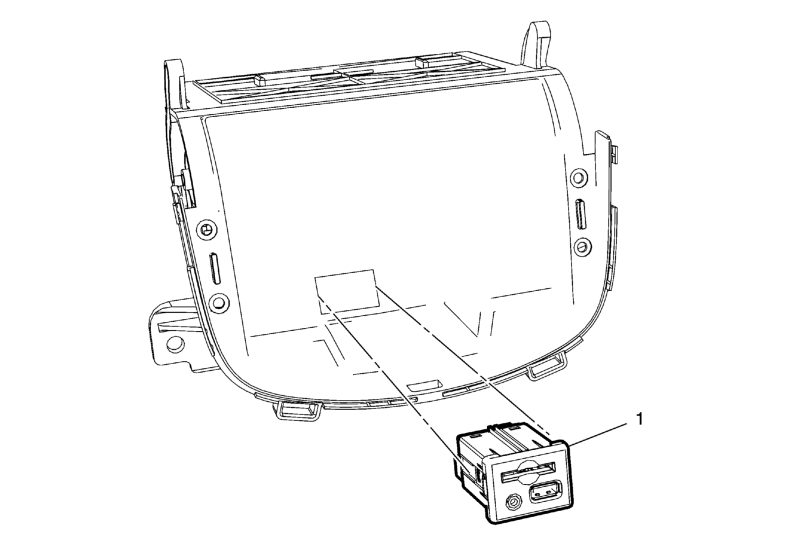

Fig 1: Audio Disc Player, USB, Auxiliary In and Memory Card Receptacle

Courtesy of GENERAL MOTORS COMPANY

Audio Disc Player, USB, Auxiliary In, and Memory Card Receptacle Replacement

Callout	Component Name
Preliminary Procedure Remove the radio control switch. Refer to Radio Control Switch Replacement .
1	Audio Disc Player, USB, Auxiliary In, and Memory Card Receptacle Procedure Use a flat-bladed tool to release the retaining noses.
