Exhaust Aftertreatment Fuel Injector (Diesel)

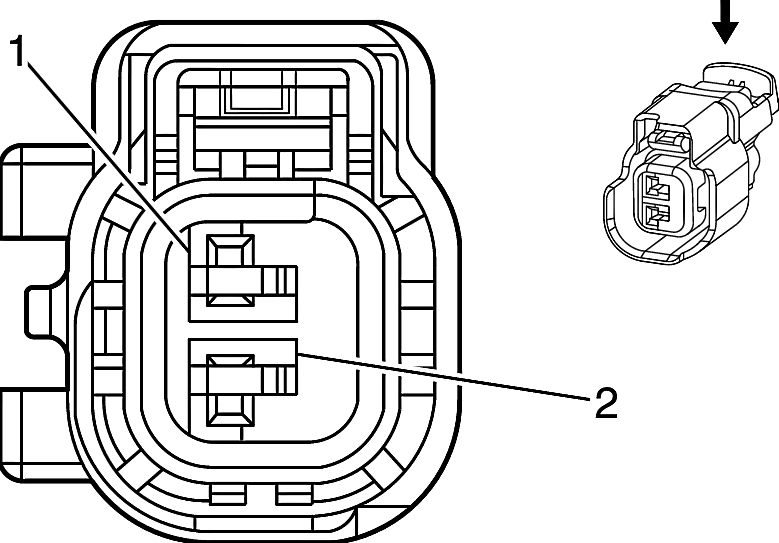

GM1862103Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness: Engine
  • OEM: 34062-0025
  • Service: 13580230
  • Description: 2-Way F 1.5 Series, Sealed (BK)
Terminal Part Information
  • Terminal/Tray: 34083-3002/28
  • Core/Insulation Crimp: E/D
  • Release Tool/Test Probe: J-38125-217/J-35616-14 (GN)
Exhaust Aftertreatment Fuel Injector (Diesel)

Pin Wire Circuit Function
1 0.5 PU 2927 Hydrocarbon Injector Low Control
2 0.5 D-BU 2926 Hydrocarbon Injector High Control
