Exhaust Gas Recirculation (EGR) Temperature Sensor 1 (Diesel)

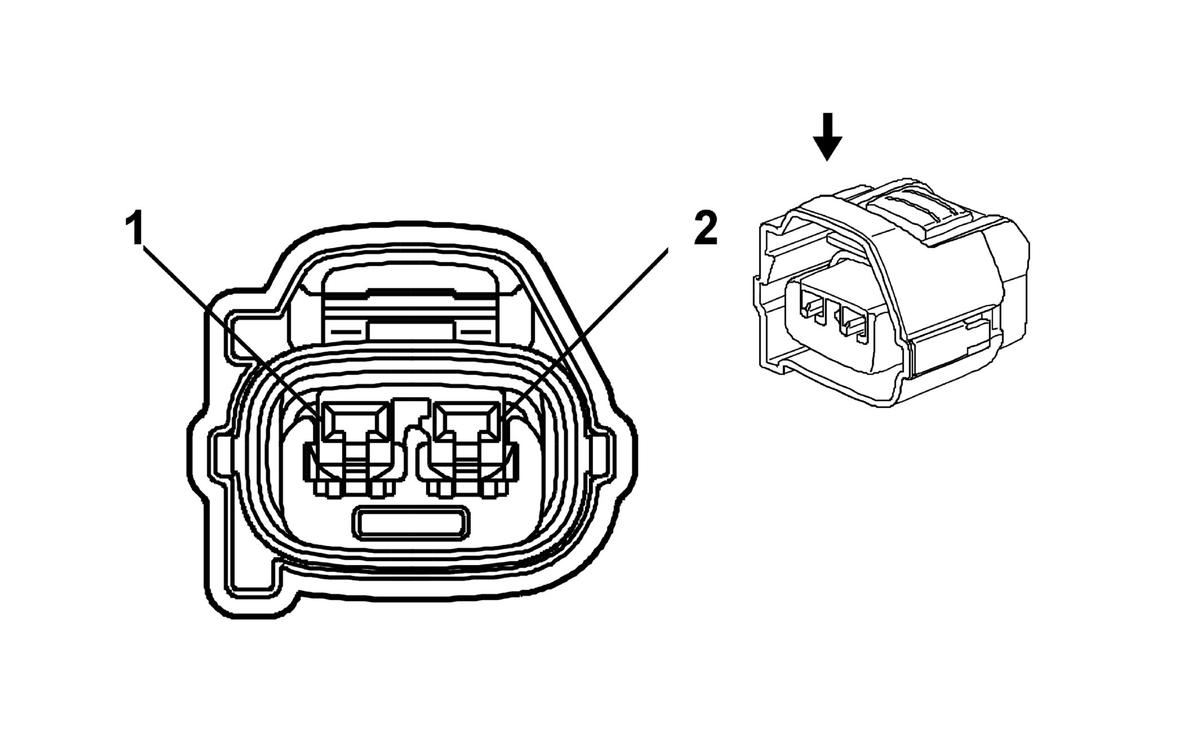

GM2388842Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness: Engine
  • OEM: 7283-7020-10
  • Service: 13576415
  • Description: 2-Way F 2.3 Series, Sealed (D-GY)

Terminal Part Information
  • Terminal/Tray: 7116-4025/11
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 15313892/J-35616-18 (BK)
Exhaust Gas Recirculation (EGR) Temperature Sensor 1 (Diesel)

Pin Wire Circuit Function
1 0.5 PU/WH 7584 Exhaust Gas Recirculation Temperature Sensor 1 Supply Voltage
2 0.5 BN 6274 Low Reference
