Fuel Injector 4 (Diesel)

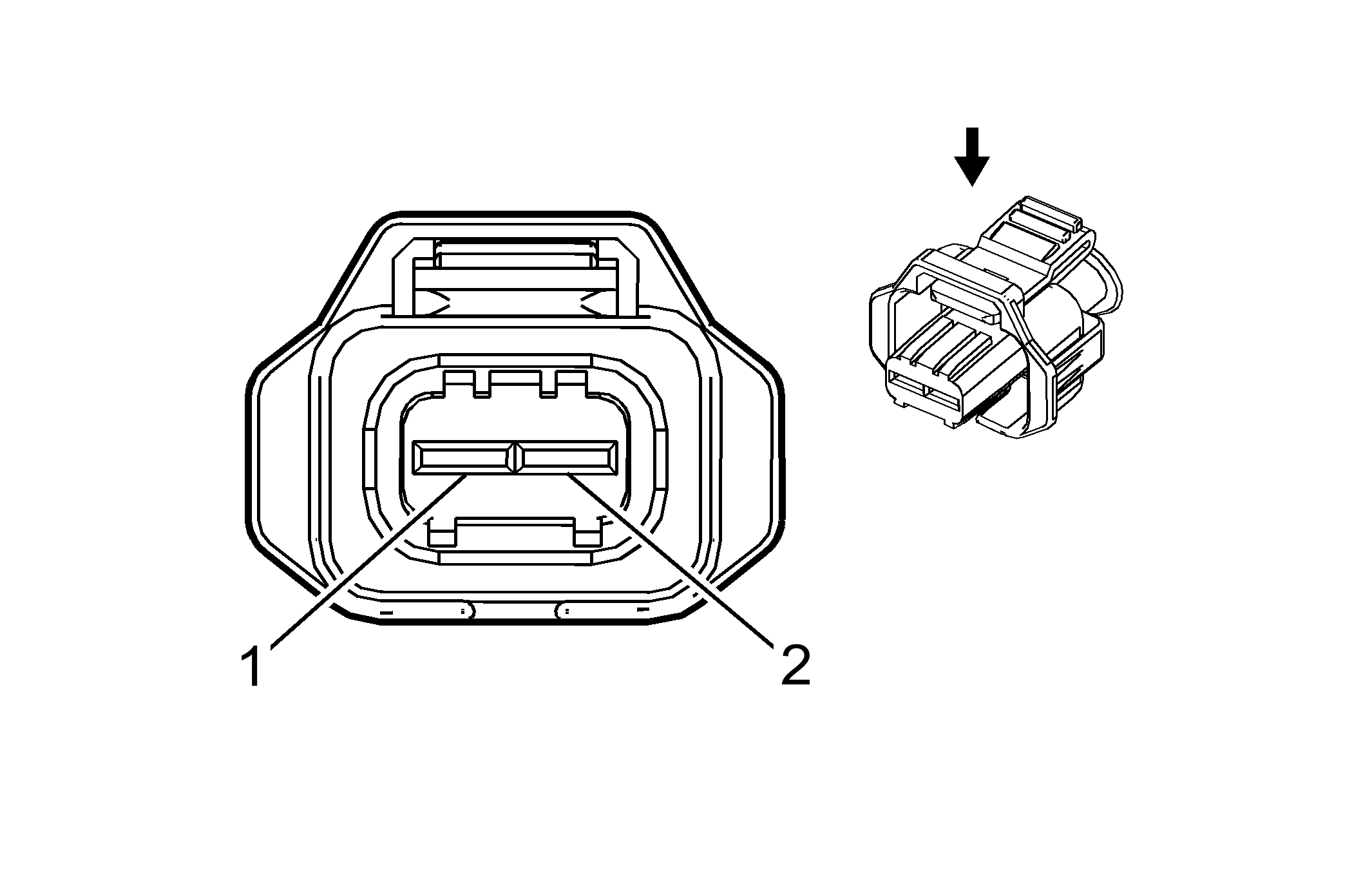

GM2424956Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness: Engine
  • OEM: 1928404114
  • Service: 13576410
  • Description: 2-Way F 2.8 Series Sealed (BK)
Terminal Part Information
  • Terminal/Tray: 1928498054/8
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: J-38125-561/J-35616-35 (VT)
Fuel Injector 4 (Diesel)

Pin Wire Circuit Function
1 0.8 L-BU/WH 4904 Direct Fuel Injector (DFI) High Voltage Supply Cylinder 4
2 0.8 L-BU 4804 Direct Fuel Injector (DFI) High Voltage Control Cylinder 4
