Engine Compartment Components

Front of Vehicle/Engine Compartment Component Views

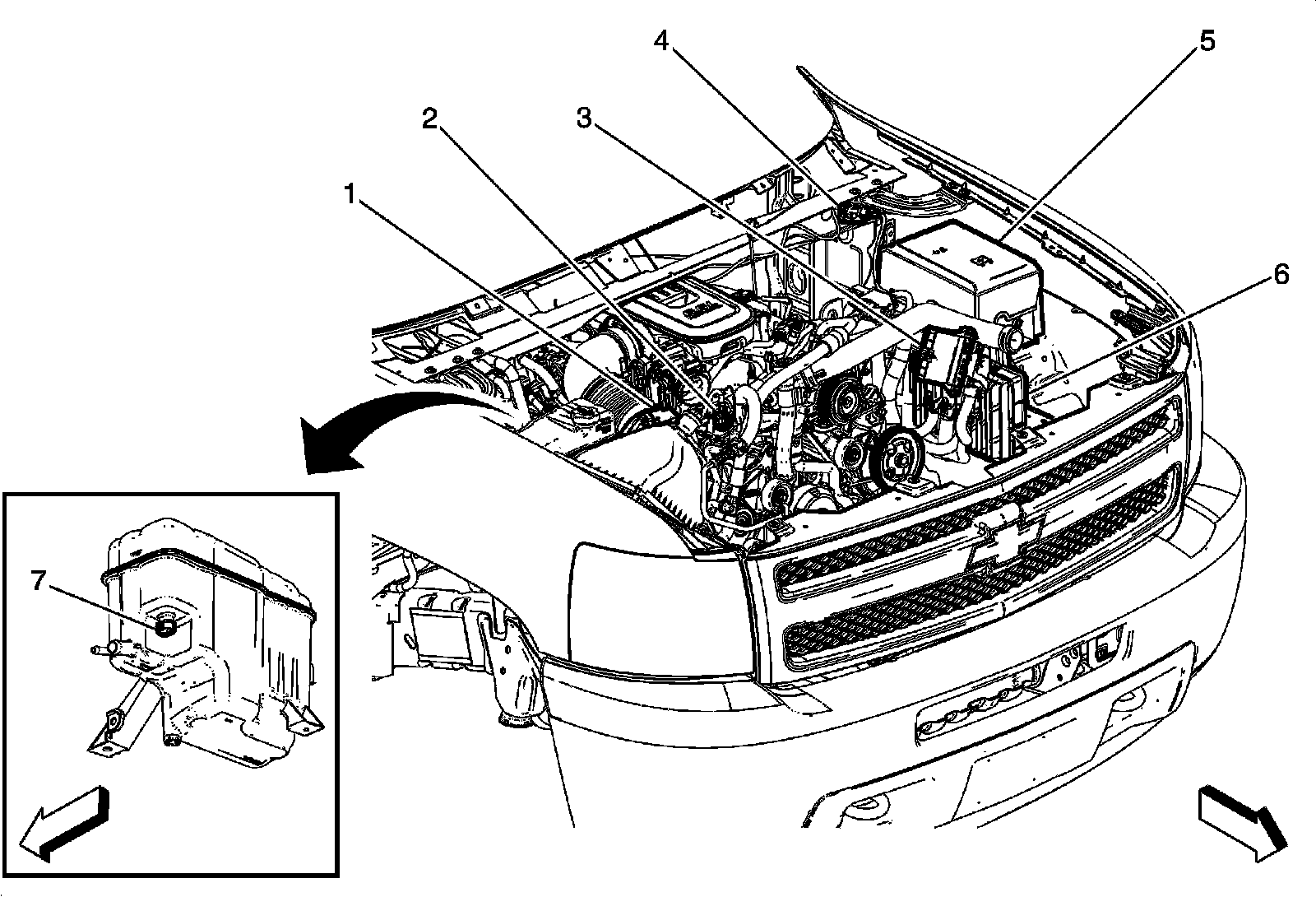

Engine Compartment Components (Diesel)





1 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor

2 - Charge Air Cooler Outlet Temperature Sensor

3 - Transmission Control Module (TCM)

4 - Nitrogen Oxides Sensor 1

5 - Fuse Block - Underhood

6 - Engine Control Module (ECM)

7 - Engine Coolant Level Switch
