Knock Sensor: Locations

Powertrain Component Views

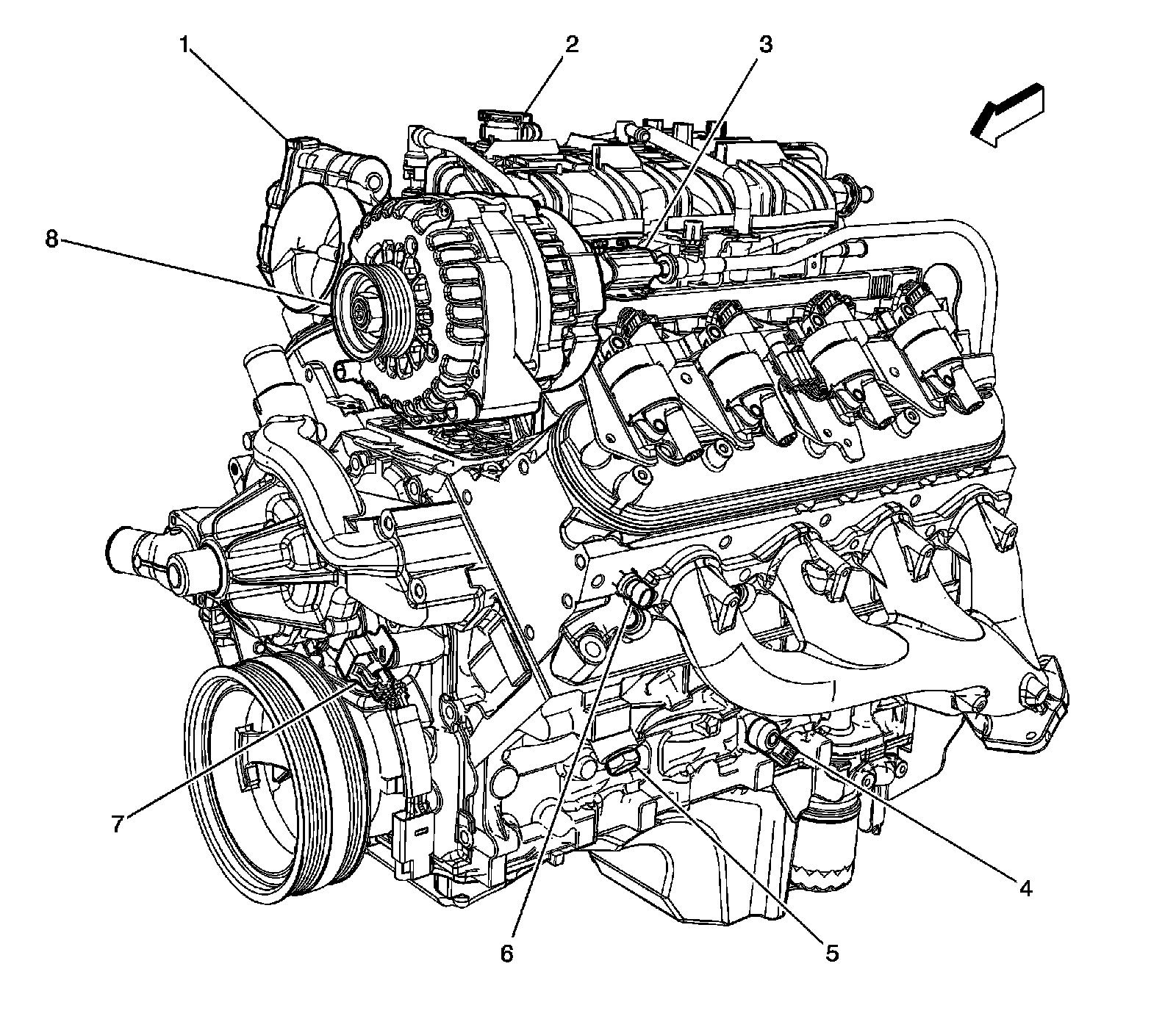

Front of the Engine Components (L20, L96, L9H, LC9, or LMG)





1 - Throttle Body

2 - Manifold Absolute Pressure (MAP) Sensor

3 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve

4 - Knock Sensor (KS) 1

5 - Engine Block Heater

6 - Engine Coolant Temperature (ECT) Sensor

7 - Camshaft Position (CMP) Sensor

8 - Generator
