Wheel Alignment Specifications



WHEEL ALIGNMENT SPECIFICATIONS

2500 and 3500 Regular Cab:

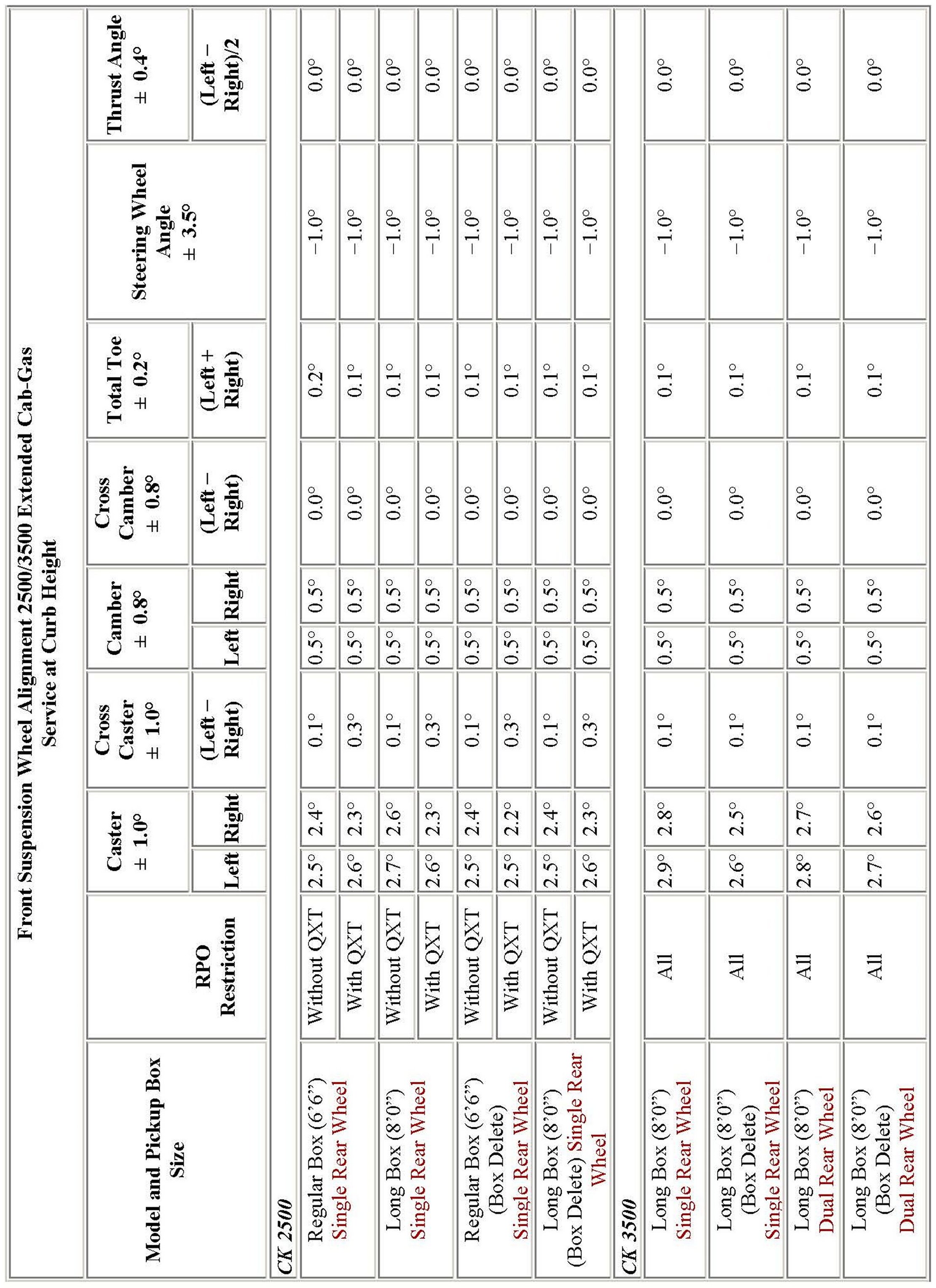

2500 and 3500 Extended Cab:

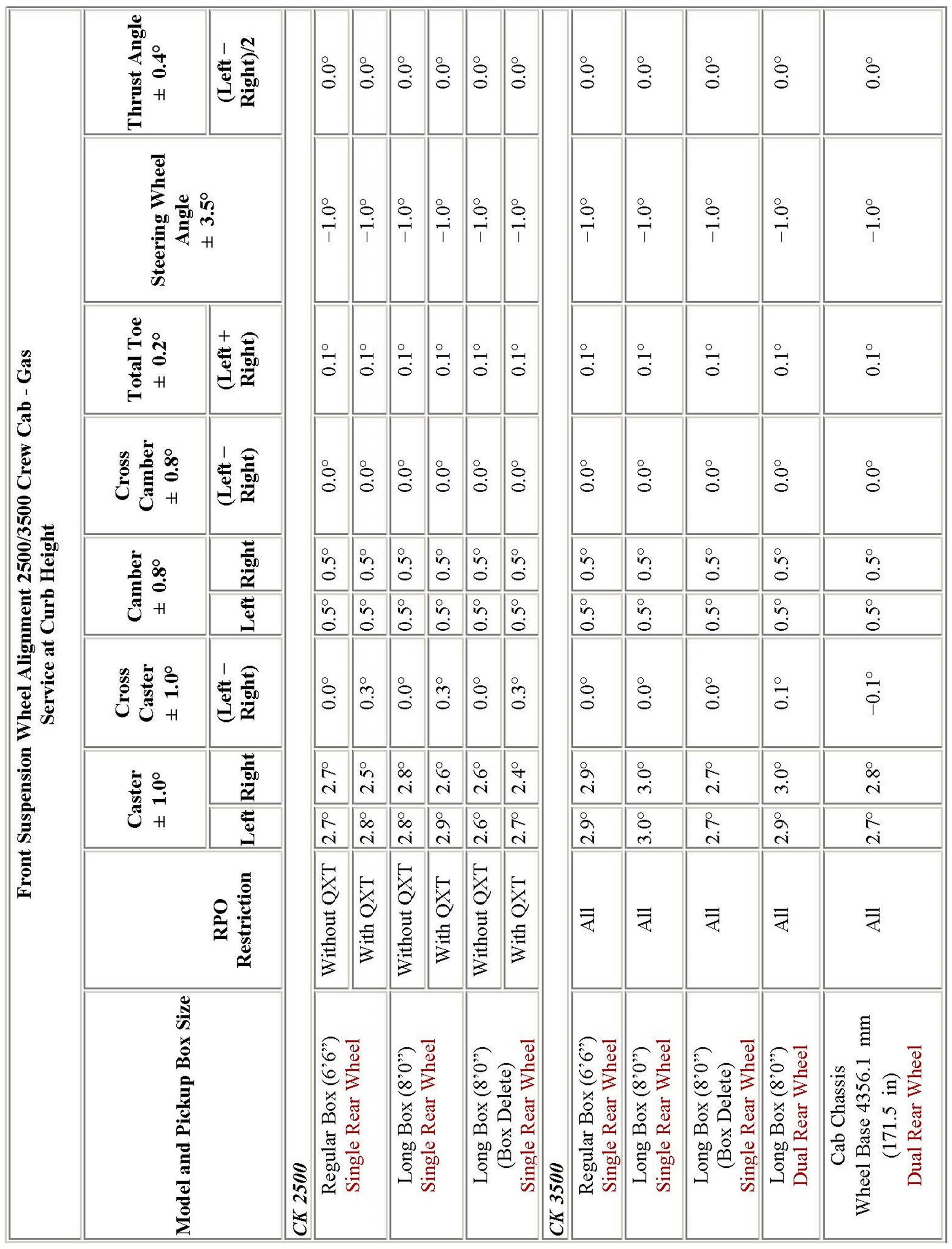

2500 and 3500 Crew Cab:






Alignment Condition: Full tank of fuel, no passengers and placed on flat level surface.
