Ambient Temperature Sensor / Switch HVAC
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Ambient Temperature Sensor / Switch HVAC

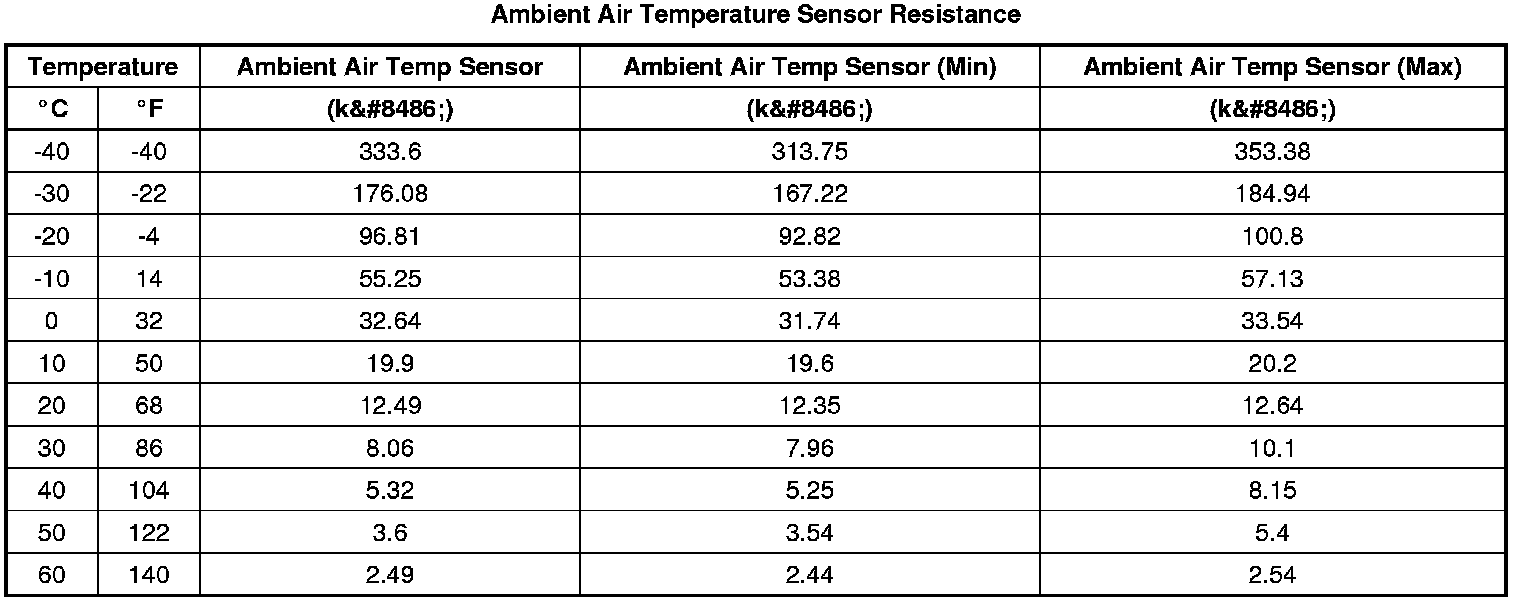

Ambient Air Temperature Sensor Resistance
