K20 Engine Control Module X1 (LUW) Connector End Views
WARNING: This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

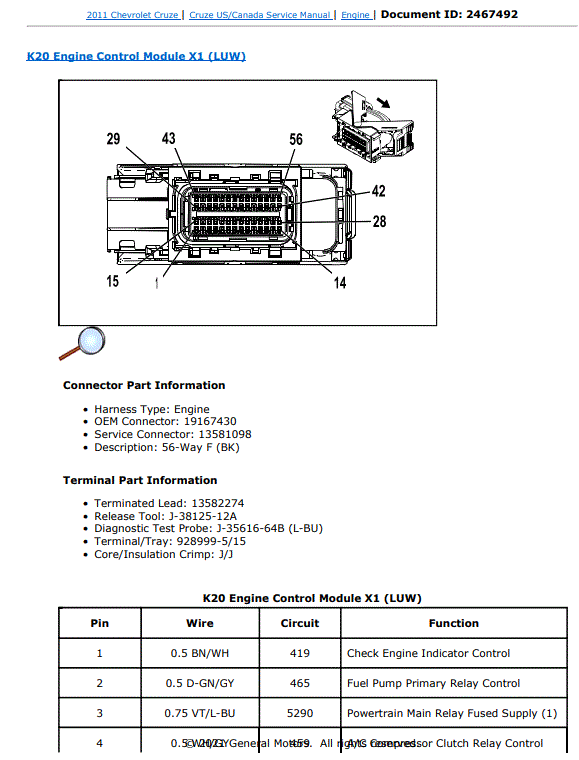

Fig 1: K20 Engine Control Module X1 (LUW) Connector End Views (1 of 4)
Courtesy of GENERAL MOTORS CORP.

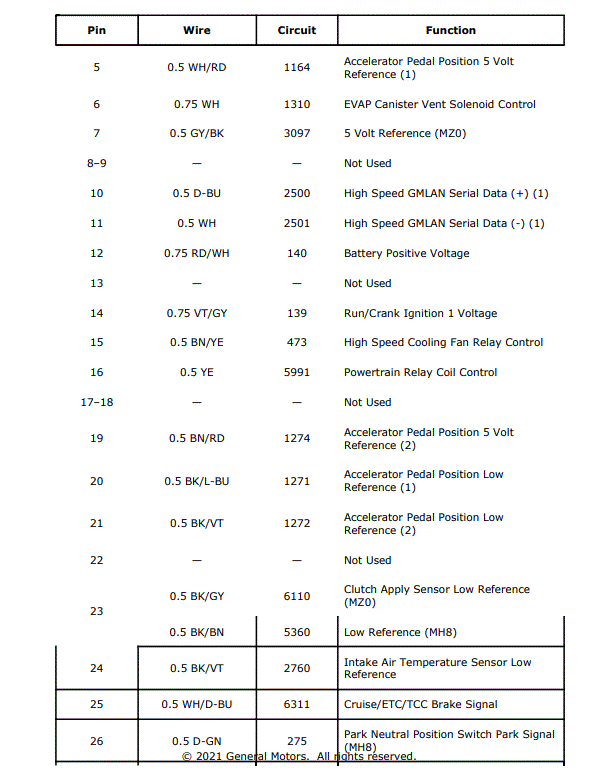

Fig 2: K20 Engine Control Module X1 (LUW) Connector End Views (2 of 4)
Courtesy of GENERAL MOTORS CORP.

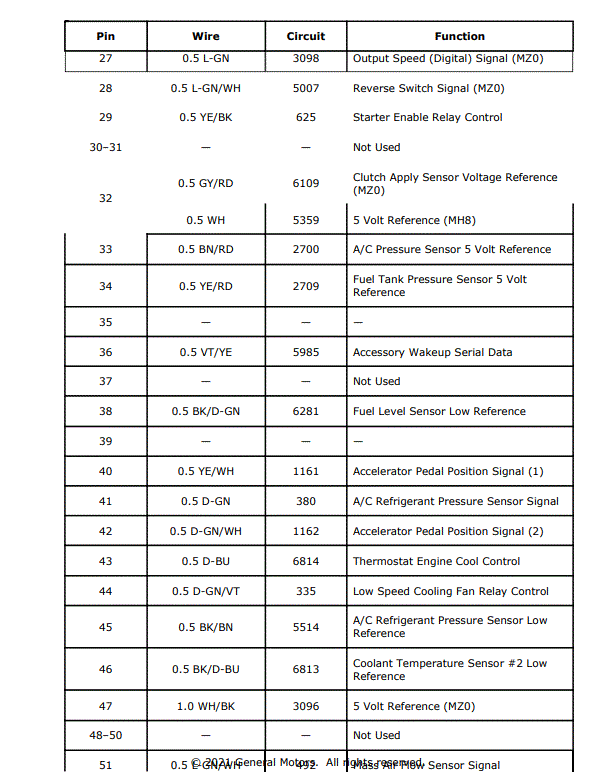

Fig 3: K20 Engine Control Module X1 (LUW) Connector End Views (3 of 4)
Courtesy of GENERAL MOTORS CORP.

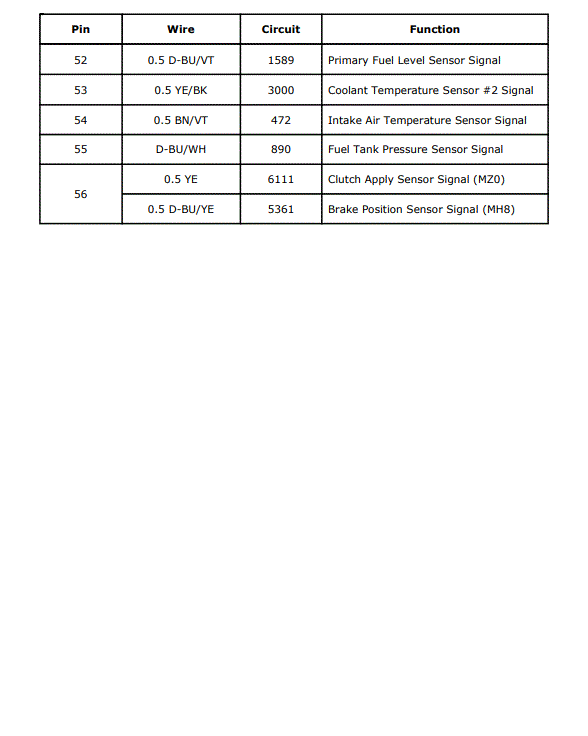

Fig 4: K20 Engine Control Module X1 (LUW) Connector End Views (4 of 4)
