P2 Automatic Transmission Shift Lever Position Indicator Connector End View

WARNING: This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

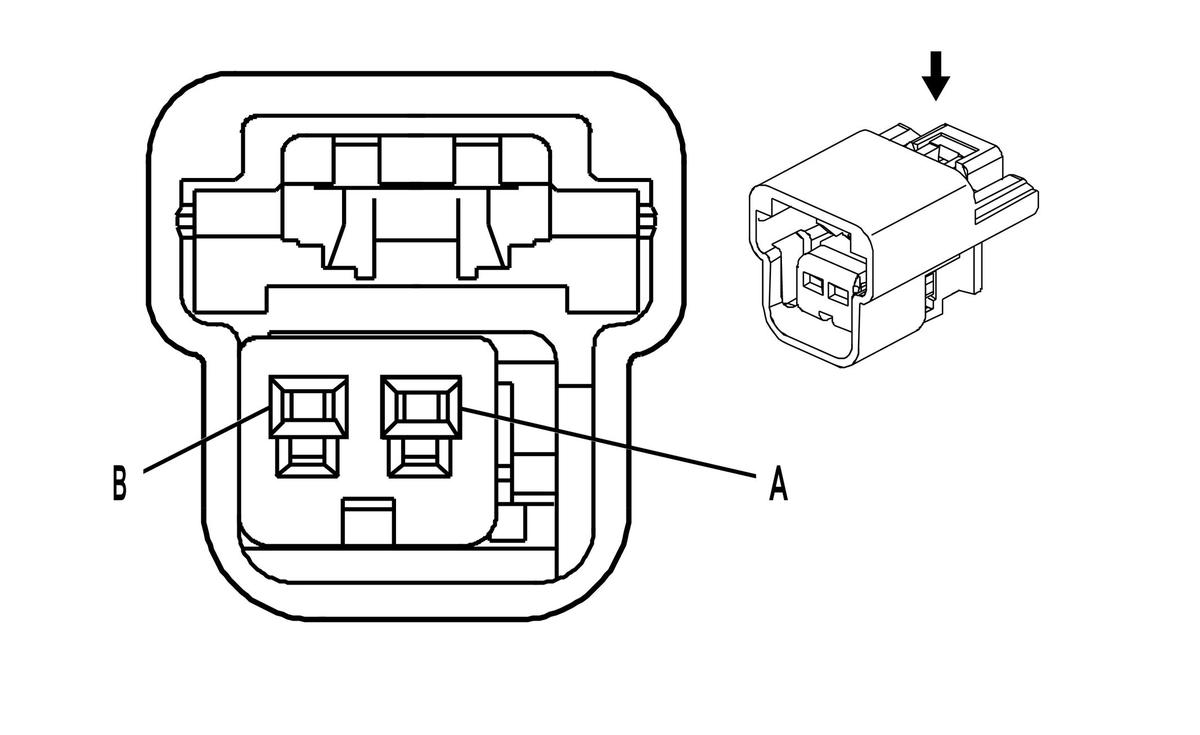

Fig 1: P2 Automatic Transmission Shift Lever Position Indicator Connector End View
GM1385747Courtesy of GENERAL MOTORS CORP.
P2 Automatic Transmission Shift Lever Position Indicator

Pin Wire Circuit Function
A 0.5 YE 6817 LED Backlight Dimming Control
B 0.5 BK 50 Ground
Connector Part Information
  • Harness: Instrument Panel
  • OEM: 19177520
  • Service Connector: 15306425
  • Description: 2-Way F GT 150 Series (BK)
Terminal Part Information
  • Terminated Lead: Pending
  • Release Tool: Pending
  • Diagnostic Test Probe: Pending
