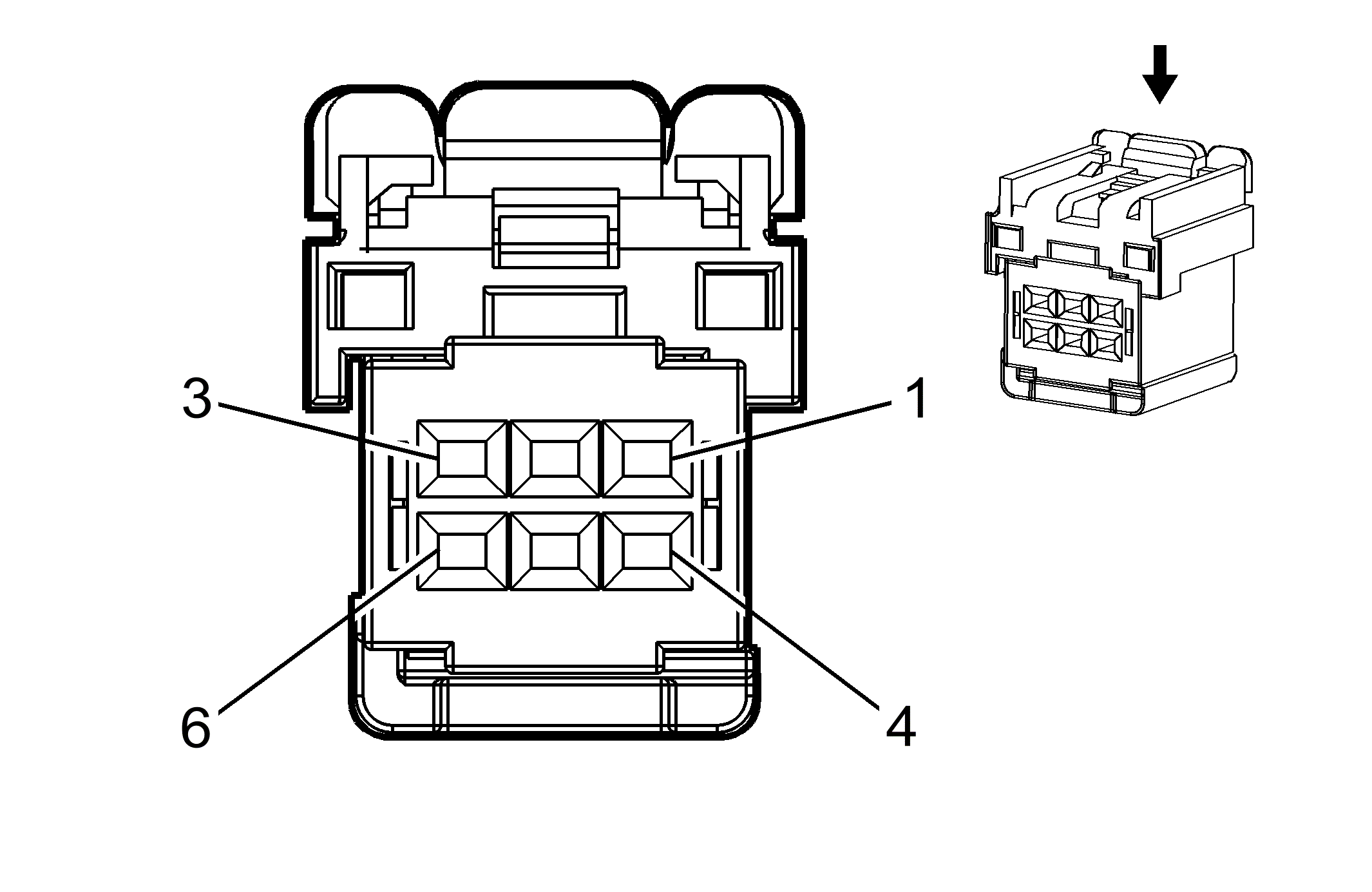

S34 HVAC Controls Switch Assembly Connector End View
WARNING: This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.
S34 HVAC Controls Switch Assembly
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| 1 | 0.5 D-GN/YE | 7531 | Linear Interconnect Network Bus 9 |
| 2 | 0.75 BK | 1650 | Ground |
| 3 | 0.75 RD/YE | 240 | Battery Positive Voltage |
| 4-6 | - | - | Not Used |
Connector Part Information
|
Terminal Part Information
|
